Operator's Manual
919586 RevA 29

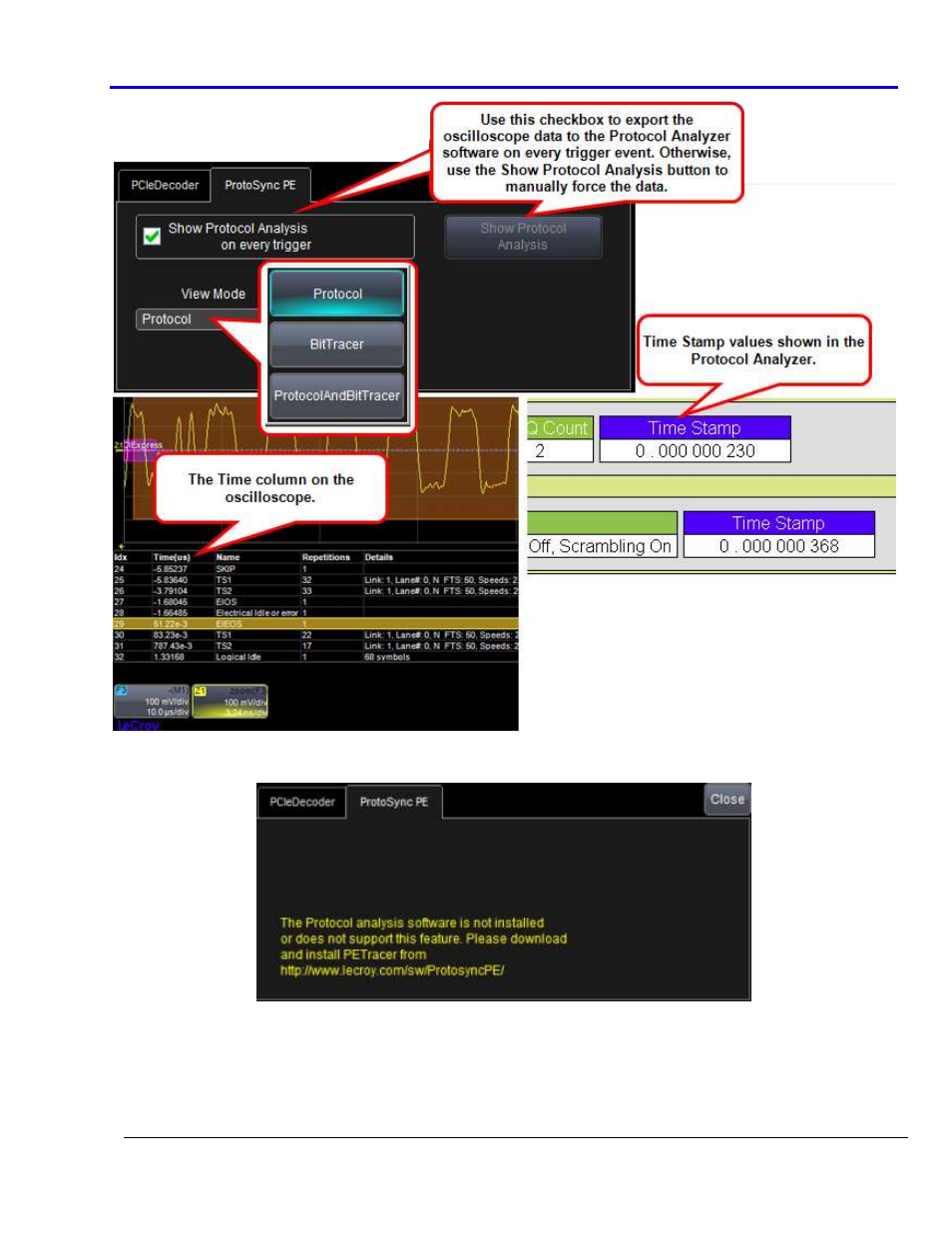

If you don't have the Protocol Analysis software installed, this particular dialog instead shows a notification
message in place of the controls used to send your oscilloscope data to the Protocol Analyzer.
PLEASE NOTE THE FOLLOWING:

In addition to the CATC Protocol View, the Protocol Analyzer also has Link and Split views for more a
more convenient display. The Link View is not to be confused with the Link Layer which is part of the
PCIEbus D decode option and decodes everything up to (but not including) the transaction layer packet
information.
