Serial Data Debug Solutions
28
919586 RevA
O
SCILLOSCOPE
T
ABLE
D
ISPLAY
P
ROTO
S
YNC
P
ACKET
V
IEW

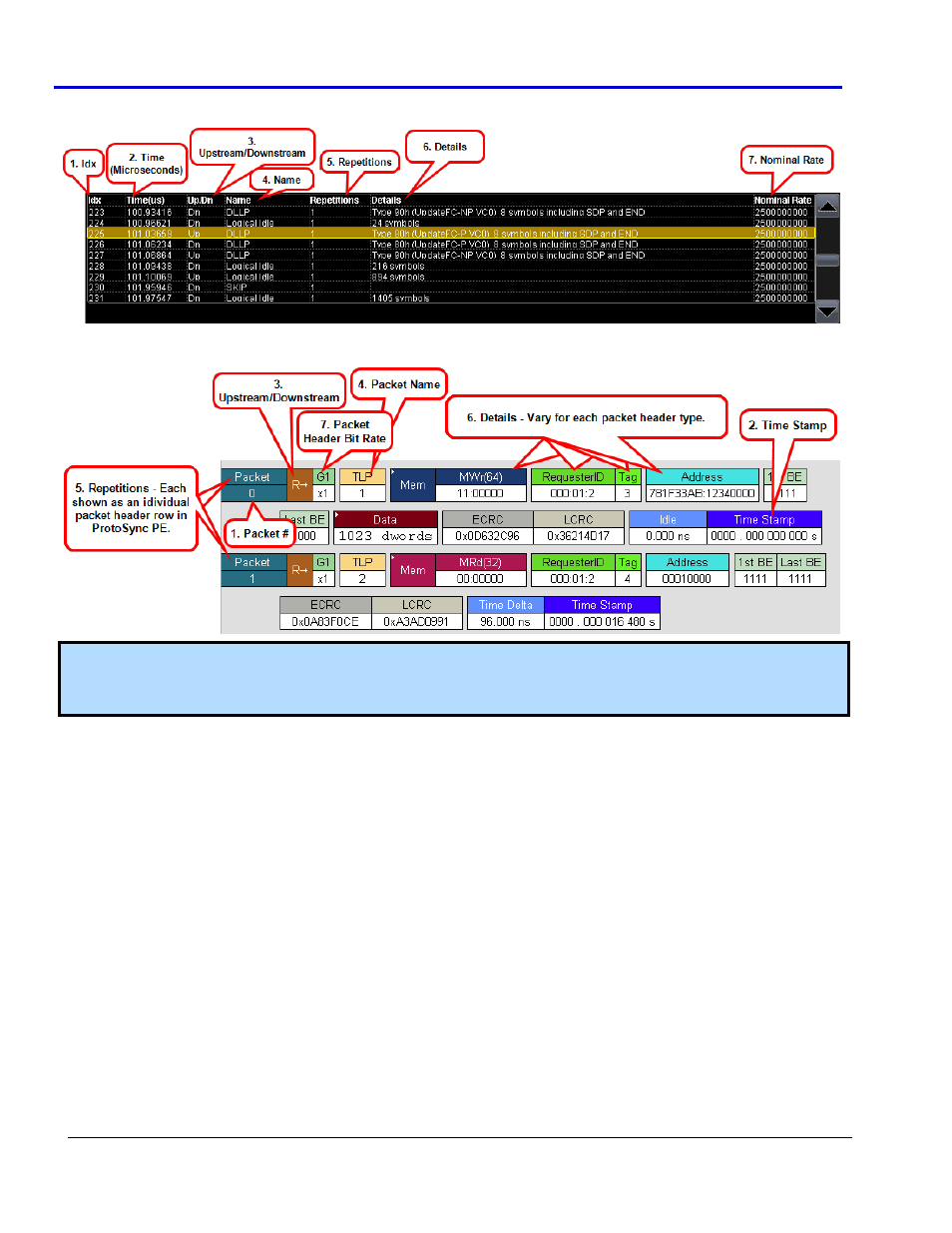

Note: Regarding Time (oscilloscope) and Time Stamp (protocol analyzer), Unless your oscilloscope trigger
delay is set to be the exact left edge of the display grid, the Protocol Analyzer Time Stamp values do not
correlate with the instrument.
