Serial Data Debug Solutions
158 919586 RevA
Make selections as desired. You can also set a BitRate Tolerance percentage or touch the Default button to load
the preset selections. Touch the Close button when finished.
See Protocol Results Table (on page 19) for general information about the Table display.
After setting up your FibreChannel decode and checking the View Table checkbox, the table should be shown on
the display grid.
Note: After touching the View Table checkbox, touch the Close button at the upper-right portion of the
Decode Setup dialog to maximize the display grid area.
E XPORTING T ABLE D ATA
You can also Exported your table data as a .CSV file. Touch the Export Table button on the Decode Setup...
dialog and follow the procedure explained in Using The D Supported Protocol Toolsets (on page 14).
SAS Decode Search

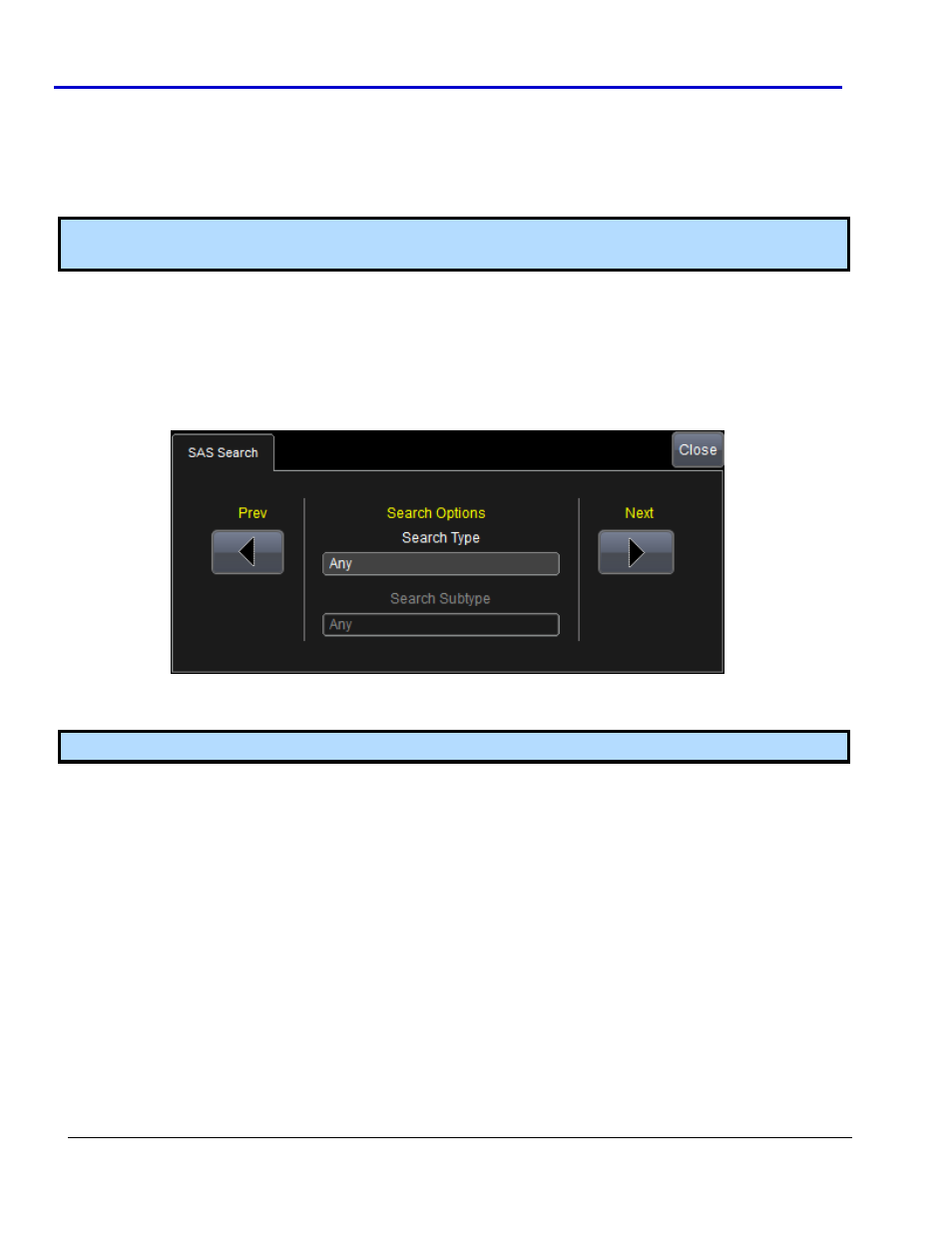

After clicking the Search button from the Decode dialog, the SAS Search right-hand dialog appears when the
Zoom dialog is shown.
Use the Prev and Next buttons to advance through occurrences. Use the Type and Subtype controls to refine
your search.
Note: The Type control selection determines which Subtypes are made available.
SAS Type selections include Any, SSP Frame, STP Frame, SMP Frame, Addr Frame, Grouped Primitives, Idle
Data, Protocol Error, OOB, Speed Negotiation, Electrical Idle, and Unknown. The following Subtypes are
available for each Type:

Any - No Subtype selection is available.

SSP Frame - With the SSP Frame Type selected, Any, DATAframe, XFER_RDYframe, COMMANDframe,
RESPONSEframe, TASKframe, Reserved, Vendorspecific 0xF0, Vendorspecific 0xF1, Vendorspecific 0xF2,
Vendorspecific 0xF3, Vendorspecific 0xF4, Vendorspecific 0xF5, Vendorspecific 0xF6, Vendorspecific
0xF7, Vendorspecific 0xF8, Vendorspecific 0xF9, Vendorspecific 0xFA, Vendorspecific 0xFB,
Vendorspecific 0xFC, Vendorspecific 0xFD, Vendorspecific 0xFE, and Vendorspecific 0xFF Subtypes are
available.

STP Frame - With the STP Frame Type selected, Any, REG_H2D, REG_D2H, SDB, DMA_ACTIVATE_D2H,
DMA_SETUP, BIST_ACTIVATE, PIO_SETUP, DATA, Reserved 0xA6, Reserved 0xB8, Reserved 0xBF,
Reserved 0xD9, Vendor_Specific 0xC7, and Vendor_Specific 0xD4 Subtypes are available.

SMP Frame - With the SMP Frame Type selected, Any, SMPREQUEST, SMPRESPONSE, and Reserved
Subtypes are available.

Addr Frame - With the Addr Frame Type selected, Any, IDENTIFY, and OPEN Subtypes are available.
