Serial Data Debug Solutions
172 919586 RevA
Automatic Zoom by Table Row Selection
Continuing from the previous section, select the Idx 31 row on the table and Z1 automatically zooms to the
width of the grid display. On the Z1 trace, the very small piece of the rectangle on the left is labeled TS2, and it is
also showing as the previous line in the table (Idx 30). The very small piece of the rectangle on the right is
labeled SKIP, and it is also showing as the next line in the table (Idx 32).
Tip: After touching the View Table checkbox, touch the Close button at the upper-right portion of the Decode
Setup dialog to maximize the table and display grid areas.

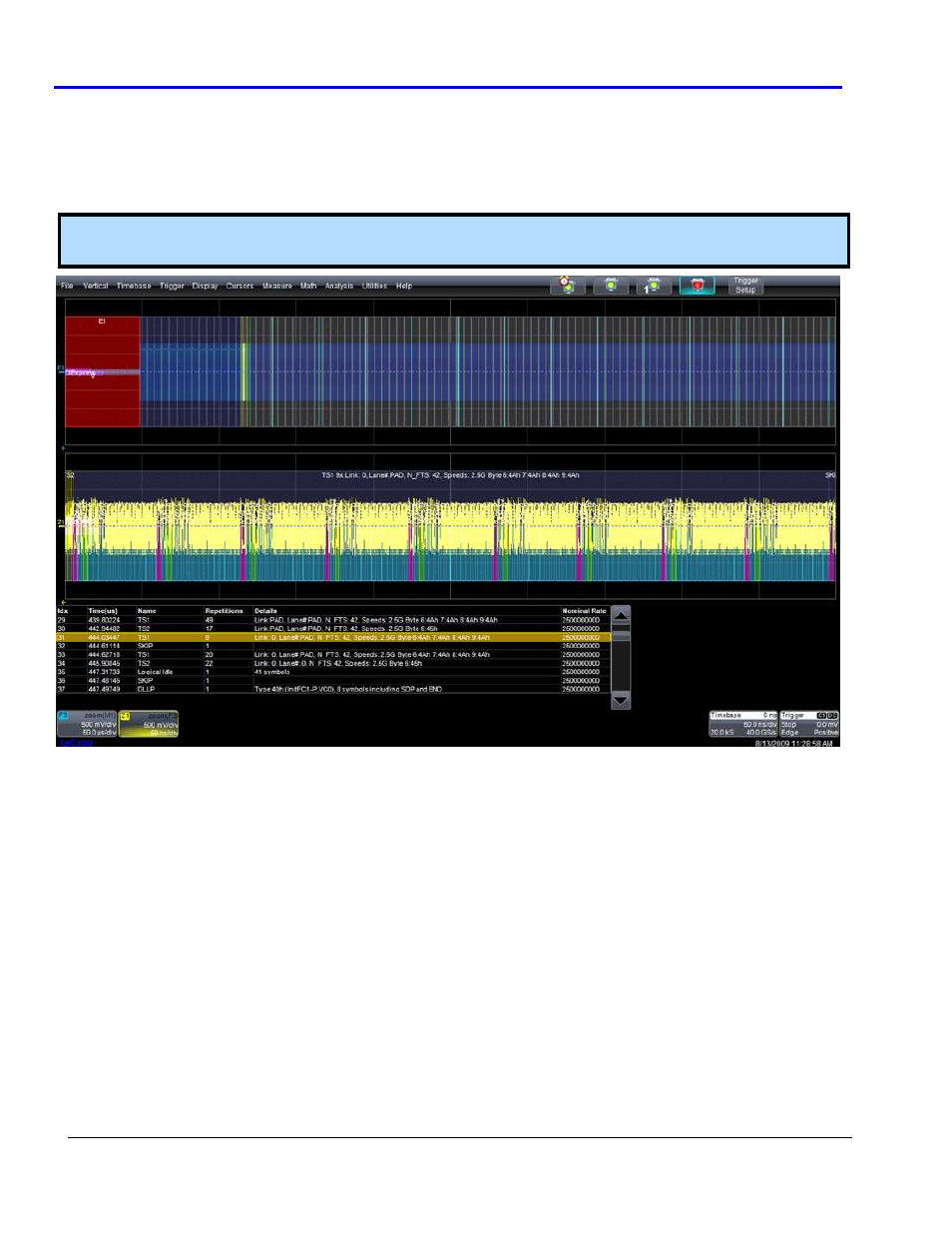

PCI Express Decode on F3, and 8b/10b Decode on Z1 showing nine identical TS1.
