Serial Data Debug Solutions
186 919586 RevA
Make selections as desired. You can also set a BitRate Tolerance percentage or touch the Default button to load
the preset selections. Touch the Close button when finished.
See Protocol Results Table (on page 19) for general information about the Table display.
After setting up your USB2 decode and checking the View Table checkbox, the table should be shown on the
display grid.
Note: After touching the View Table checkbox, touch the Close button at the upper-right portion of the
Decode Setup dialog to maximize the display grid area.
E XPORTING T ABLE D ATA
You can also Exported your table data as a .CSV file. Touch the Export Table button on the Decode Setup...
dialog and follow the procedure explained in Using The D Supported Protocol Toolsets (on page 14).

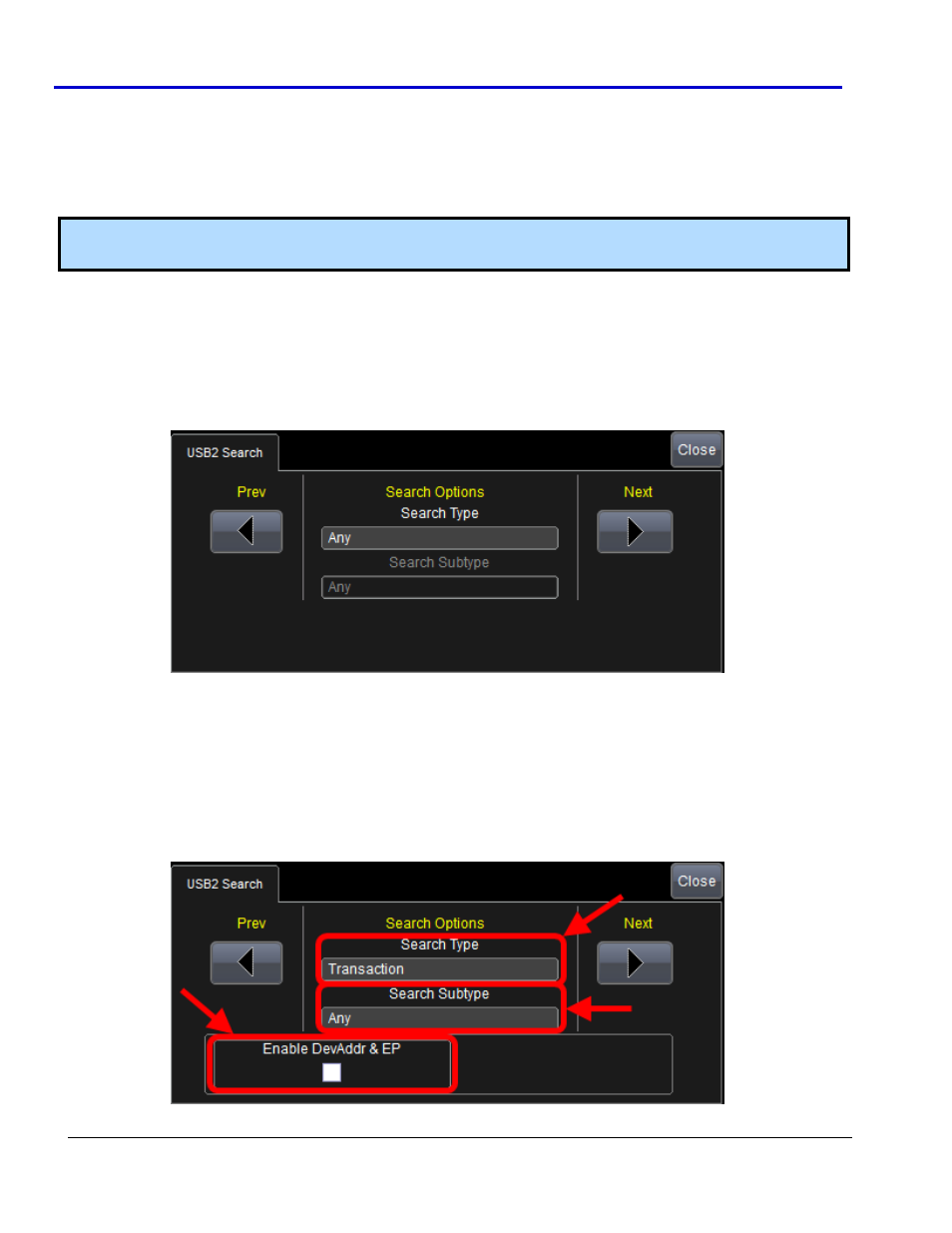

USB2 Decode Search
After clicking the Search button from the Decode dialog, the Zoom dialog is shown along with the USB2 Search
right-hand dialog.
N AVIGATION F IELDS
A Prev and Next button is on either side of the dialog to navigate through each search result/occurrence.
S EARCH O PTIONS F IELDS - T YPE AND S UBTYPE
Search Options fields in the center of the dialog allow you to restrict your search based on Type and Subtype
selections. USB2 Type selections include any, Event, Packet, Transaction, and Protocol Error.
When Transaction is selected as your Search Option, the Enable DevAddr & EP checkbox is made available for
use.
