Additional Dialog Controls Based on Packet Category Selections

With the Any Sync category selected, no additional controls are provided on the dialog.


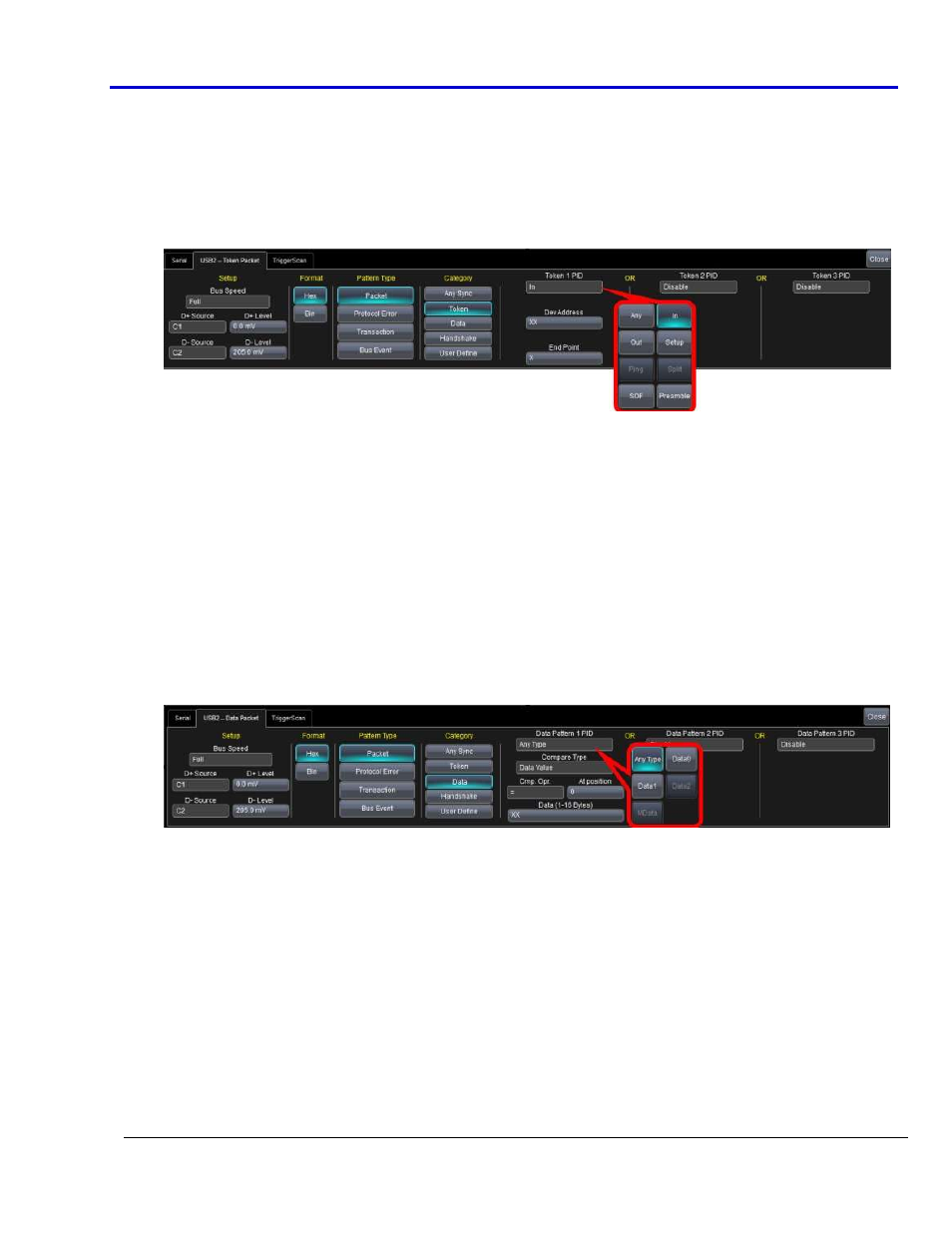

With the Token category selected, up to three Token PID controls may be used together (using OR
operator logic) unless Any is selected on the first PID, disabling the other two. Token PID controls (when
enabled) can be set to Any, In, Out, Setup, Ping, Split, SOF , or Preamble.
PLEASE NOTE THE FOLLOWING:

Token PID values are enabled or disabled based on Bus Speed selection.

When Any and Preamble Token PID values are chosen, no additional controls are provided for that
specific Token PID.

When In, Out, Setup, and Ping Token PID values are chosen, additional controls for DevAddress
and End Point are provided for that specific Token PID.

When the Split Token PID value is chosen, additional controls for Hub Address, S, SC, E, Port, and
ET are provided for that specific Token PID.

When the SOF Token PID value is chosen, a Frame Number control is provided for that specific
Token PID.

With the Data category selected, up to three Data Pattern PID controls may be used together (using OR
operator logic) unless Any Type is selected on the first PID, disabling the other two. Data Pattern PID
controls (when enabled) can be set to Any Type, Data0, Data1, Data2, or MData.
PLEASE NOTE THE FOLLOWING:

Data Pattern PID values are enabled or disabled based on Bus Speed selection.

Compare Type (select Data Value or Data Length), Compare Operator (select equal or unequal), At
position, and Data (1-16 Bytes) (in Hexadecimal or Binary based on selection from step 2
previously shown) controls are provided for each Data Pattern PID.

With the Handshake category selected, Handshake Type control buttons are available for Any Type, ACK,
NAK, STALL, NYET, and Error on the dialog.

With the User Define category selected, a Data (1-16 Bytes) control is provided for entering a specific
value in Hexadecimal or Binary (based on selection from step 2 previously shown).
