Serial Data Debug Solutions
148 919586 RevA
MIPI M-PHY Decode Search

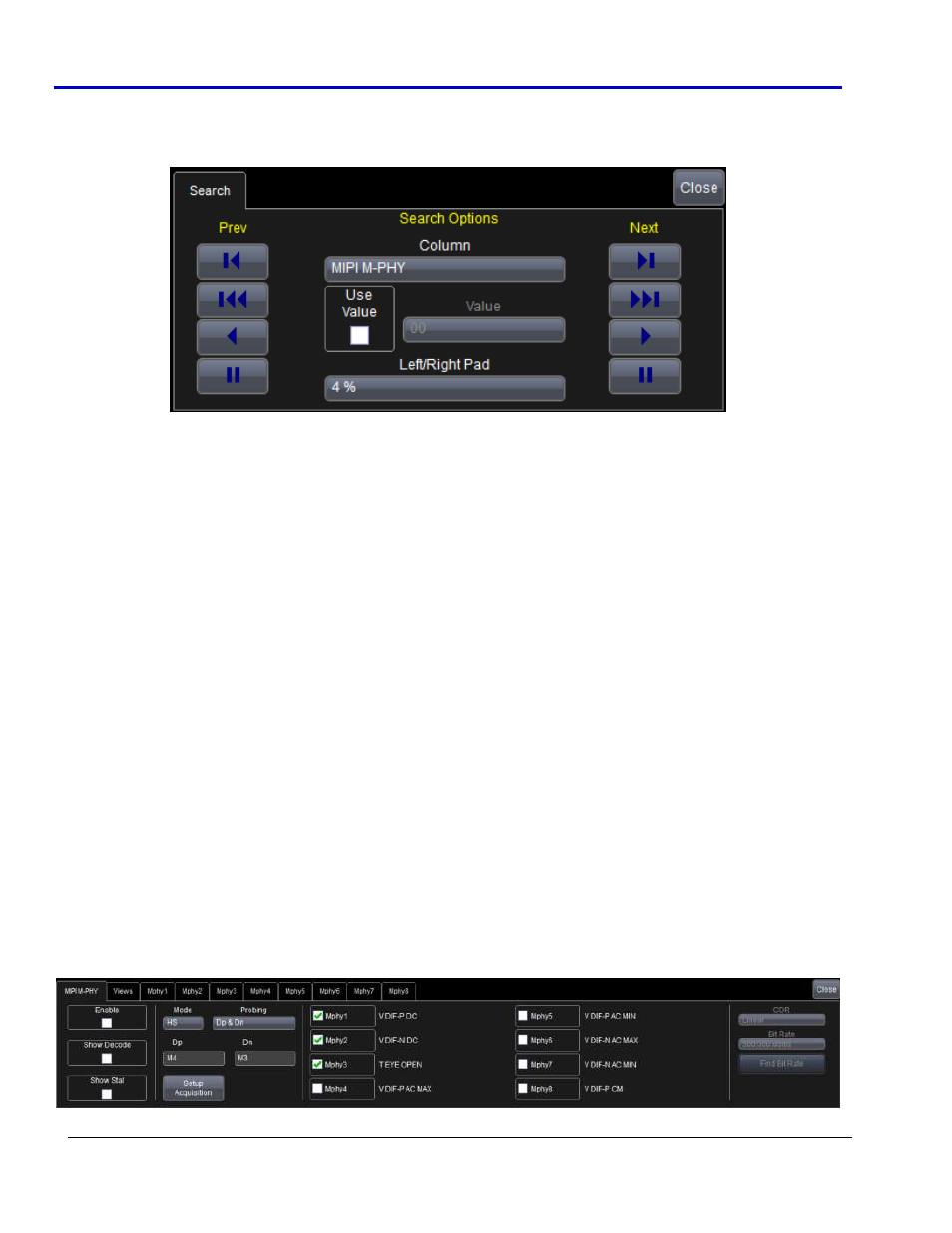

After clicking the Search button from the Decode dialog, the Zoom dialog is shown along with the M-PHY Search
right-hand dialog.
N AVIGATION F IELDS
On either side of the dialog there are four Prev and Next buttons for navigating through each occurrence, jump
to the last or first occurrence, play in either direction, and pause.
S EARCH O PTIONS F IELDS
Search Options fields in the center of the dialog allow you to restrict your search based on parameter values for
Column, Left/Right Pad, and Value. Value may be included or excluded from the search parameters using the
Use Value checkbox. Provide a percentage value in the Left/Right Pad field if desired.

PREPARE

SYNC

CONTROLS

LineState

Payload

Data - Bits 29 - 11.

TAIL-OF-BURST

Bit Rate/Msg

Status

Attributes
MIPI M-PHY Physical Layer Measurement Parameters
MIPI M-PHY P HYSICAL L AYER M EASUREMENT P ARAMETERS
MIPI M-PHY physical layer measurements are configured on a separate dialog accessed from Analysis → MIPI
M-PHY on the menu bar.
The MIPI M-PHY Dialog
The MIPI M-PHY dialog is shown.
