Serial Data Debug Solutions
102 919586 RevA
Make selections as desired. You can also set a BitRate Tolerance percentage or touch the Default button to load
the preset selections. Touch the Close button when finished.
See Protocol Results Table (on page 19) for general information about the Table display.
After setting up your ARINC 429 decode and checking the View Table checkbox, the table should be shown on
the display grid.
Note: After touching the View Table checkbox, touch the Close button at the upper-right portion of the
Decode Setup dialog to maximize the display grid area.
E XPORTING T ABLE D ATA
You can also Exported your table data as a .CSV file. Touch the Export Table button on the Decode Setup...
dialog and follow the procedure explained in Accessing The D and TD Supported Protocol Toolsets (on page 13).
ARINC 429 Decode Search

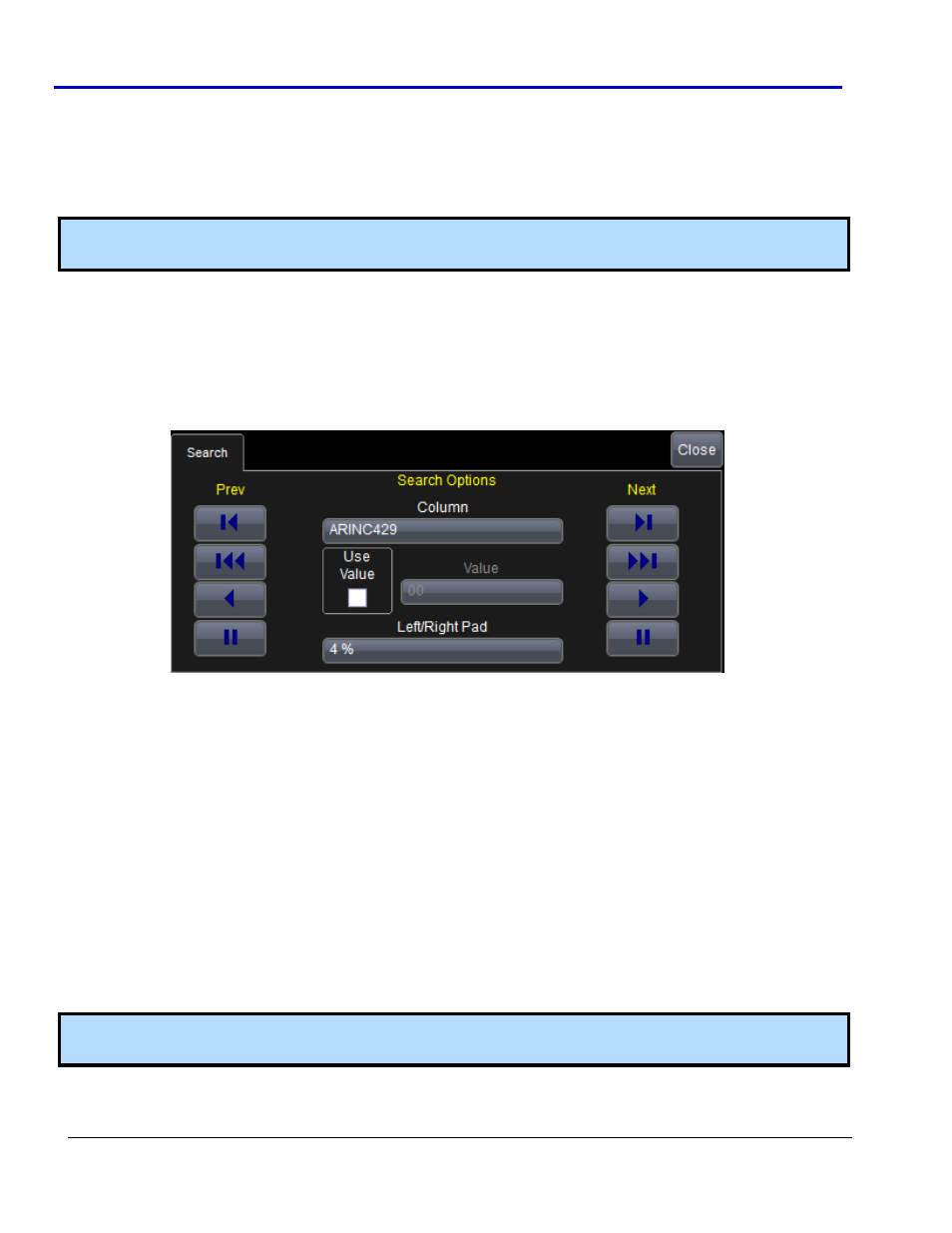

After clicking the Search button from the Decode dialog, the Zoom dialog is shown along with the ARINC 429
Search right-hand dialog.
N AVIGATION F IELDS
On either side of the dialog there are four Prev and Next buttons for navigating through each occurrence, jump
to the last or first occurrence, play in either direction, and pause.
S EARCH O PTIONS C ONTROLS
The Search Options controls in the center of the dialog allow you to restrict your search based on parameter
values for Column, Left/Right Pad, and Value. Value may be included or excluded from the search parameters
using the Use Value checkbox. Provide a percentage value in the Left/Right Pad control if desired.
Column control values are available for your searches on ARINC429, Time, OctalDigits, Label, SDI, Data, SSM,
Parity, Msg, Symbols, Bits/Resolution, Pad, Status, and Attributes.
Using the MIL-STD-1553 Option
Using the MIL-STD-1553 Option Overview
The MIL-STD-1553 option extracts serial data information for Transfer, Word, Error, and Timing messages in
your oscilloscope waveforms.
Note: Ask your local LeCroy representative for more information about any Serial Data Debug Solution
Protocols or Toolkits using the Contact LeCroy for Support (on page 199) topic.
