Serial Data Debug Solutions
108 919586 RevA
Sub-Types, Setup Format, and Right-Hand Dialogs
T RANSFER S UB -T YPES , S ETUP F ORMAT , AND R IGHT -H AND D IALOGS
4. Setup Format
Note: When Transfer and Word Types are selected, the Setup Format section is shown in the area on label 4
of the screen-shot in the MIL-STD-1553 Trigger Setup Detail (on page 107) topic.
Select from either Binary or Hexadecimal (Hex) formats for your values entered on sub-type right-hand dialogs.

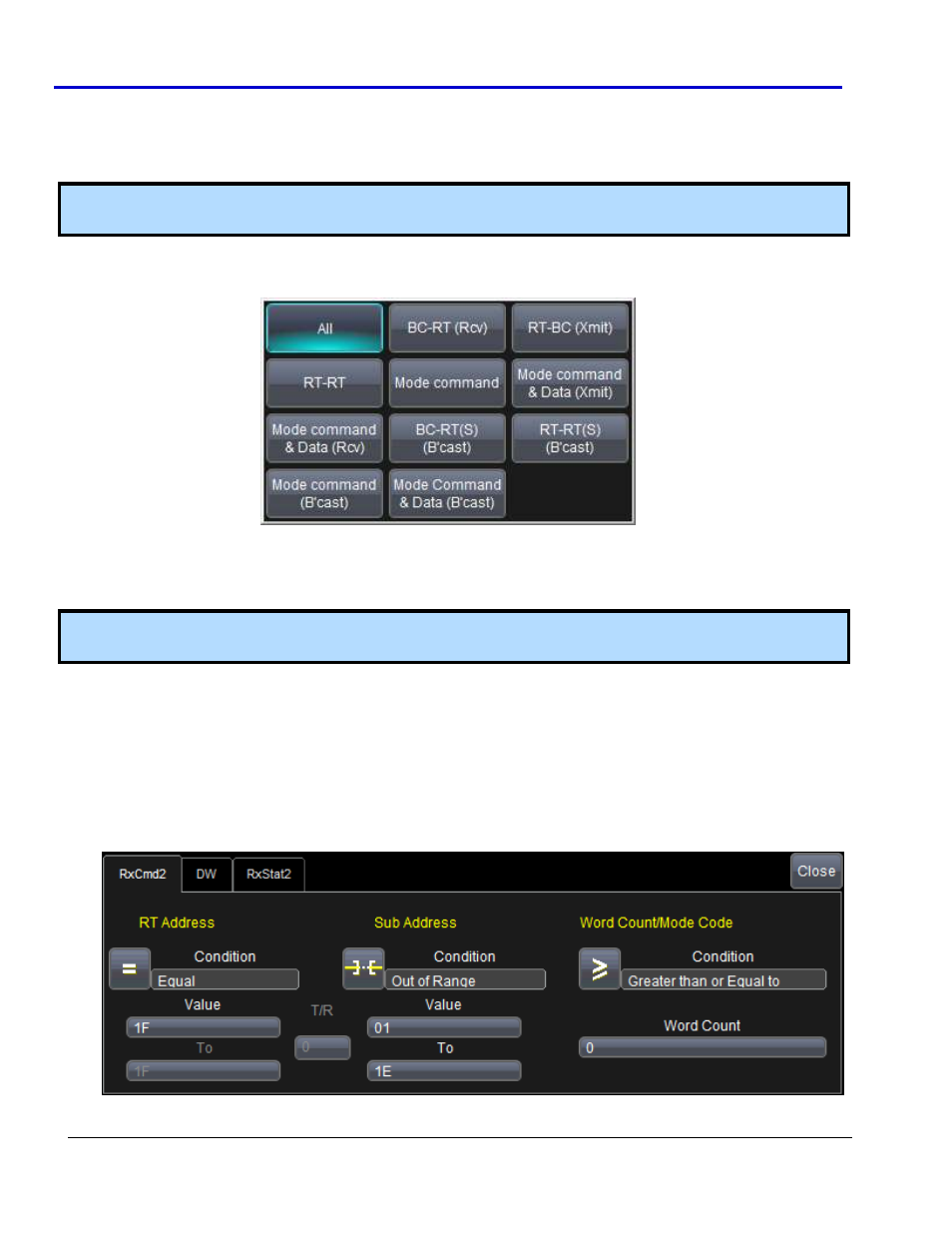

When the Transfer Type is selected on the Trigger Condition dialog, the following 11 sub-types are available.
5. Transfer Sub-Type Right-Hand Dialogs
When any sub-types other than All is selected, additional right-hand dialogs are shown on the Trigger Condition
dialog.
Note: Right-hand dialogs are located in the area shown on label 5 of the screen-shot in the MIL-STD-1553
Trigger Setup Detail (on page 107) topic.
BC-RT (Rcv) Sub-Type and Right-Hand Dialogs
When the BC-RT (Rcv) sub-type is selected, the RxCmd2, DW, and RxStat2 right-hand dialogs are made
available.

RxCmd2 Right-Hand Dialog - Provide values for the RT and Sub Address fields complete with Condition,
Value, To (for range conditions), and T/R controls. Word Count/Mode Code fields include Condition and
Word Count (amount) controls.
