Serial Data Debug Solutions

176

919586 RevA

SATA Decode Setup Detail

For general information about using controls shown on the main Serial Decode dialog, refer to Accessing The D
and TD Supported Protocol Toolsets
(on page 13).

SATAD

ECODER AND

E

XPORTER

R

IGHT

-H

AND

D

IALOGS

Access the Serial Decode dialog by touching Analysis → Serial Decode on the menu bar.

Touch the corresponding Setup... button for your decode. The Decode Setup... along with the SATADecoder
right-hand dialog is shown.

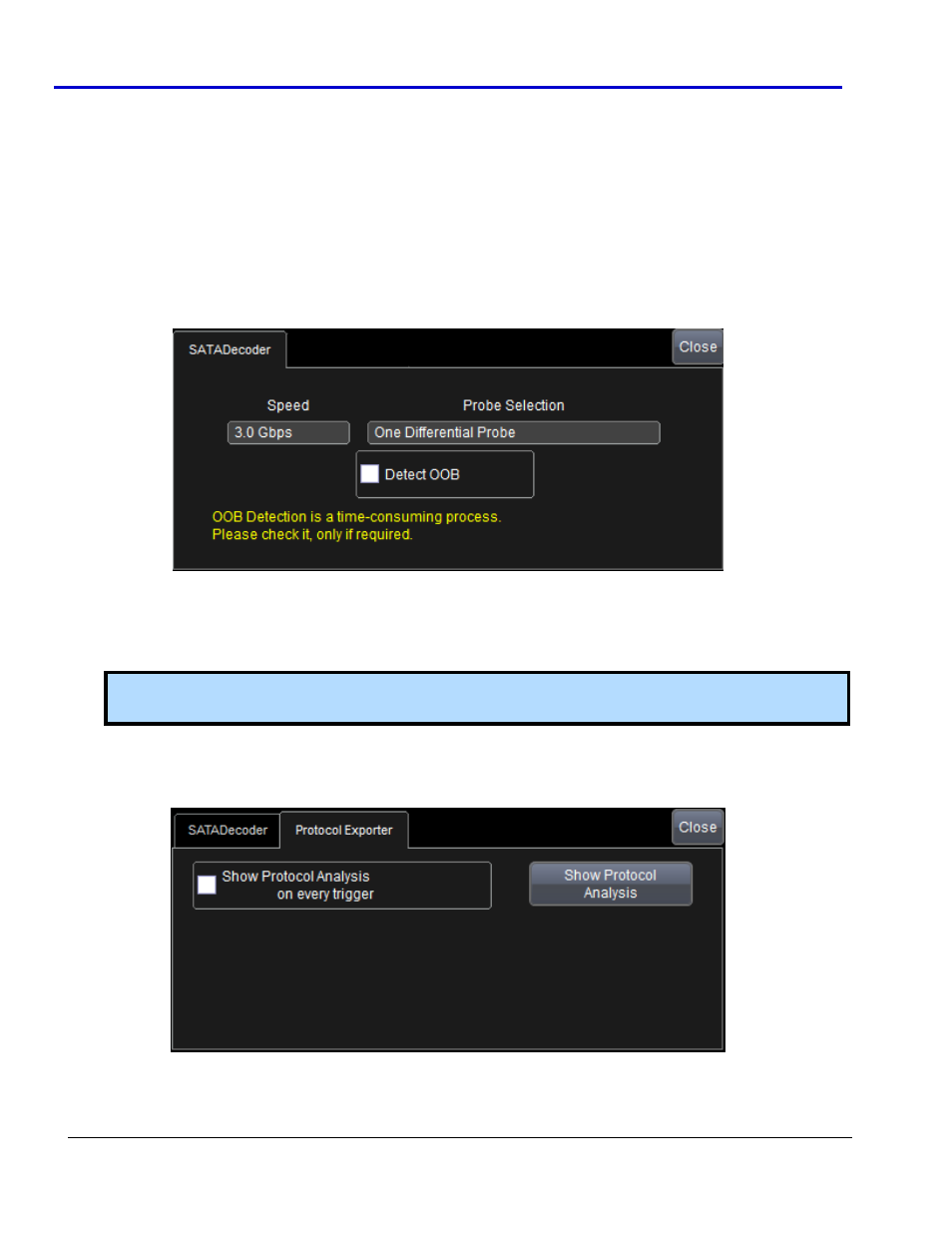

SATADecoder Right-Hand Dialog

The SATADecoder right-hand dialog provides detailed controls and setup conditions as follows:

Select a Speed value from 1.5, 3.0, and 6.0 Gbps choices.

Configure the Probe Selection control based on whether you're using One Differential Probe or Two
Single Ended Probes
.

Mark the Detect OOB checkbox as desired.

Note: As indicated on the dialog, since OOB detection is time consuming, it's best to only use if truly
necessary.

SATA Protocol Exporter Right-Hand Dialog

The SATA Protocol Exporter right-hand dialog provides detailed controls for synchronizing and sending your
data to the Protocol Analyzer.
