Operator's Manual
919586 RevA 39

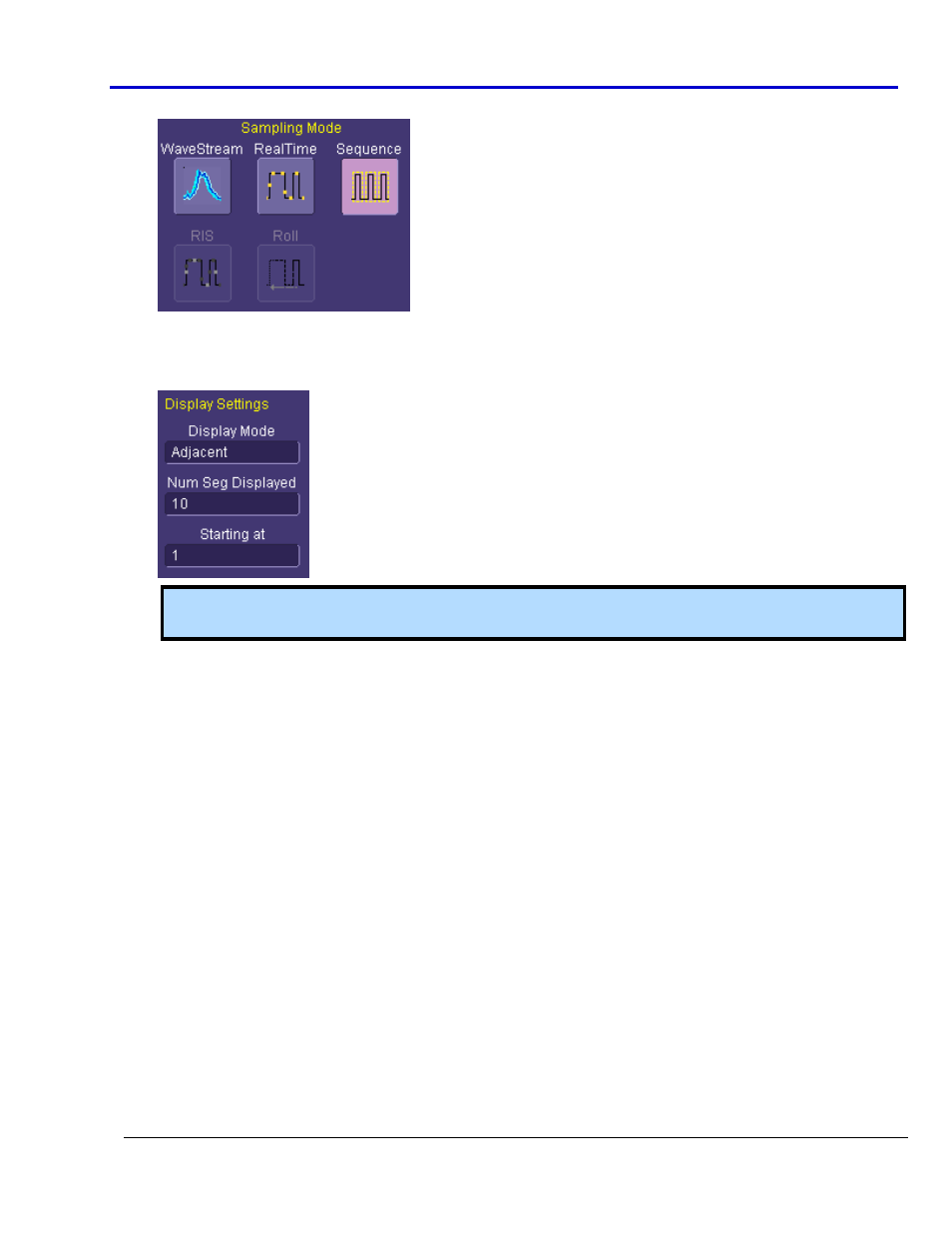

2. In the Sampling Mode area, select Sequence Mode.
Touch the tab labeled Sequence that is now shown next to the Timebase tab.
3. On the Sequence tab, select the Display Mode and select the Number of Segments Displayed at one
time.
Note: If you have acquired more segments than you can display at one time, use the Starting at field to
specify a segment at which to begin the display.
Serial Trigger Setup for Specific Events
At this point, the Serial Trigger is now set up to capture the desired event. The following sections provide event-
based setup explanations.

You can trigger on a specific address or data value and capture long pre-trigger time to determine what
precedes the message.
Our example here uses an I 2 C Start trigger. Start the sequence mode acquisition by pressing the front
panel SINGLE trigger button. Each time the trigger condition is met, the TRIG’D light on the front panel
flashes.
