Teledyne LeCroy Serial Data Debug Solutions User Manual
Page 41
Operator's Manual
919586 RevA
41

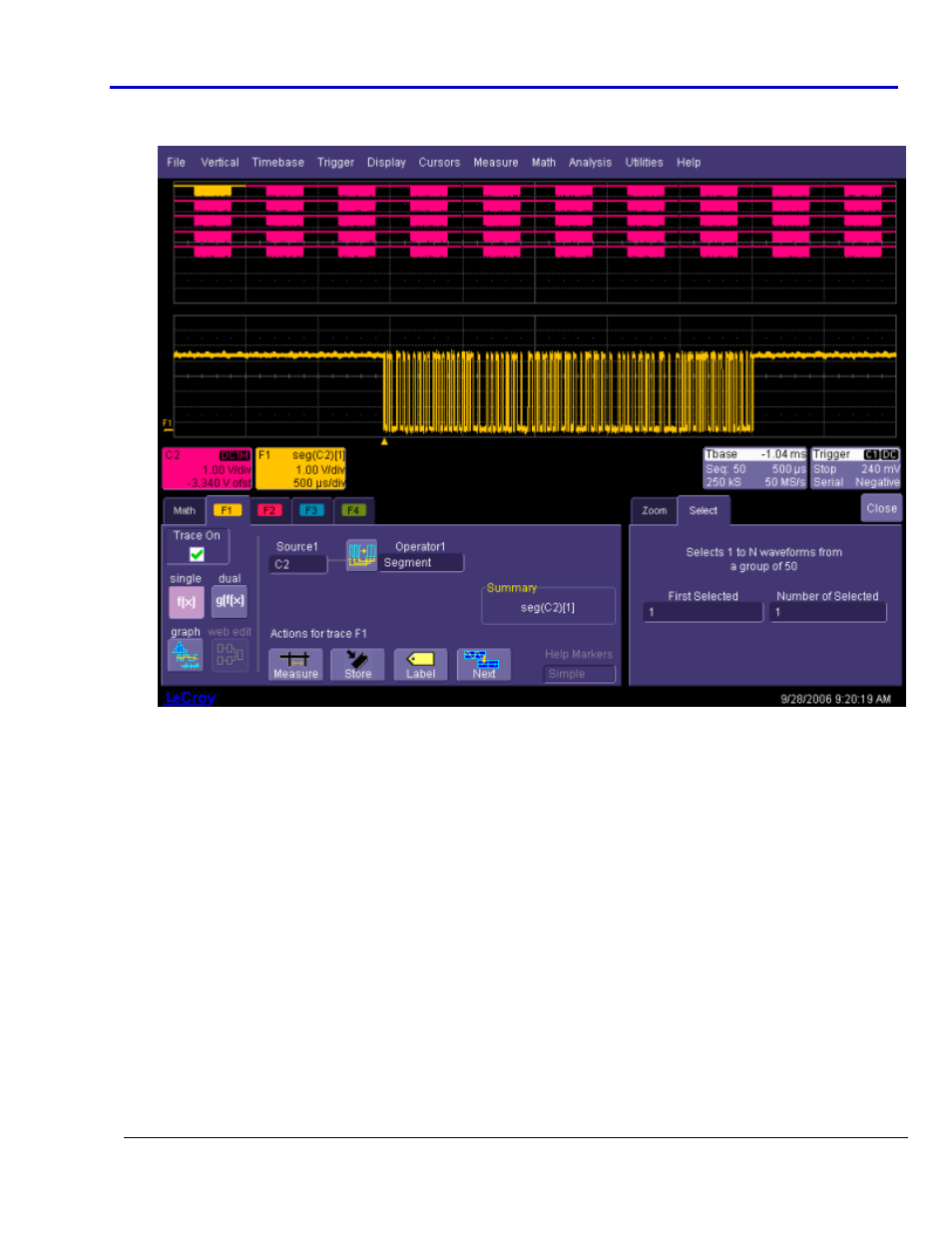

Display the trace by checking the TRACE ON checkbox. Select the segment for viewing by touching the
Select tab and selecting a segment using the pop-up keypad or the front panel Adjust knob.
You can view decoded data on the individual segment by setting up the Decode to use the Math trace as
the source for Data (in this case F4 is the Source).
