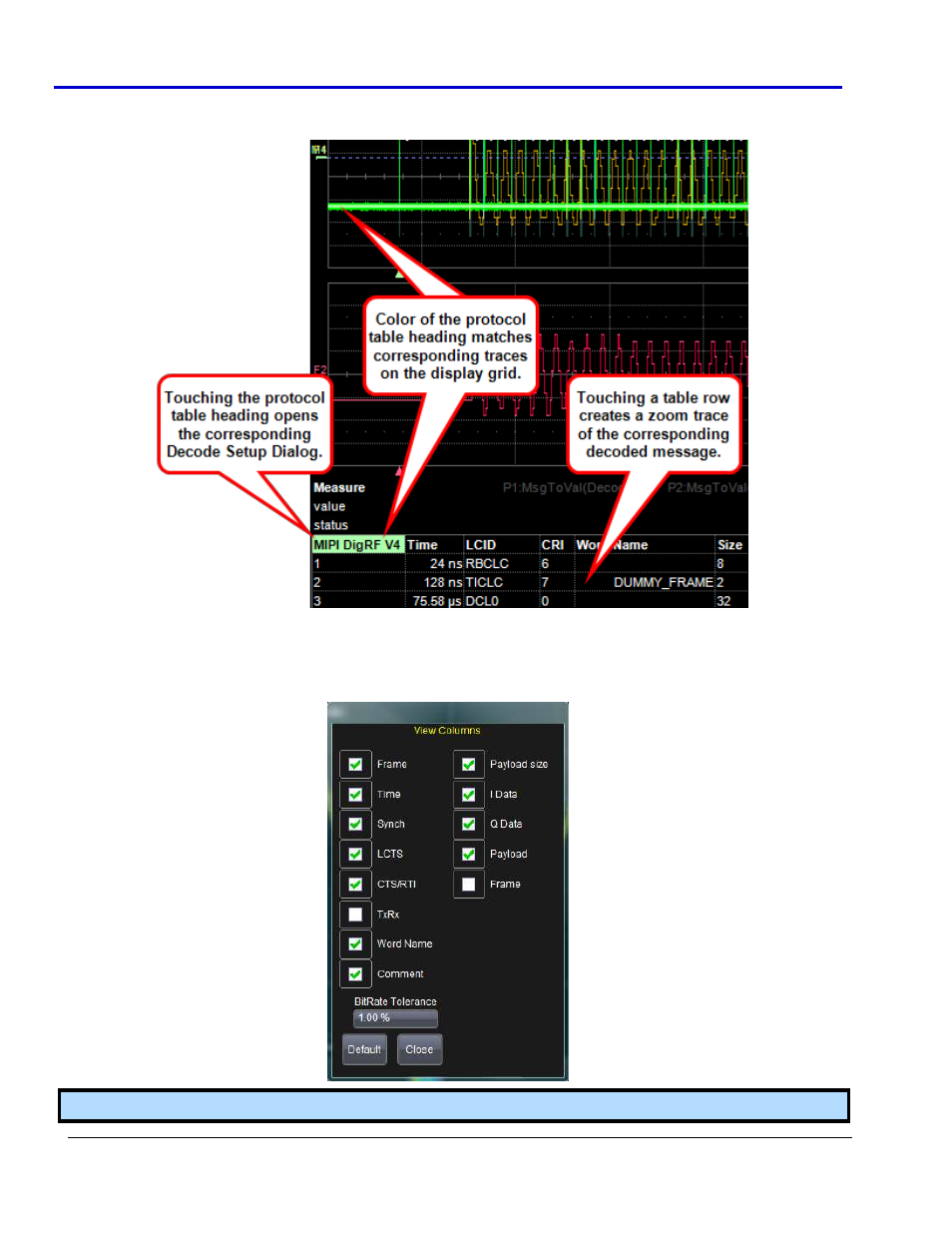

Touching this colorized, first column heading opens the Decode Setup dialog. Touching any table row creates a
zoom trace of the corresponding decoded message.
The table is only shown if the View Table checkbox is marked on the Decode Setup Dialog and decoding has
occurred on the trace. Only one protocol table can be viewed at a time. As described in the previous section, the
protocol table can be configured or exported. Touching the Configure Table button on the Decode Setup Dialog
shows the View Columns pop-up similar to the following (they vary based on protocol):
Note: See Using The D Supported Protocol Toolsets (on page 14) for more information.
