MIL-STD-1553 Decode Search

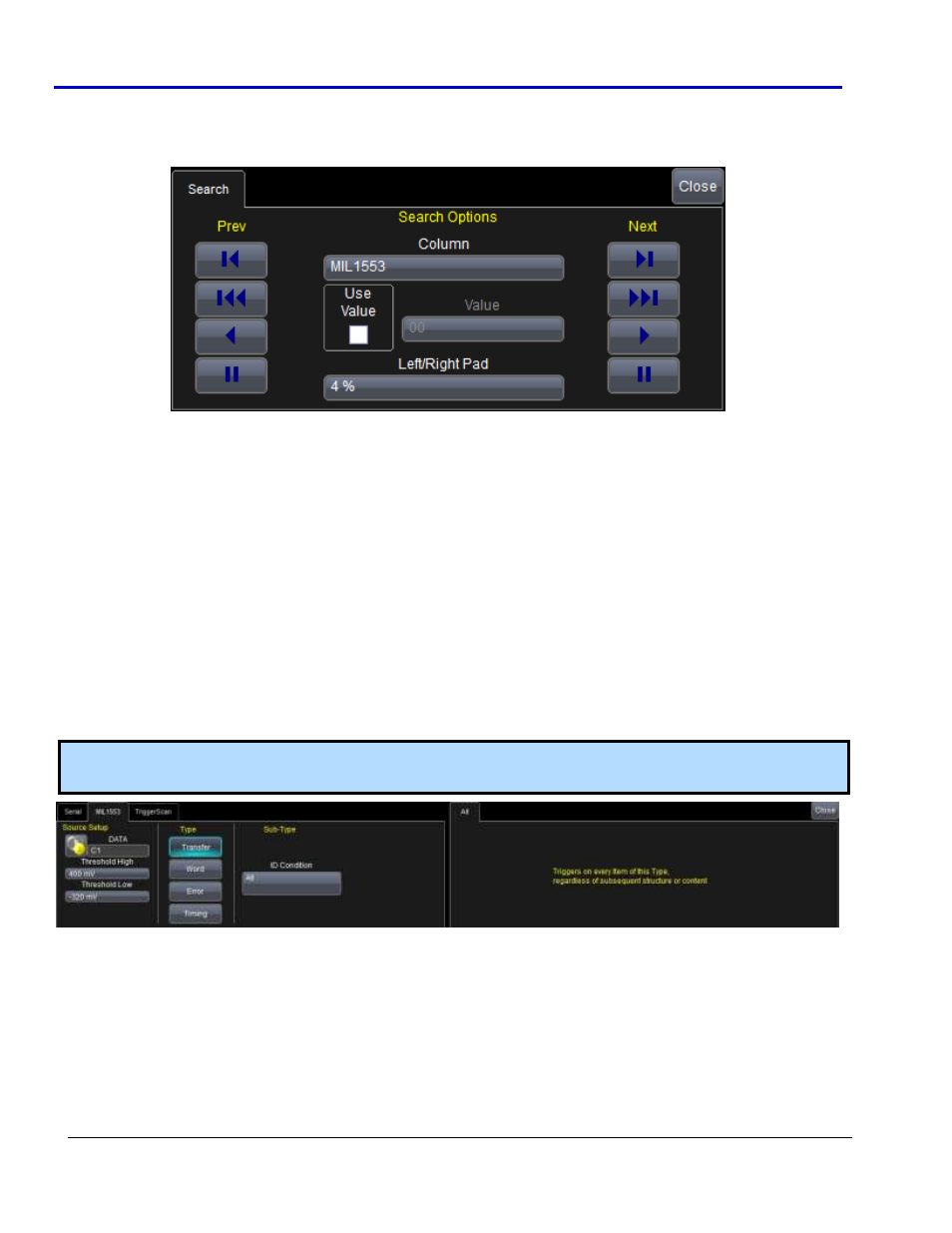

After clicking the Search button from the Decode dialog, the Zoom dialog is shown along with the MIL 1553
Search right-hand dialog.
N AVIGATION F IELDS
On either side of the dialog there are four Prev and Next buttons for navigating through each occurrence, jump
to the last or first occurrence, play in either direction, and pause.
S EARCH O PTIONS F IELDS
Search Options fields in the center of the dialog allow you to restrict your search based on parameter values for
Column, Left/Right Pad, and Value. Value may be included or excluded from the search parameters using the
Use Value checkbox. Provide a percentage value in the Left/Right Pad field if desired.
Column control values are available for your searches on MIL1553, Time, Msg, Tran, Type, Summary, Sync,
RTAddress, t/r, SubAddress, Count, ModeCode, Parity, ResponseTime, RTAdressAck, MsgErr, Instr, SRQ,
Reserved, BcastRec, Busy, SubSystFlg, DynBusAcc, TermFlg, Data, IMG, Status, and Attributes.
Creating a MIL-STD-1553 Trigger Condition
Detail on some of the setup conditions for the MIL-STD-1553 Trigger dialog, along with the right hand dialogs, is
shown in the following topics.
Note: Refer to the Using The T Supported Protocol Toolsets (on page 22) topic to correctly access the Trigger
Condition dialog specific to your desired protocol.
Make settings or provide values by touching controls (using your finger, stylus, or connected mouse). On
applicable controls, a pop-up dialog box is shown where precise entry values can be set.
