MIPI D-PHY S OURCE AND C LOCK C ONTROLS , B ASIC , AND L EVELS R IGHT -H AND D IALOGS
Access the Serial Decode dialog by touching Analysis → Serial Decode on the menu bar.
Touch the corresponding Setup... button for your decode. The Decode Setup... along with corresponding right-
hand dialogs are shown.
Decode Setup, Basic, and Level dialogs for MIPI D-PHY, MIPI CSI-2, and MIPI DSI decoders include the following
respective controls:
D-PHY Source and Clock Controls
Depending on selections made on the Decode, Data Probing, and Clock Probing controls located on the Basic
dialog, corresponding source controls are enabled/disabled for Ddiff (differential clock trace), Dp (Data positive),
Dn (Data negative), CLKp (Clock Positive), CLKn (Clock Negative).

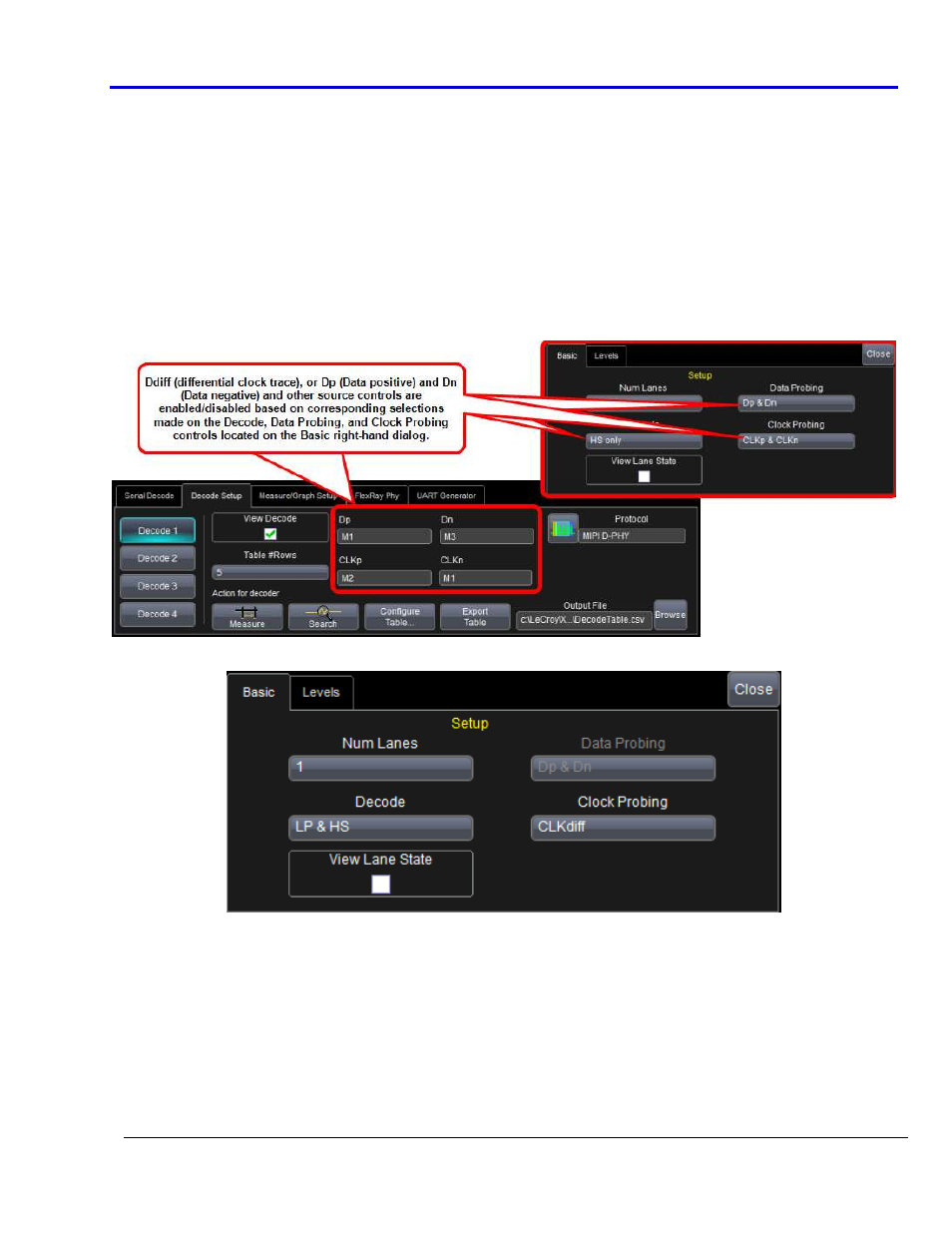

D-PHY Basic Right-Hand Dialog

Decode - Choose from LP & HS, HS only, and LP only values. Selections affect remaining fields on the
dialog as follows: When LP & HS is selected only Clock Probing is available. When HS only is selected both
Data and Clock Probing are available. When LP only is selected, neither Data or Clock Probing are
available.

Data Probing - This field is only enabled when HS only is selected from the Decode field. When the Data
Probing field is enabled, choose from Dp & Dn, Dp, Dn, and Ddiff values.

Clock Probing - This field is enabled when either LP & HS or HS only is selected from the Decode field.
When the Clock Probing field is enabled, choose from CLKp & CLKn, CLKp, CLKn, CLKdiff, and none (CDR)
values.
