Teledyne LeCroy Serial Data Debug Solutions User Manual
Page 42
Serial Data Debug Solutions
42
919586 RevA
If you wish to change the segment that is decoded, just select a new segment from the Math trace dialog
(as shown in the previous step).

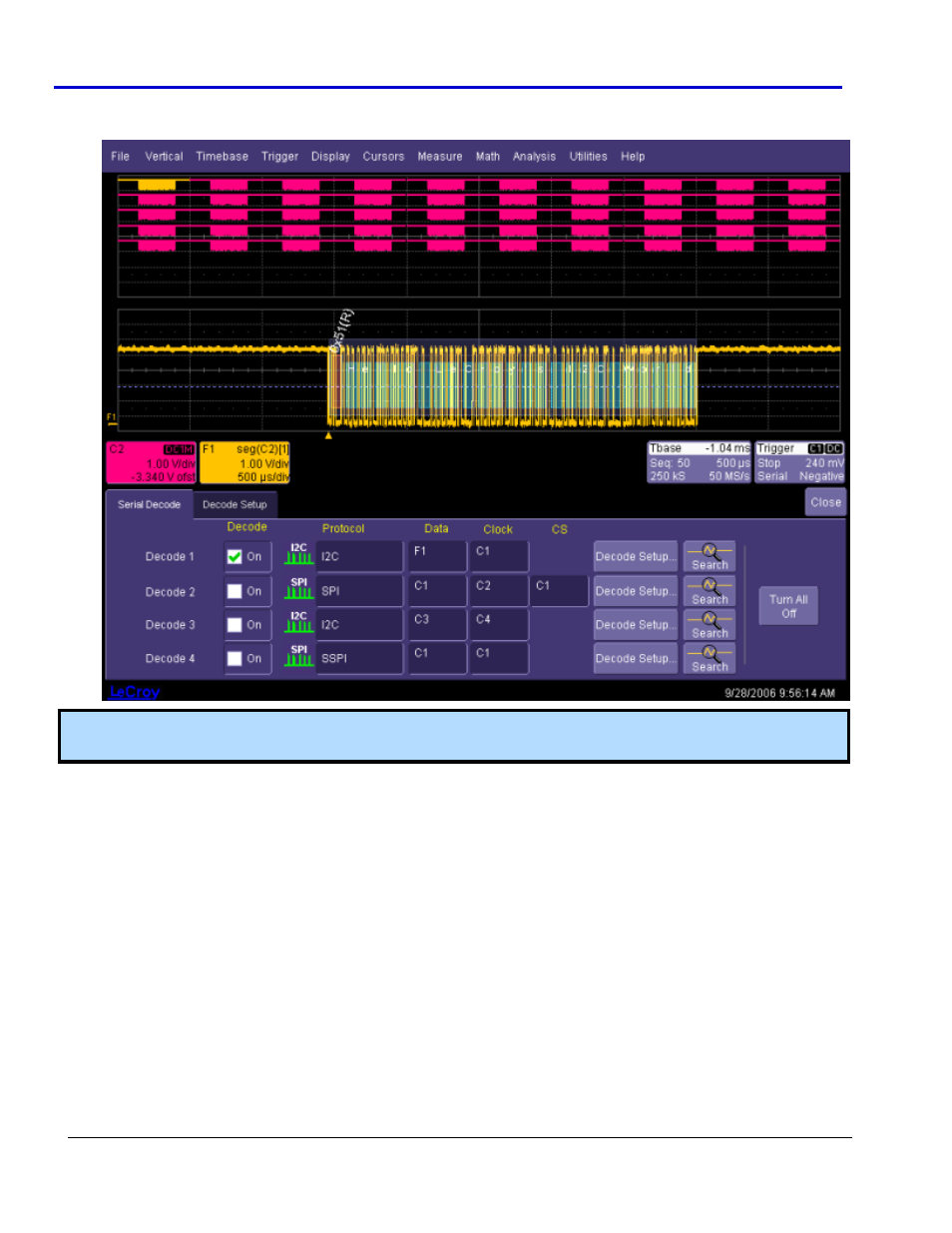

Note: Conserve display space by turning off the Channel and only select the segment you wish to view as the
following screen-shot shows.
