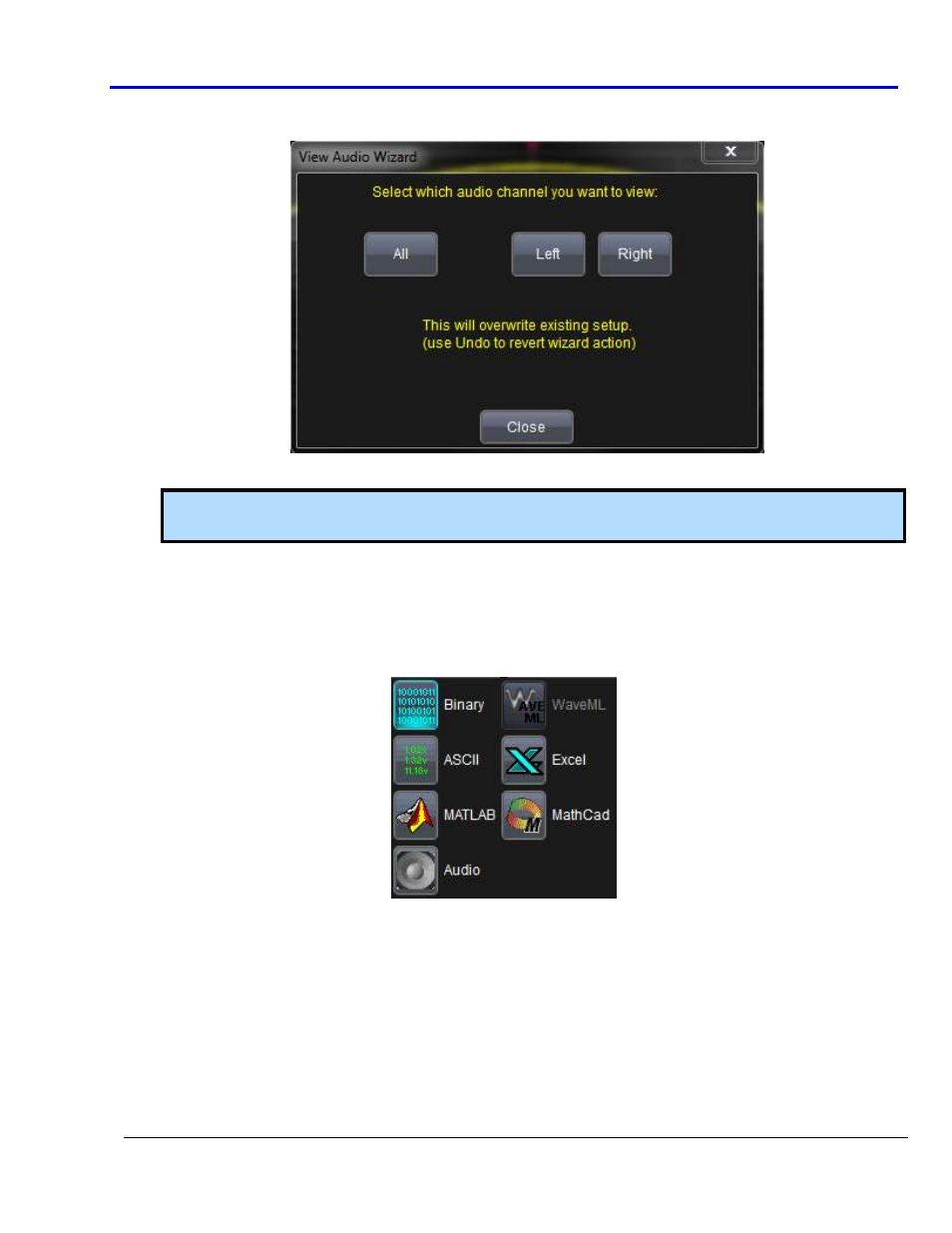

The View Audio button shows the Audio Track Wizard (as follows) which sets up Math traces for the
audio channel you wish to view on the display grid.

Click the Play Audio button and the decoded audio waveform data plays for the channel selected.
Note: Ensure external speakers or headphones are connected to your instrument before using Play
Audio.
Resuming with Decode, detailed fields and setup conditions for decode are available from Audio and Level
dialogs on the right side of the display. These dialogs are covered in the following topics.
S AVING W AVEFORMS IN THE .WAV F ILE F ORMAT
Save your waveforms into the .wav format by touching File → Save Waveform on the menu bar. Now, on the
Save Waveform dialog, touch the Data Format field and select Audio from the pop-up shown.
