Search Options fields in the center of the dialog allow you to restrict your search based on Type and Subtype
selections. USB3 Search Type selections include any, Event, Packet, Transaction, and Protocol Error. The
following Search Subtypes are available for each Search Type:
With the any Search Type selected, no additional Search Subtypes are available.
With the Event Search Type selected, the Idle, Resume, Reset, Suspend, KeepAlive, Chirp_J, Chirp_K,
Glitch, and Unknown Search Subtypes are available.
With the Packet Search Type selected, the Token Out, Token In, Setup, SOF, DATA0, Data1, Data2,
MData, ACK, NAK, Stall, NYet, Preamble, ERR, Split, Ping, and Unknown Packet Search Subtypes are
available.
With the Transaction Search Type selected, the Trans In, Trans Out, Trans Setup, Trans Ping, Trans SSplit
In, Trans SSplit Out, Trans SSplit Setup, Trans CSplit In, Trans CSplit Out, and Trans CSplit Setup Search
Subtypes are available.
With the Protocol Error Search Type selected, the CRC5 Error, CRC16 Error, Bit Stuff Error, PID and Check
Mimatch Error, and Packet Length Error Search Subtypes are available.

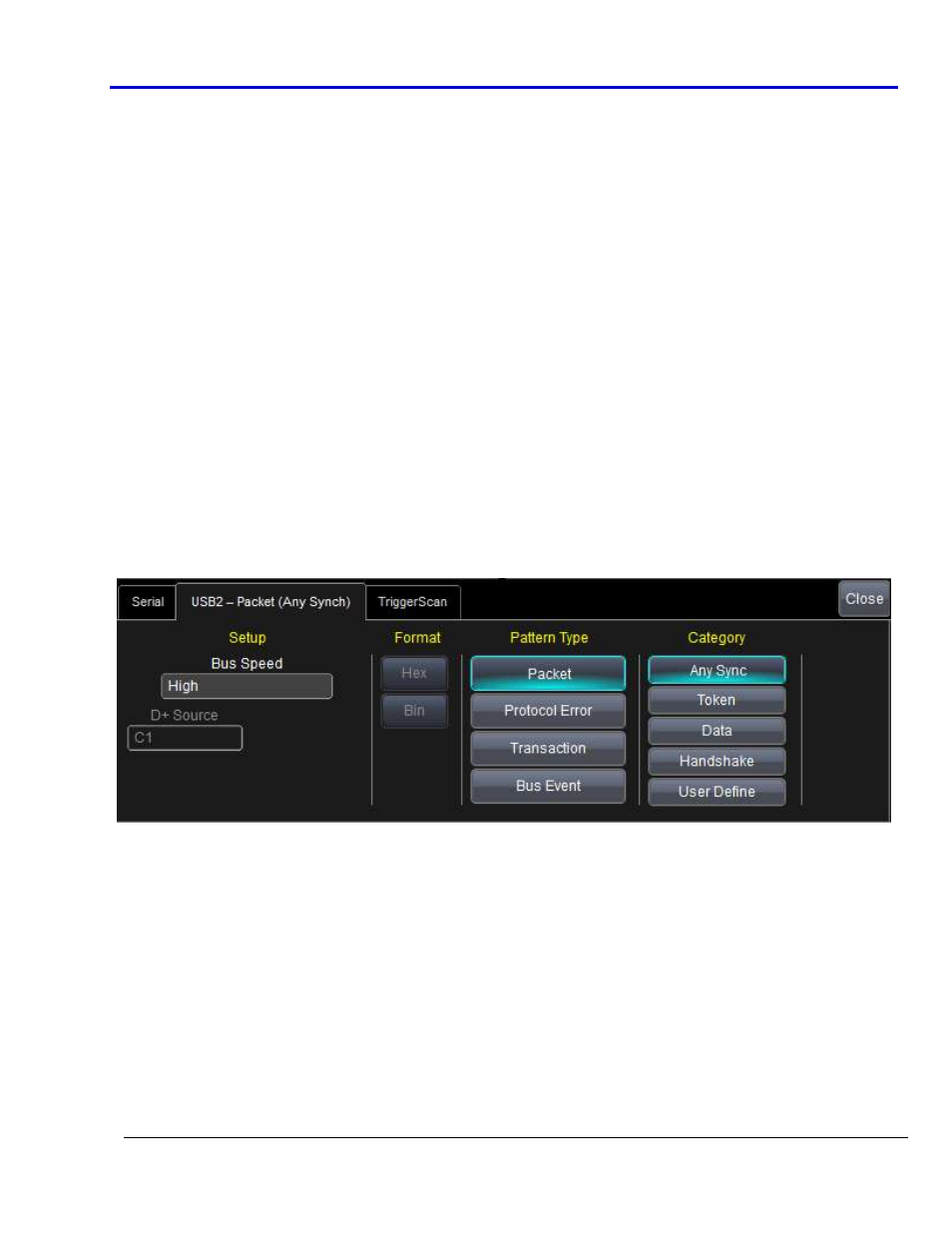

Creating a USB2 Trigger Condition
Detail on some of the setup conditions for the USB2 Trigger dialog is shown in the following topics.
PLEASE NOTE THE FOLLOWING:
Currently, USB2 Trigger functionality is available exclusively for the WaveRunner 6 Zi oscilloscope.
Refer to the Using The T Supported Protocol Toolsets (on page 22) topic to correctly access the Trigger
Condition dialog specific to your desired protocol.
Make settings or provide values by touching controls (using your finger, stylus, or connected mouse). On
applicable controls, a pop-up dialog box is shown where precise entry values can be set.
