177
PROFIBUS-DP

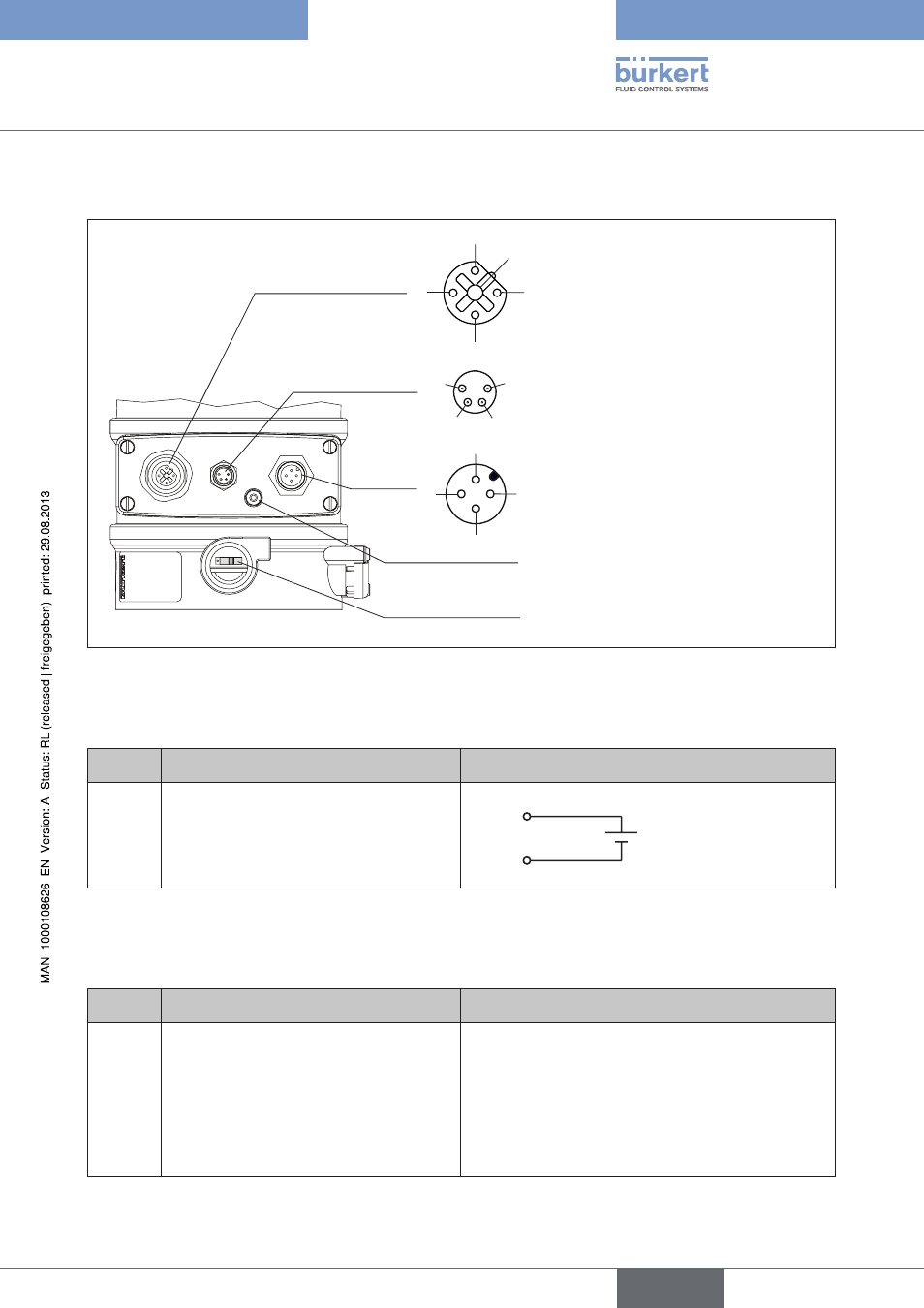

30.2. connection diagram Type 8693
Circular.plug.M12,.4-pole
Supply voltage
Switch
(behind the screw)
1
2
3
4
1
2
4
3
Process actual value
Circular.plug.M8,.4-pole
Socket.M12,.5-pole
(inversely-coded)
(PROFIBUS-DP)
Function earth FE
2
1
4
3
5
Figure 111: Connection PROFIBUS-DP - Type 8693
30.3. supply voltage (circular plug m12, 4-pole)
PIn
Configuration
External.circuit
1
+ 24 V
1
3
24 V DC ± 10 %
max. residual ripple 10 %
2
not used
3
GND
4
not used
Table 42:
Supply voltage
30.4. Bus connection (round socket/plug m12, 5-pole)
PIn
Signal
External.circuit
1
VP+5
Supply the terminating resistors
2
RxD/TxD-N
Received/transmitted data -N, A-line
3
DGND
Data transmission potential (earth to 5 V)
4
RxD/TxD-P
Received/transmitted data -P, B-line
5
Shielding
Shielding / protective earth
Table 43:
Bus Connection
english
Type 8692, 8693
