Chapter 43 System
ZyWALL USG 100/200 Series User’s Guide
696
43.10 SNMP
Simple Network Management Protocol is a protocol used for exchanging management
information between network devices. Your ZyWALL supports SNMP agent functionality,
which allows a manager station to manage and monitor the ZyWALL through the network.
The ZyWALL supports SNMP version one (SNMPv1) and version two (SNMPv2c). The next
figure illustrates an SNMP management operation.

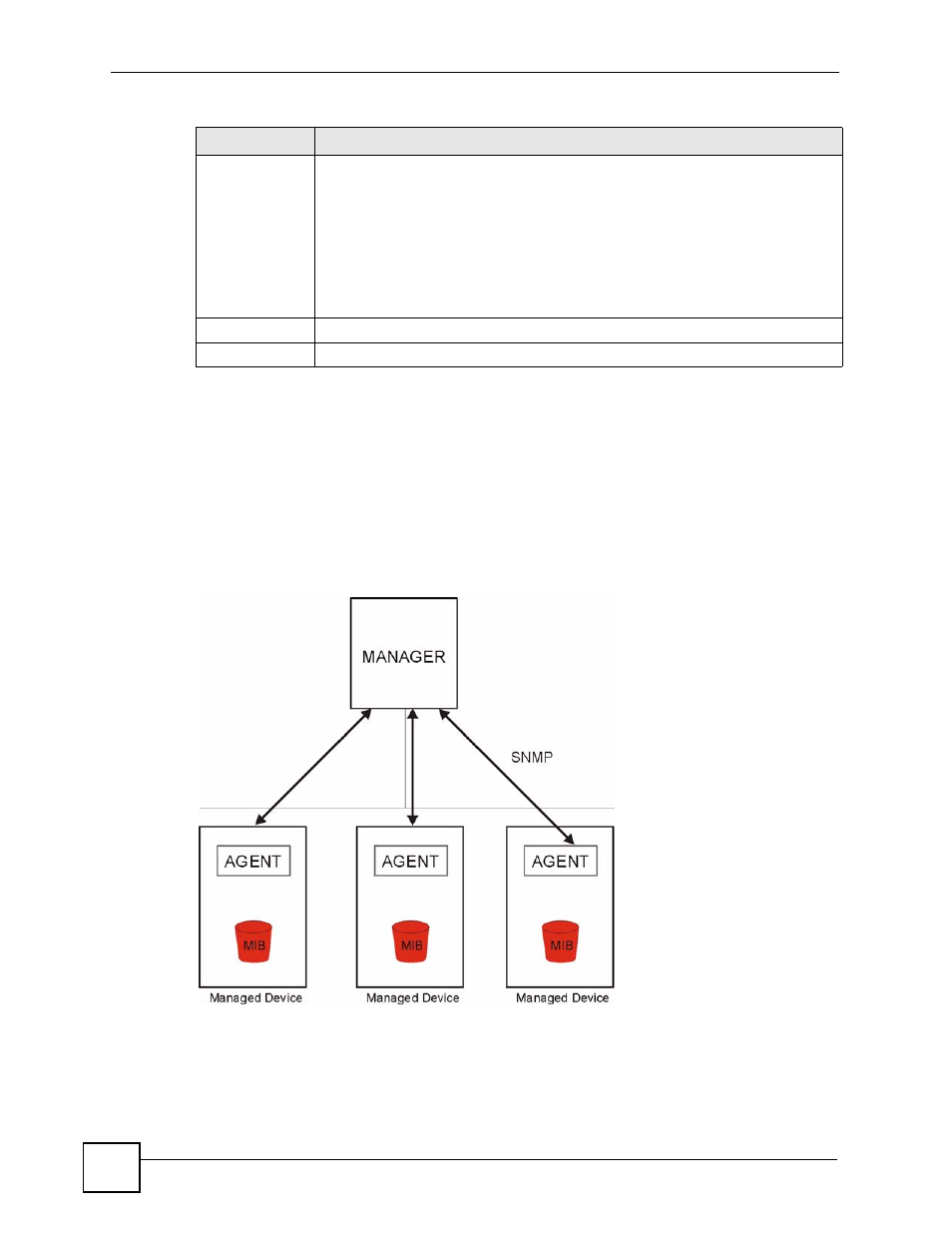

Figure 522 SNMP Management Model
An SNMP managed network consists of two main types of component: agents and a manager.
Add icon Click the Add icon in the heading row to open a screen where you can add a new
rule. Refer to
Table 239 on page 682 for information on the fields.
Click the Edit icon to go to the screen where you can edit the rule.
Click the Add icon in an entry to add a rule below the current entry.
Click the Delete icon to remove an existing rule. A window display asking you to
confirm that you want to delete the rule. Note that subsequent rules move up by one
when you take this action.
Click the Move to N icon to display a field to type a number for where you want to
put that rule and press [ENTER] to move the rule to the number that you typed.
Apply Click Apply to save your changes back to the ZyWALL.
Reset Click Reset to begin configuring this screen afresh.
Table 242 System > FTP (continued)
LABEL DESCRIPTION
