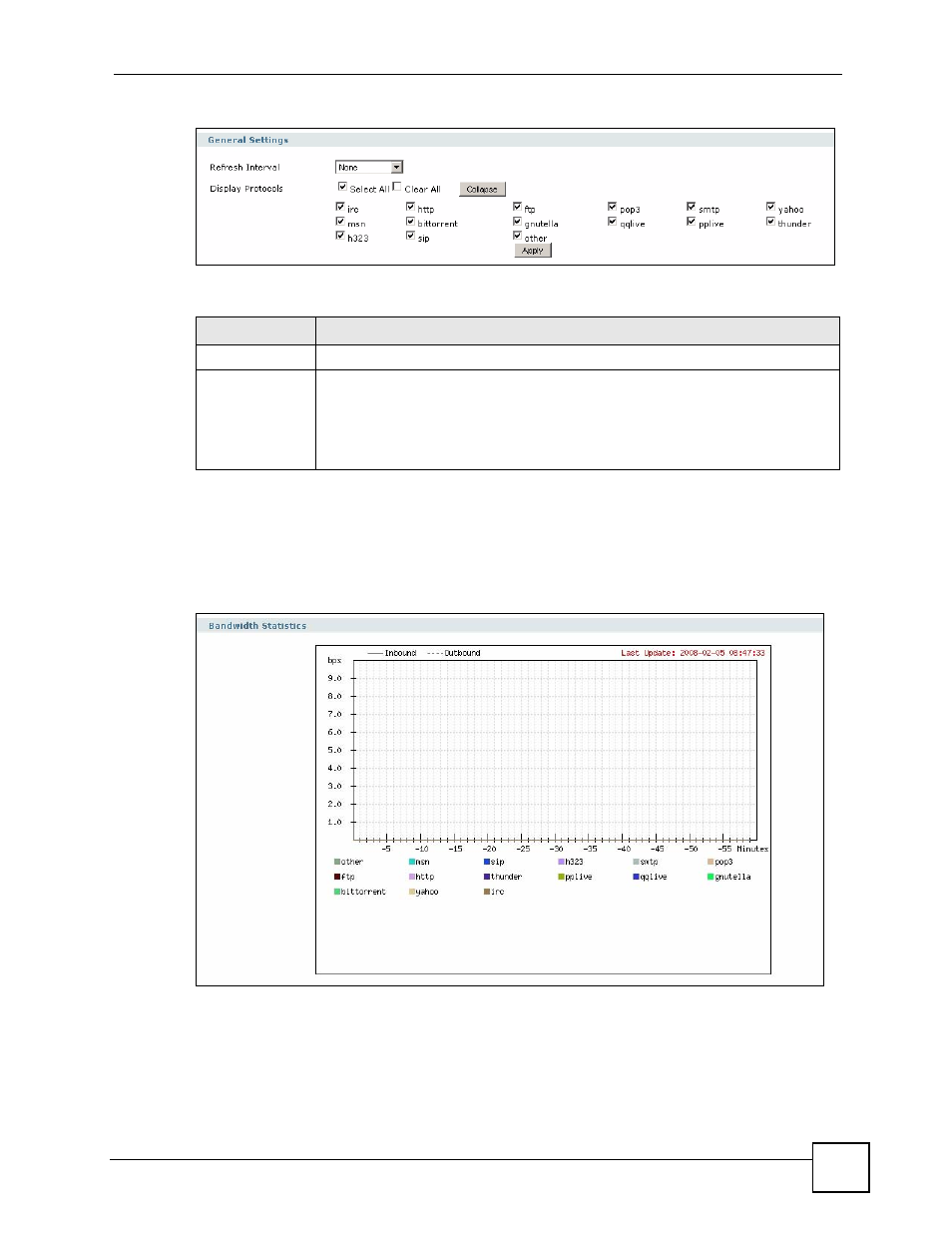

Figure 368 AppPatrol > Statistics: General Setup
The following table describes the labels in this screen.
27.5.2 Application Patrol Statistics: Bandwidth Statistics
The middle of the AppPatrol > Statistics screen displays a bandwidth usage line graph for the
selected protocols.
Figure 369 AppPatrol > Statistics: Bandwidth Statistics
• The y-axis represents the amount of bandwidth used.
• The x-axis shows the time period over which the bandwidth usage occurred.
• A solid line represents a protocol’s incoming bandwidth usage. This is the protocol’s
traffic that the ZyWALL sends to the initiator of the connection.
• A dotted line represents a protocol’s outgoing bandwidth usage. This is the protocol’s
traffic that the ZyWALL sends out from the initiator of the connection.
Table 143 AppPatrol > Statistics: General Setup
LABEL DESCRIPTION
Refresh Interval Select how often you want the statistics display to update.
Display
Protocols Select the protocols for which to display statistics.
Select All selects all of the protocols.
Clear All clears all of the protocols.
Click Expand to display individual protocols. Collapse hides them.
Statistics for the selected protocols display after you click Apply.
