Chapter 22 SSL User Screens
ZyWALL USG 100/200 Series User’s Guide
397

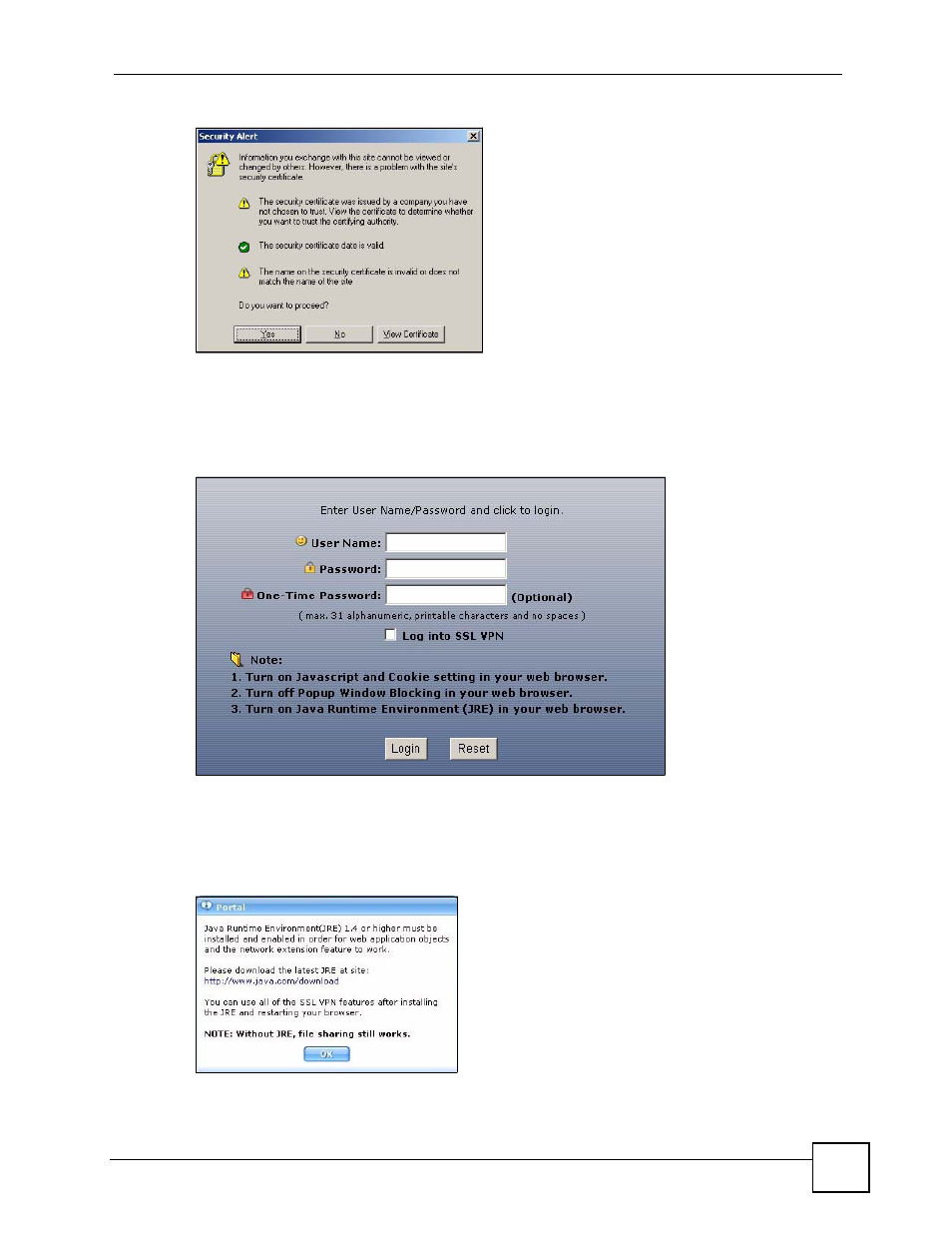

Figure 277 Login Security Screen
3 A login screen displays. Enter the user name and password of your login account. If a
token password is also required, enter it in the One-Time Password field.
4 Select Log into SSL VPN and click Login to log in and establish an SSL VPN
connection to the network to access network resources.
Figure 278 Login Screen
5 Your computer starts establishing a secure connection to the ZyWALL after a successful
login. This may take up to two minutes. If you get a message about needing Java,
download and install it and restart your browser and re-login. If a certificate warning
screen displays, click OK, Yes or Continue.
Figure 279 Java Needed Message
6 The following status screen displays indicating the progress of the secure SSL VPN
connection setup.
