Chapter 26 L2TP VPN Example
ZyWALL USG 100/200 Series User’s Guide
418
26.4 Configuring the L2TP VPN Settings Example
1 Click VPN > L2TP VPN to open the following screen.

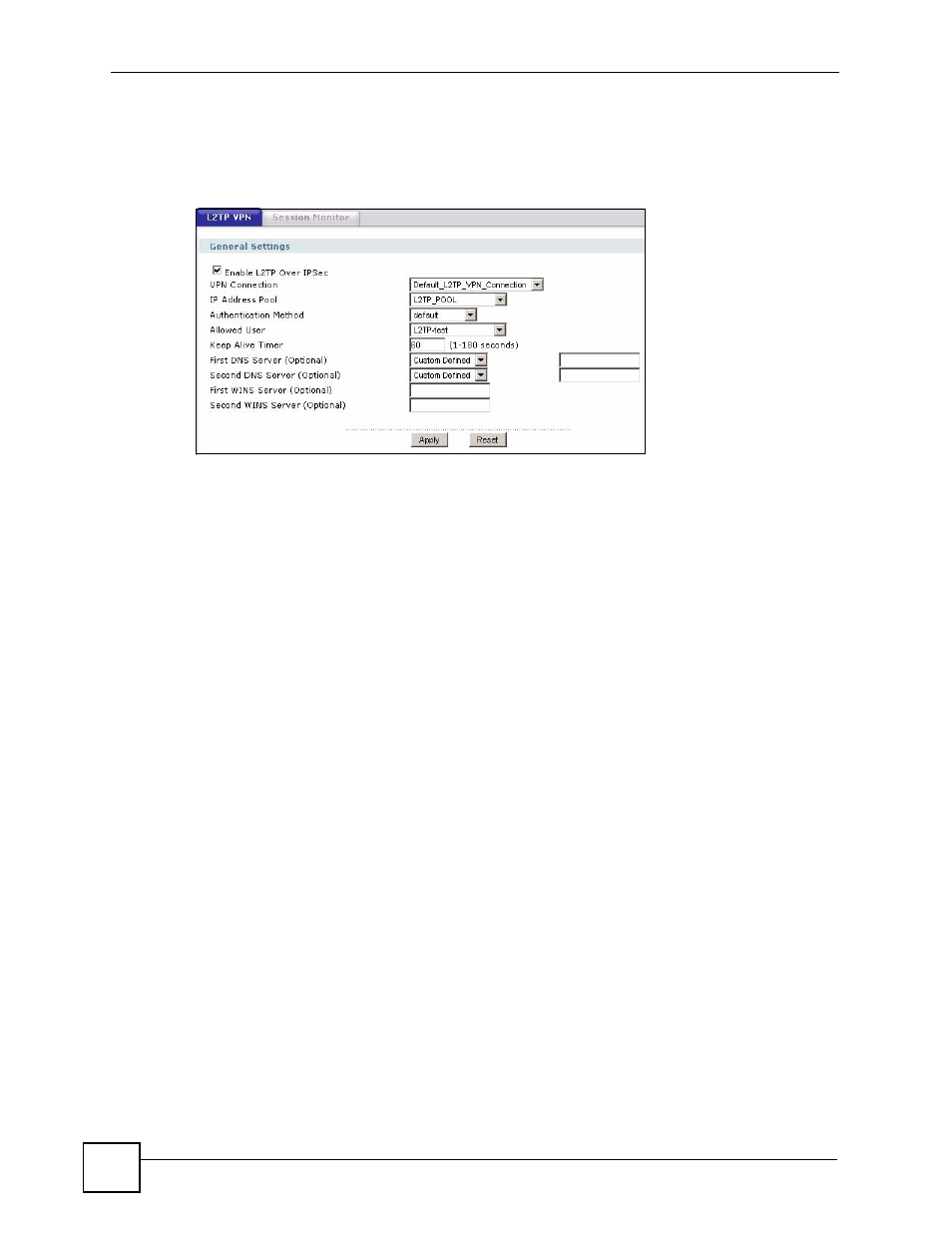

Figure 304 VPN > L2TP VPN Example
2 Configure the following.
• Enable the connection.
• Set it to use the Default_L2TP_VPN_Connection VPN connection.
• Configure an IP address pool for the range of 192.168.10.10 to 192.168.10.20. It is
called L2TP_POOL here.
• This example uses the default authentication method (the ZyWALL’s local user data
base).
• Select a user or group of users that can use the tunnel. Here a user account named
L2TP-test has been created.
• The other fields are left to the defaults in this example, click Apply.
26.5 Configuring the Policy Route for L2TP Example
1 Click Routing > Add to open the following screen.
