Chapter 26 L2TP VPN Example
ZyWALL USG 100/200 Series User’s Guide
425

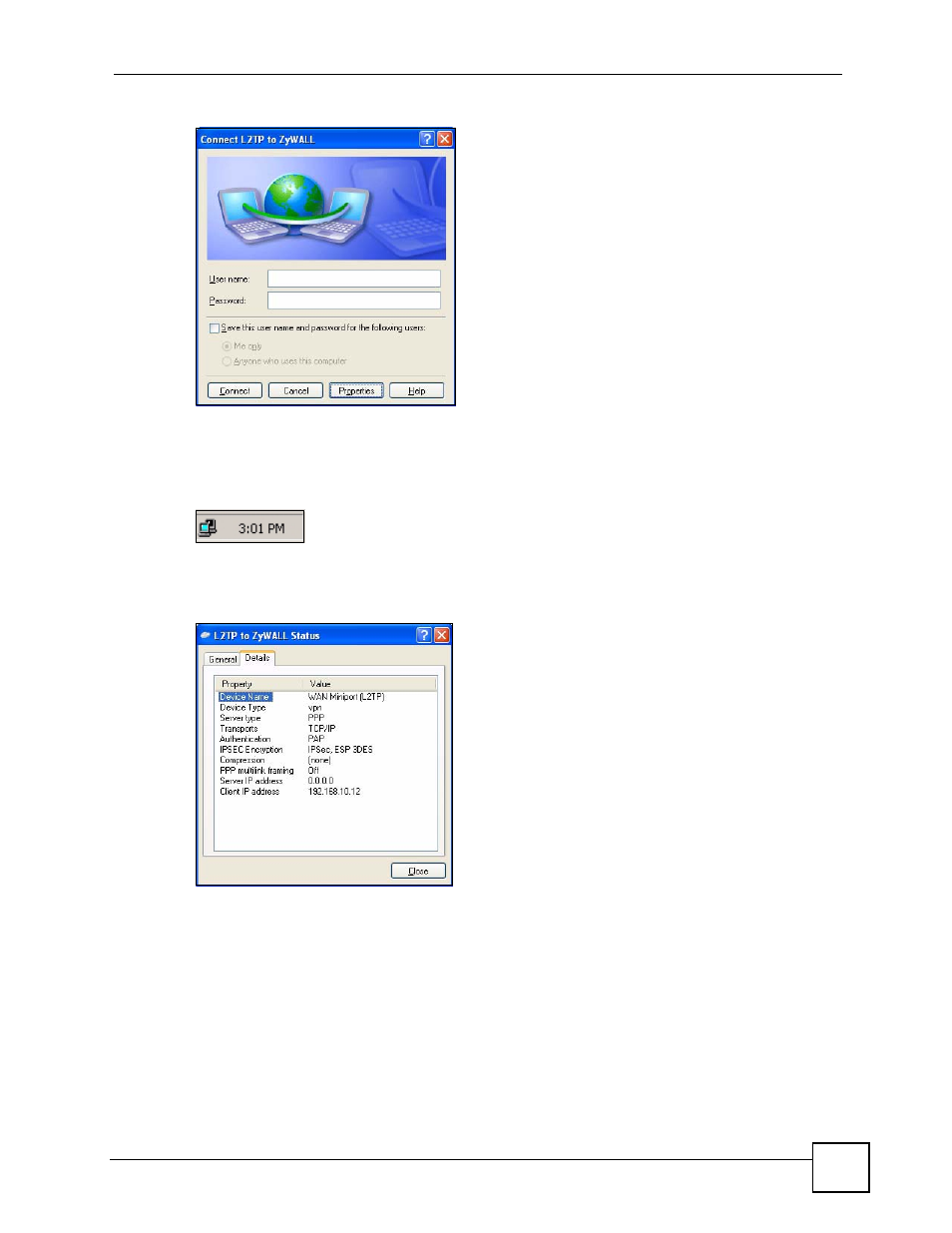

Figure 317 Connect L2TP to ZyWALL
16 A window appears while the user name and password are verified.
17 A ZyWALL-L2TP icon displays in your system tray. Double-click it to open a status
screen.
Figure 318 ZyWALL-L2TP System Tray Icon
18 Click Details to see the address that you received is from the L2TP range you specified
on the ZyWALL (192.168.10.10-192.168.10.20).
Figure 319 ZyWALL-L2TP Status: Details
19 Access a server or other network resource behind the ZyWALL to make sure your access
works.
26.6.2 Configuring L2TP in Windows 2000
Windows 2000 does not support using pre-shared keys by default. Use the following
procedures to edit the registry and then configure the computer to use the L2TP client.
26.6.2.1 Editing the Windows 2000 Registry
In Windows 2000, you need to create a registry entry and restart the computer to have it use
pre-shared keys.
