Chapter 26 L2TP VPN Example
ZyWALL USG 100/200 Series User’s Guide
416

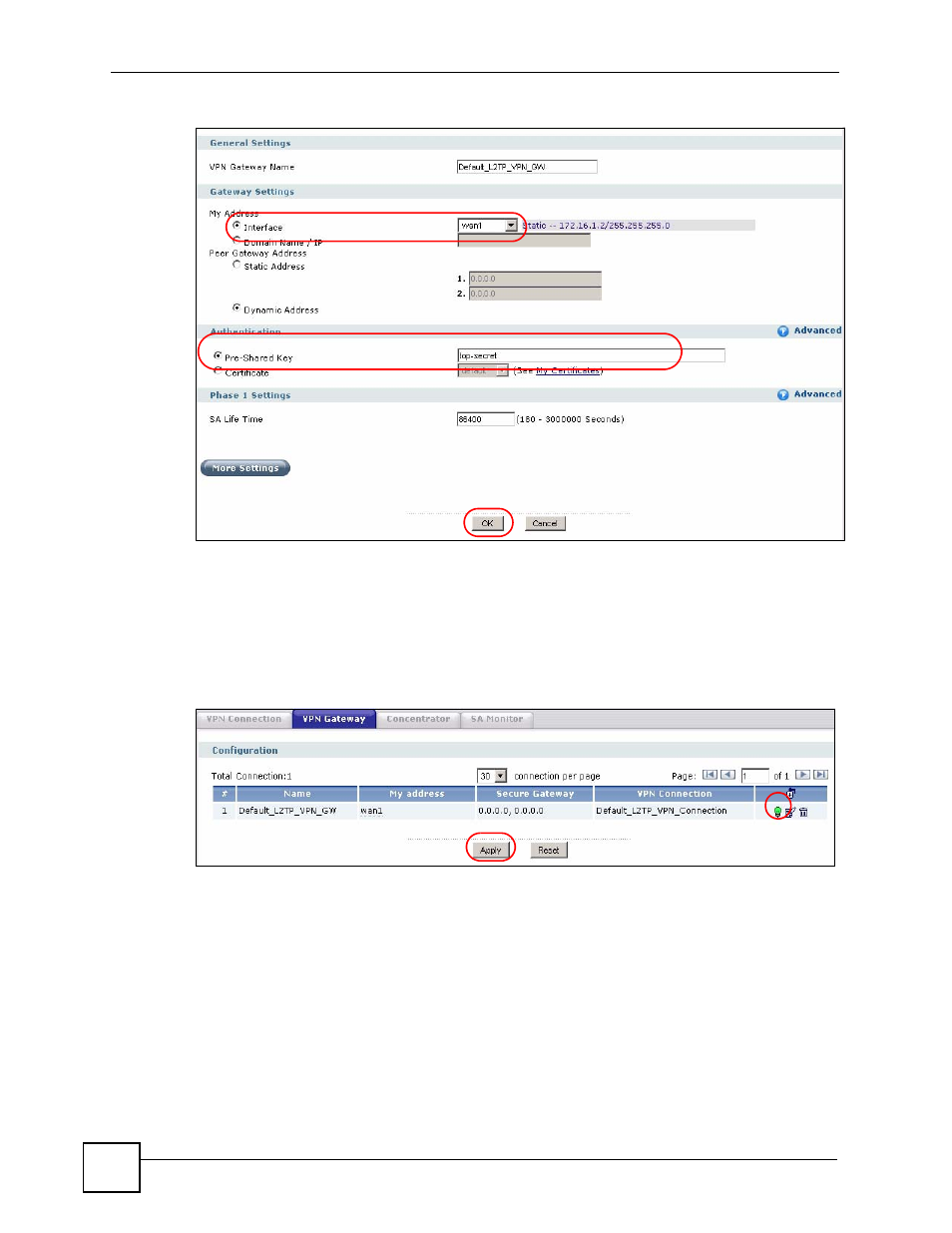

Figure 300 VPN > IPSec VPN > VPN Gateway > Edit
• Configure the My Address setting. This example uses interface wan1 with static IP
address 172.16.1.2.
• Select Pre-Shared Key and configure a password. This example uses top-secret.
Click OK.
2 Click the Default_L2TP_VPN_GW entry’s Enable icon and click Apply to turn on the
entry.
Figure 301 VPN > IPSec VPN > VPN Gateway (Enable)
26.3 Configuring the Default L2TP VPN Connection Example
1 Click VPN > Network > IPSec VPN to open the screen that lists the VPN connections.
Click the Default_L2TP_VPN_Connection’s Edit icon.
