Chapter 3 Web Configurator
ZyWALL USG 100/200 Series User’s Guide
67
Follow the directions in this screen. If you change the default password, the Login
screen (
) appears after you click Apply. If you click Ignore, the
main screen appears.

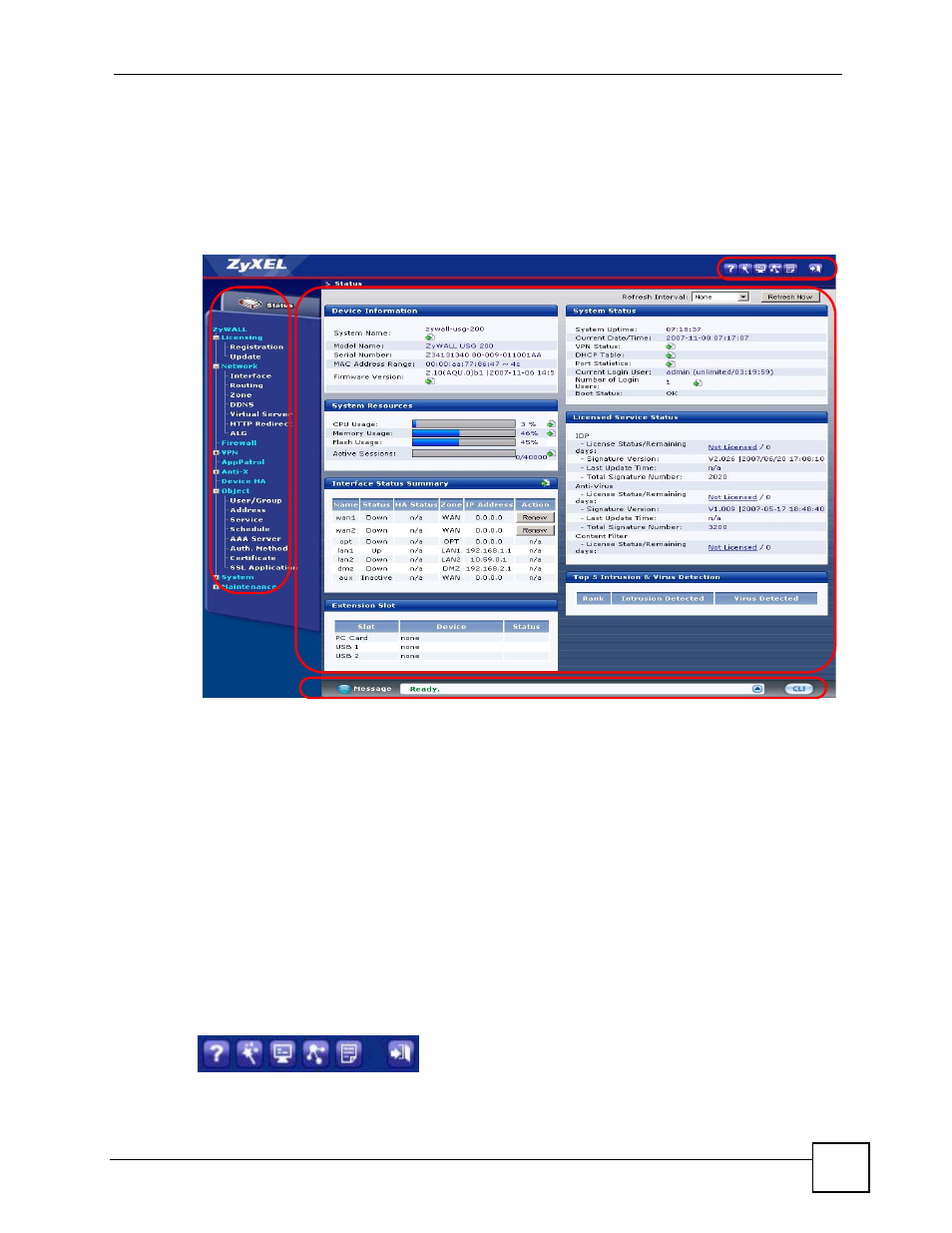

Figure 12 Main Screen
3.3 Web Configurator Main Screen
As illustrated in
, the main screen is divided into these parts:
• A - title bar
• B - navigation panel
• C - main window
• D - status bar
3.3.1 Title Bar
The title bar provides some icons in the upper right corner.
A
C
D
B
