5Ć12 AutoMax Programming Executive Version 3.x
Step 6. Select OK to import the system or Cancel to return to the
System Configurator without importing the system. If a
system is imported, it will be inserted into the list of
systems in alphabetical order and become the selected
system.

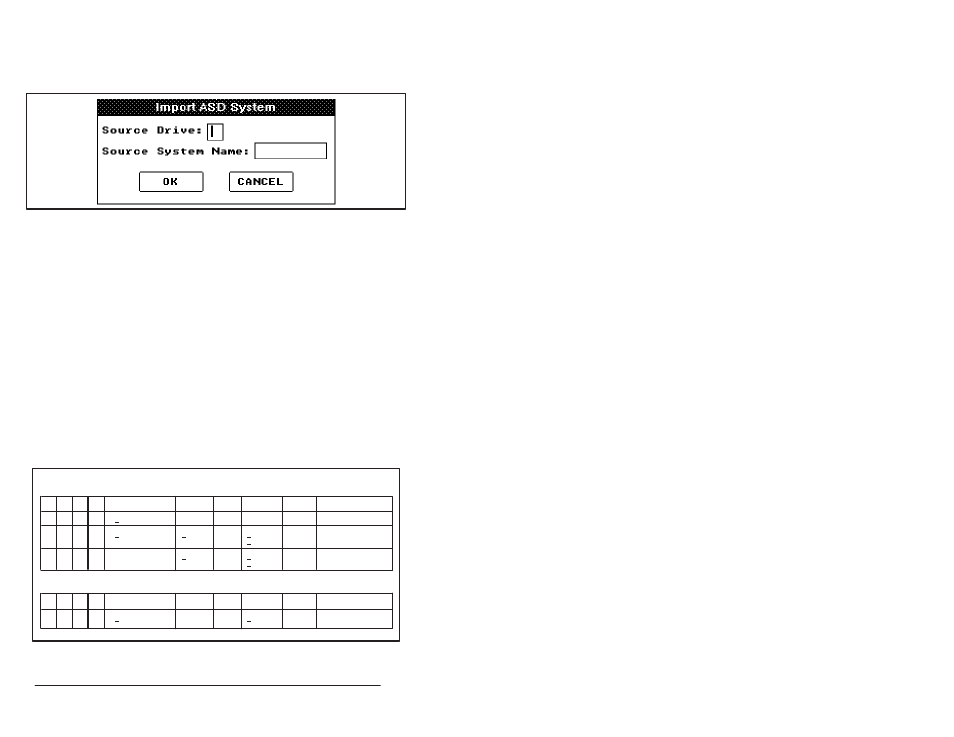

Figure 5.5 Ć Import ASD System
5.1.9 Selecting All Systems
The Select All command selects all the systems listed. Select All can
be used when you want to transfer, print documentation files for all
systems, or remove all of the systems. To select one system after
selecting all, simply click on the desired system.
5.1.10 Generating Network Cross Reference Files
The network cross reference lists all the network variables used in the
system organized by network/drop/register/bit. It also provides a list
of local variables not linked to networkĆwide variables, network
registers which are read but not written to, and network registers that
are written to but not read. You can generate a network cross
reference for one network in a system, all the networks within a single
system, or for all networks in multiple systems. The fields described
below are listed across the top of the network cross reference
printout. See figure 5.6 for an illustration of the network cross
reference.
Network Cross Reference SYSTEM: NETXREF NETWORK: A PAGE: A1
H D R B NetworkĆwide Name Written as in rack Read as in rack Description
A 01 00 G A010% Drop Area 1 Register 0
A 01 01 G A011% L A011% A01 L INT1% A02 Drop Area 1 Register 1
L A011% A00
A 01 02 L A012% A01 L A012% A00 Drop Area 1 Register 1
L INT2% A02
Network Cross Reference SYSTEM: NETXREF NETWORK: A Local Var. not linked to NetworkĆwide var. PAGE: A2
H D R B NetworkĆwide Name Written as in rack Read as in rack Description
A 01 01 G A011% L INT1% A02 Drop Area 1 Register 1
Figure 5.6 Ć Network Cross Reference
