4Ć11 Getting Around in the AutoMax Executive and Windows
4.16 Using the Mouse Accelerator
(DoubleĆClicking)
The mouse can be used to move quickly through the various levels of
the rack and variable configuration process. DoubleĆclicking the left
button on the desired object accesses the next logical lower level of
the configuration process.
For example, beginning from the master rack in the Rack
Configurator, doubleĆclicking the left mouse button on a Remote I/O
module will access the Remote I/O Network diagram. DoubleĆclicking
a remote I/O rack will display the remote rack. You can then add
modules to the remote rack. DoubleĆclicking a configurable module
will access the Variable Configurator. See figure 4.10.
Ć
SYSTEM CONFIGURATOR
Systems Sections Racks
O
I
R
I
O
U
D
C
O
I
TASK MANAGER VARIABLE CONFIGURATOR
RACK CONFIGURATOR
Manage Tasks Configure Tasks
or Zoom In
Main
Rack
PMI
Rack
Zoom
In
Remote
Head
0 1 2 3
Configure
Variables
Zoom
In
Configure
Variables
Zoom In
Digital
Rail
Zoom In or
Configure Variables
Zoom In or
Configure Variables
Zoom In
Configure Variables
Remote I/O
Network
Zoom In
Remote
Rack

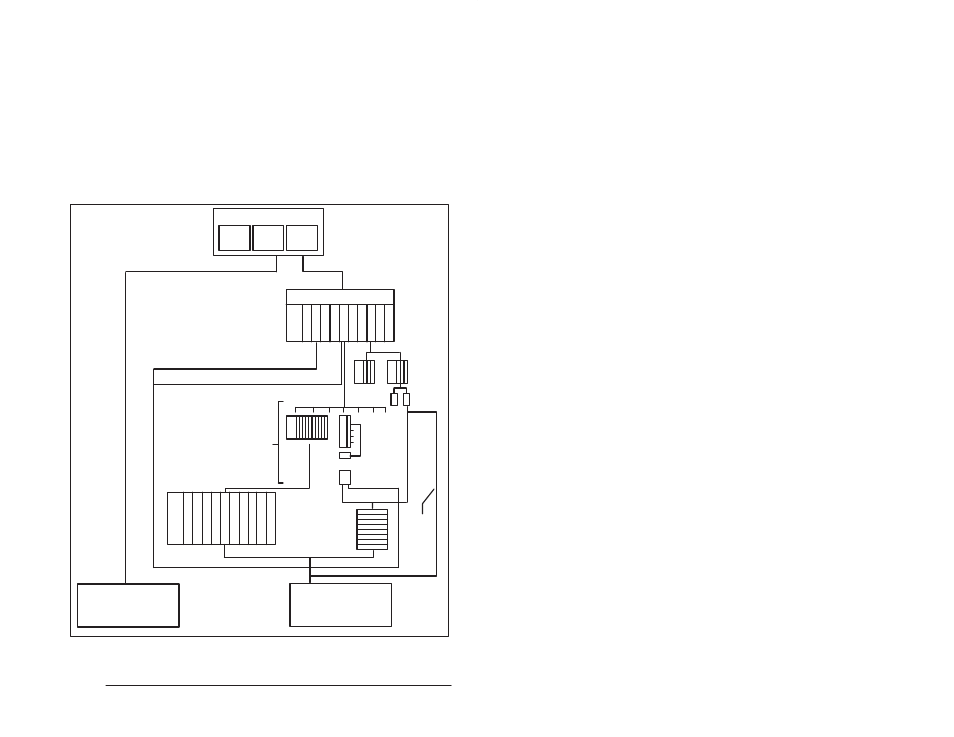

Figure 4.10 Ć Use of the Mouse Accelerator
