MET (Instantaneous Metering)
RTD (RTD/Thermal Metering)

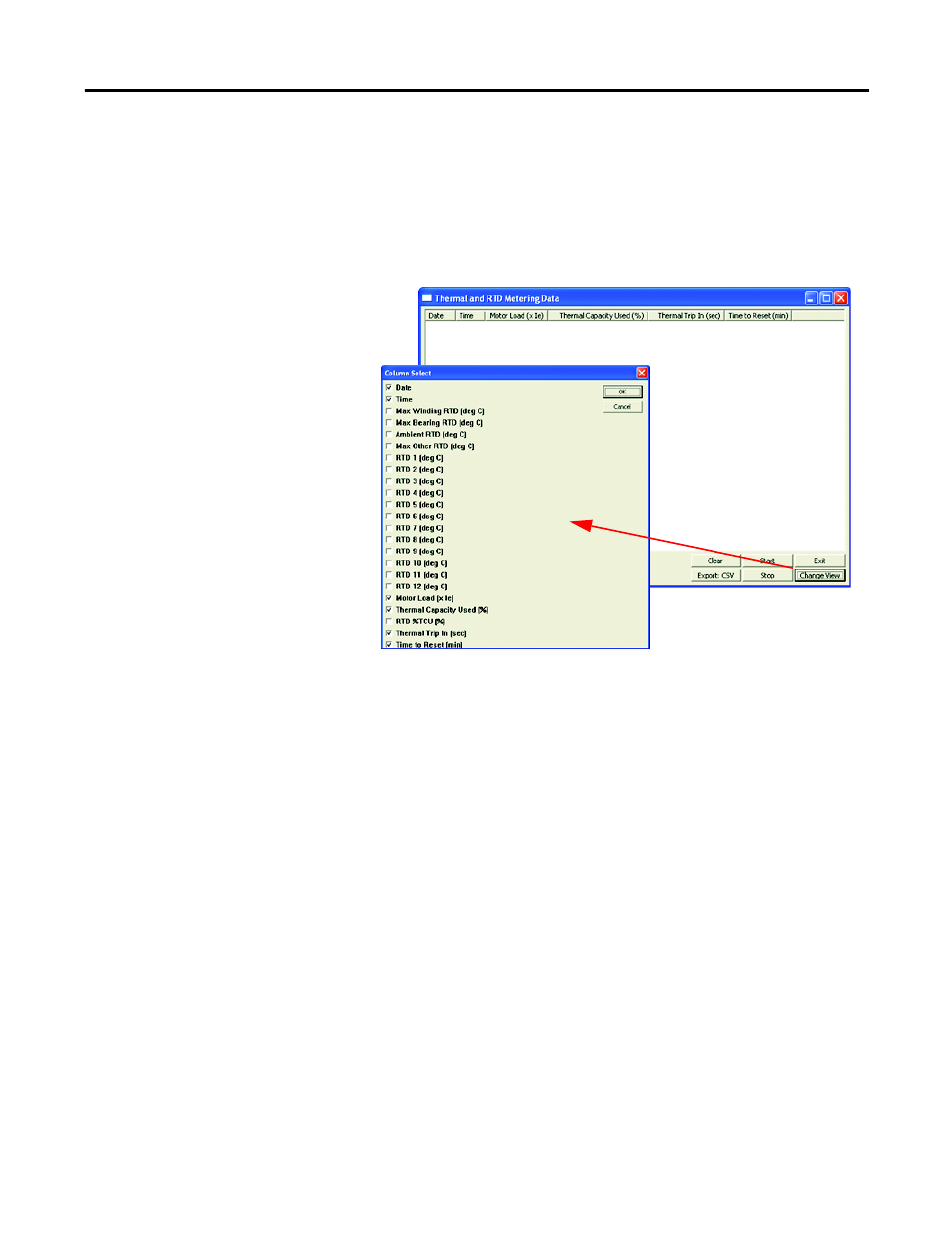

The Instantaneous and Thermal Metering functions display the collection
and export data in real time. The user is able to configure the parameters that
are displayed for both instantaneous and thermal metering.
