28 Rockwell Automation Publication 825-UM004D-EN-P - November 2012
Chapter 2 Installation
Full-Voltage Reversing Starter
Full-voltage reversing starter motor applications require the following settings:
• TWO SPEED ENABLE = Y (Yes)
• IN1 = 0 0 0 0 0 0 0 1 0 0 (Speed 2)
• FVR PHASING = the phase (A, B, or C) that is not changing
• CT RATIO-2nd = CT RATIO
• MOTOR FLA-2nd = MOTOR FLA
• MOTOR LRC-2nd = MOTOR LRC
• MOTOR LRT-2nd = LOCKED ROTOR TIME
• ACCEL FACT-2nd = ACCEL FACTOR
• RUN ST TC-2nd = RUN STATE TIME K
Figure 17 - AC Connections for Full-voltage Reversing Starter

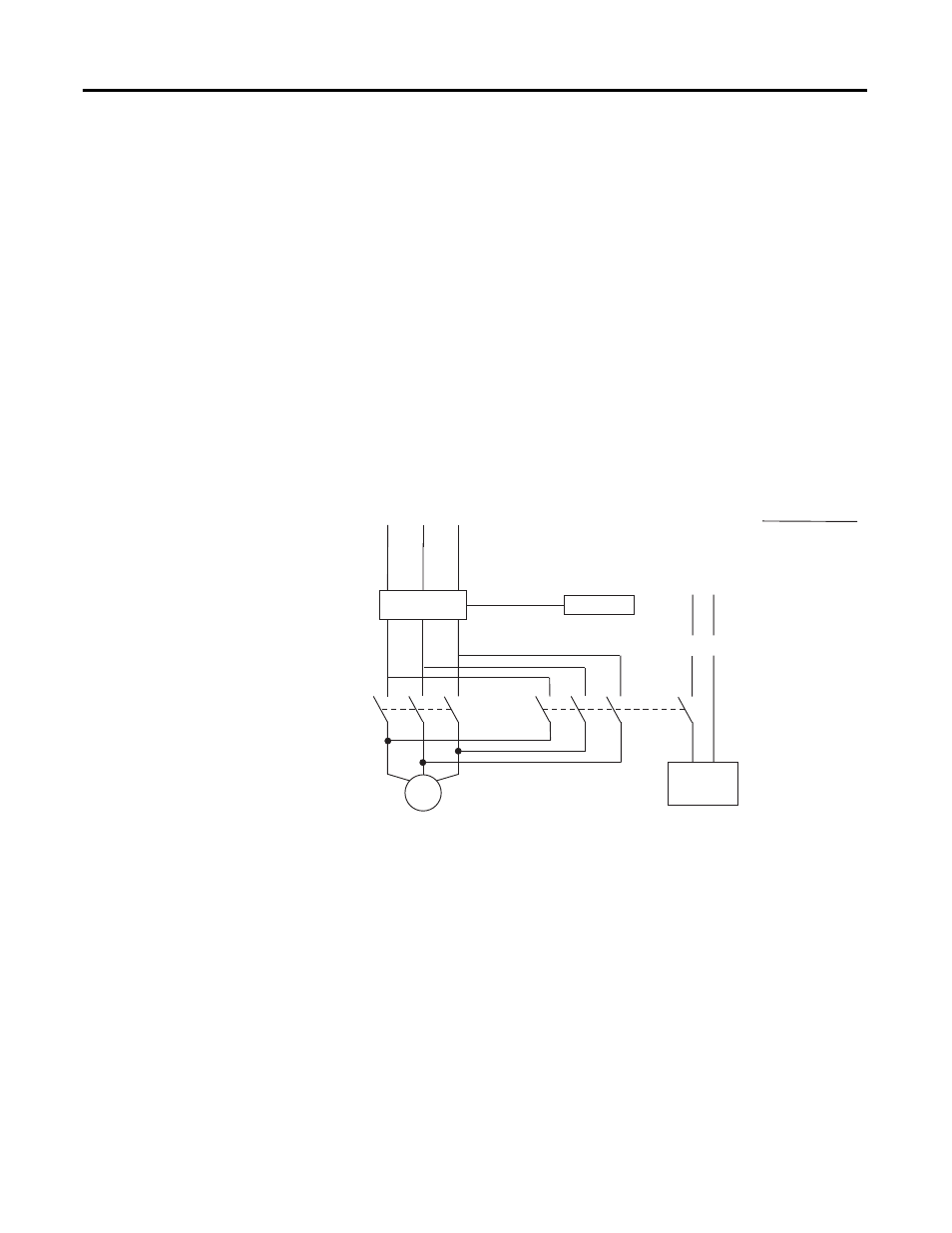

Star-Delta Starting
The star-delta application in the following figures requires the following auxiliary
relay settings:
• AUX#H = 0001000 (Star), AUX# FAIL-SAFE = N
• AUX#H = 0000100 (Delta), AUX# FAIL-SAFE = N
825-P 825-MCM
L3 L2 L1
1 3 5
6 4 2
M
3 ~
Converter Module
825-MCM2
825-MCM5
825-MCM20
825-MCM180
825-MCM420
825-MCM630N
(I)
(II)
825-P
Y12 Y1-
+ -
24V AC/V DC
L N
