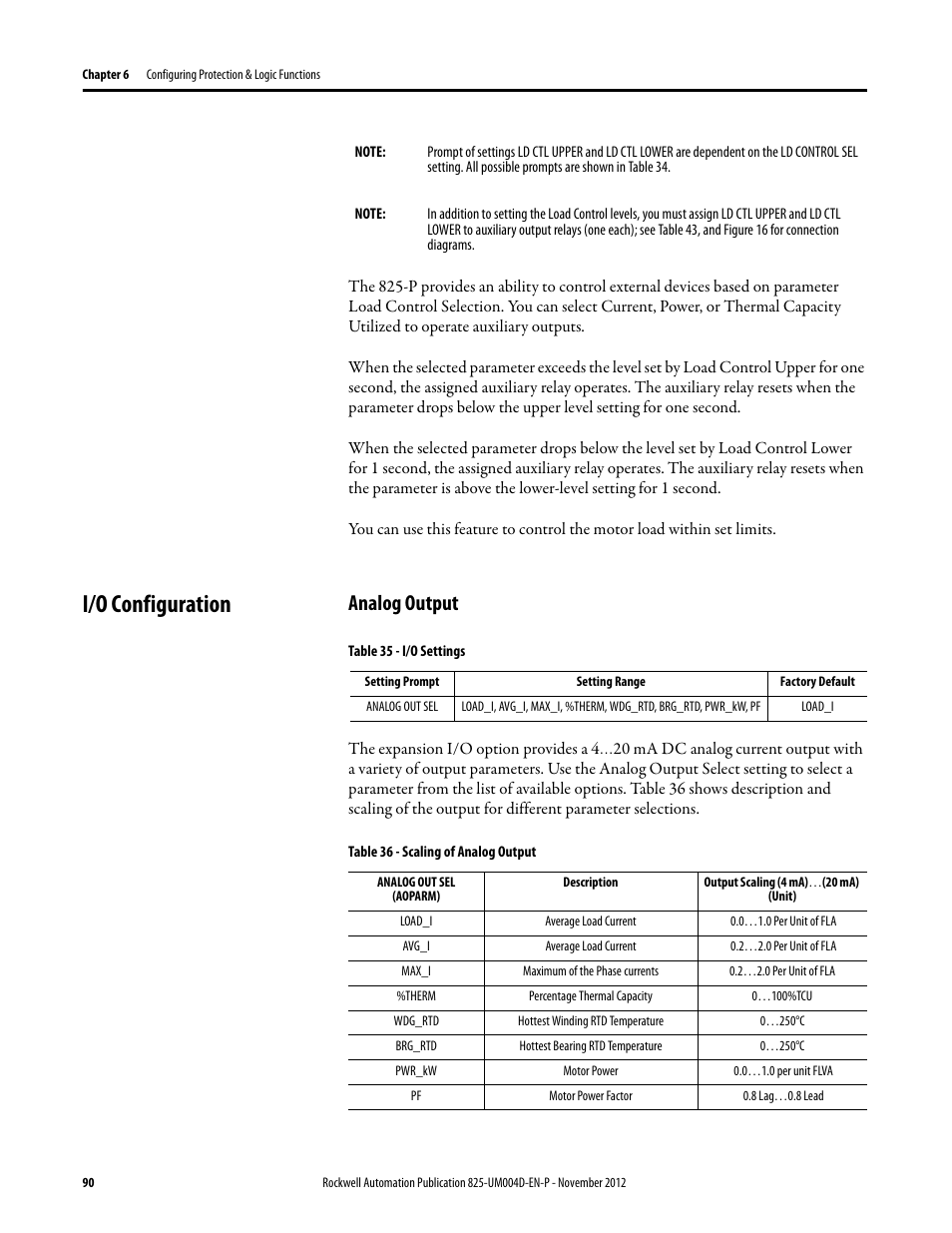

I/o configuration, Analog output, Table 35 - i/o settings – Rockwell Automation 825-P Modular Protection System for Motors User Manual User Manual
Page 90: Analog out sel, Load_i, Table 36 - scaling of analog output, Avg_i, Max_i, Therm, Wdg_rtd
