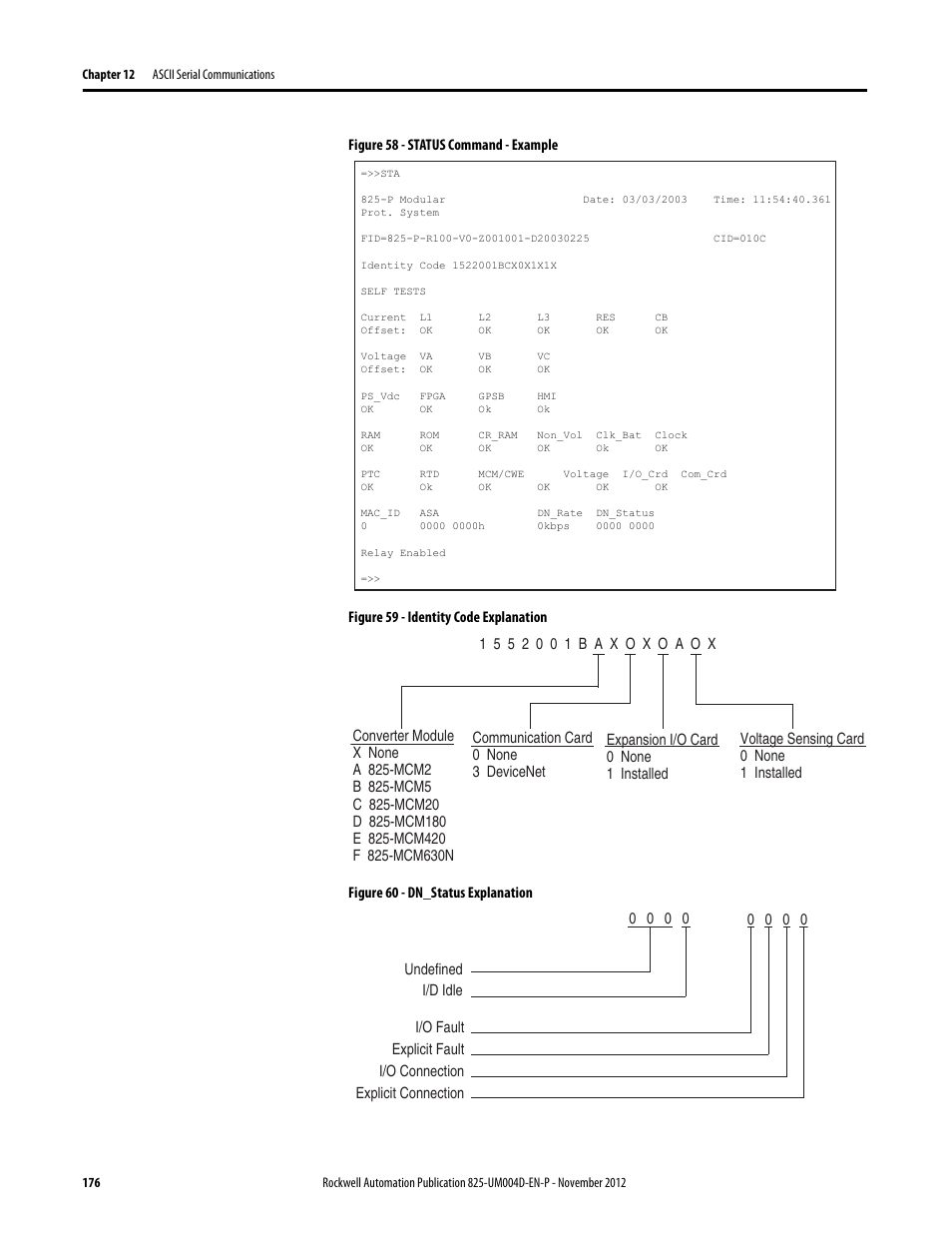

Figure 58 - status command - example, Figure 59 - identity code explanation, Figure 60 - dn_status explanation – Rockwell Automation 825-P Modular Protection System for Motors User Manual User Manual
Page 176
