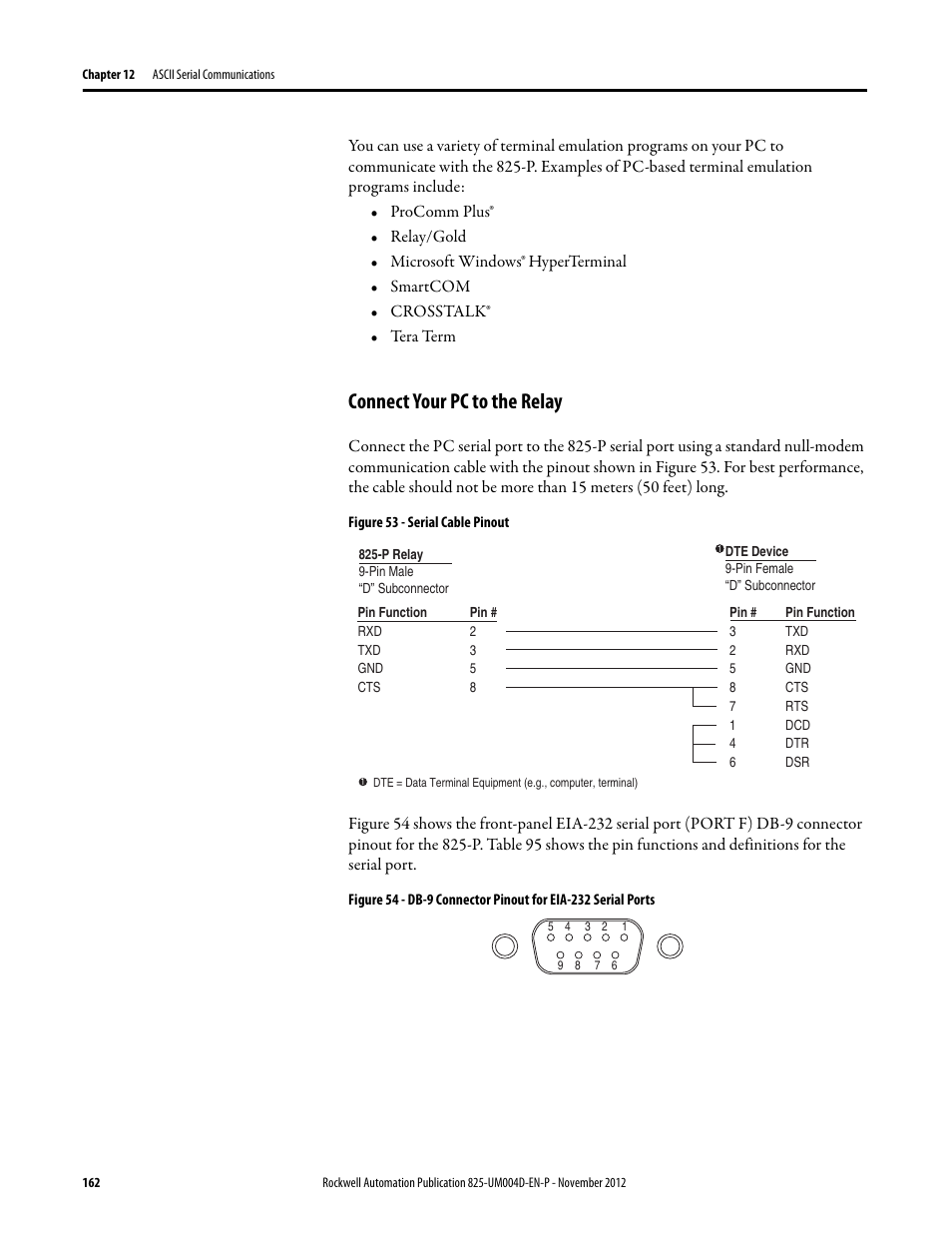

Connect your pc to the relay, Figure 53 - serial cable pinout – Rockwell Automation 825-P Modular Protection System for Motors User Manual User Manual
Page 162
