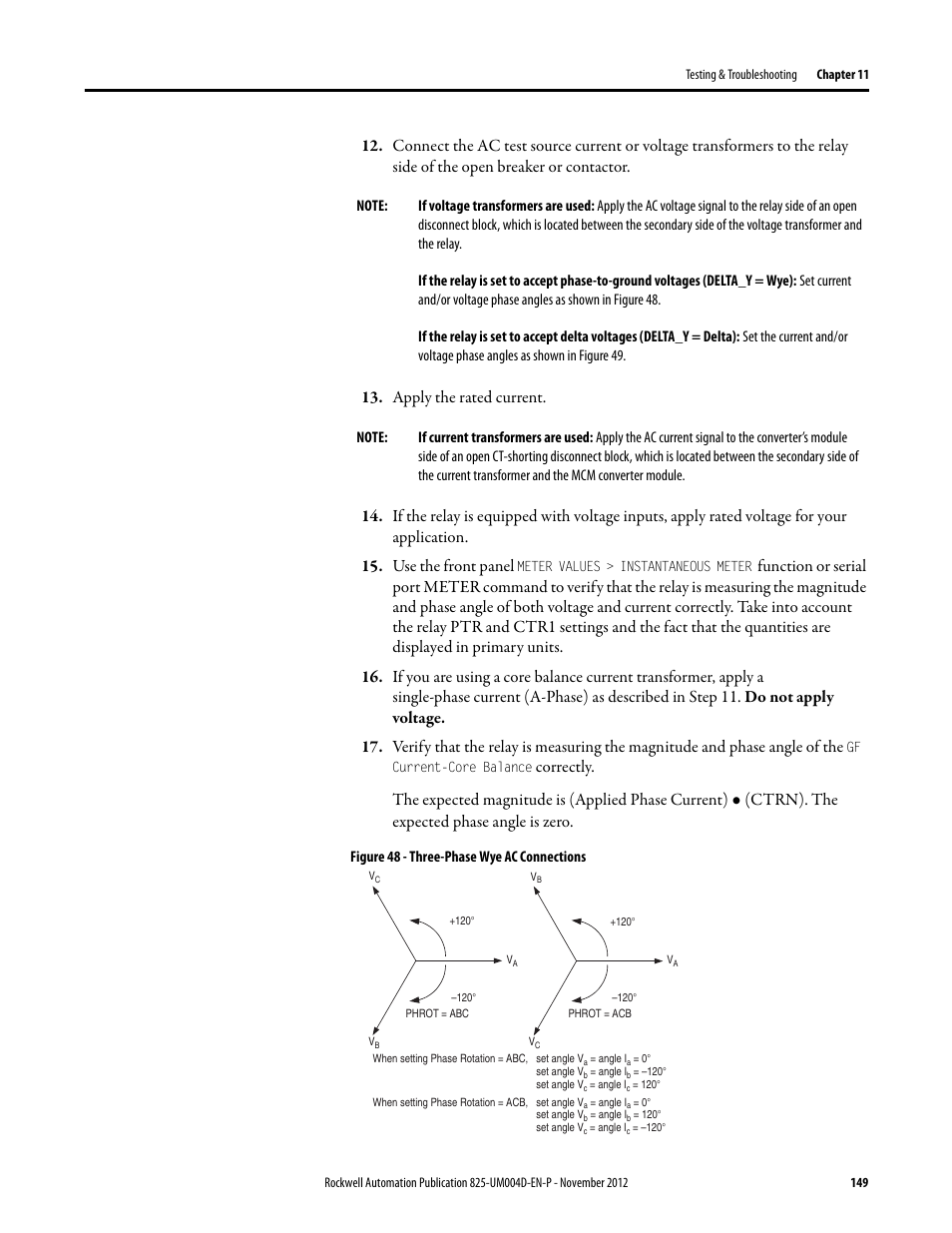

Apply the rated current, Figure 48 - three-phase wye ac connections, Ctrn). the expected phase angle is zero – Rockwell Automation 825-P Modular Protection System for Motors User Manual User Manual
Page 149
