Select tab devicelogix, Select start logic editor, Do one of the following – Rockwell Automation 825-P Modular Protection System for Motors User Manual User Manual

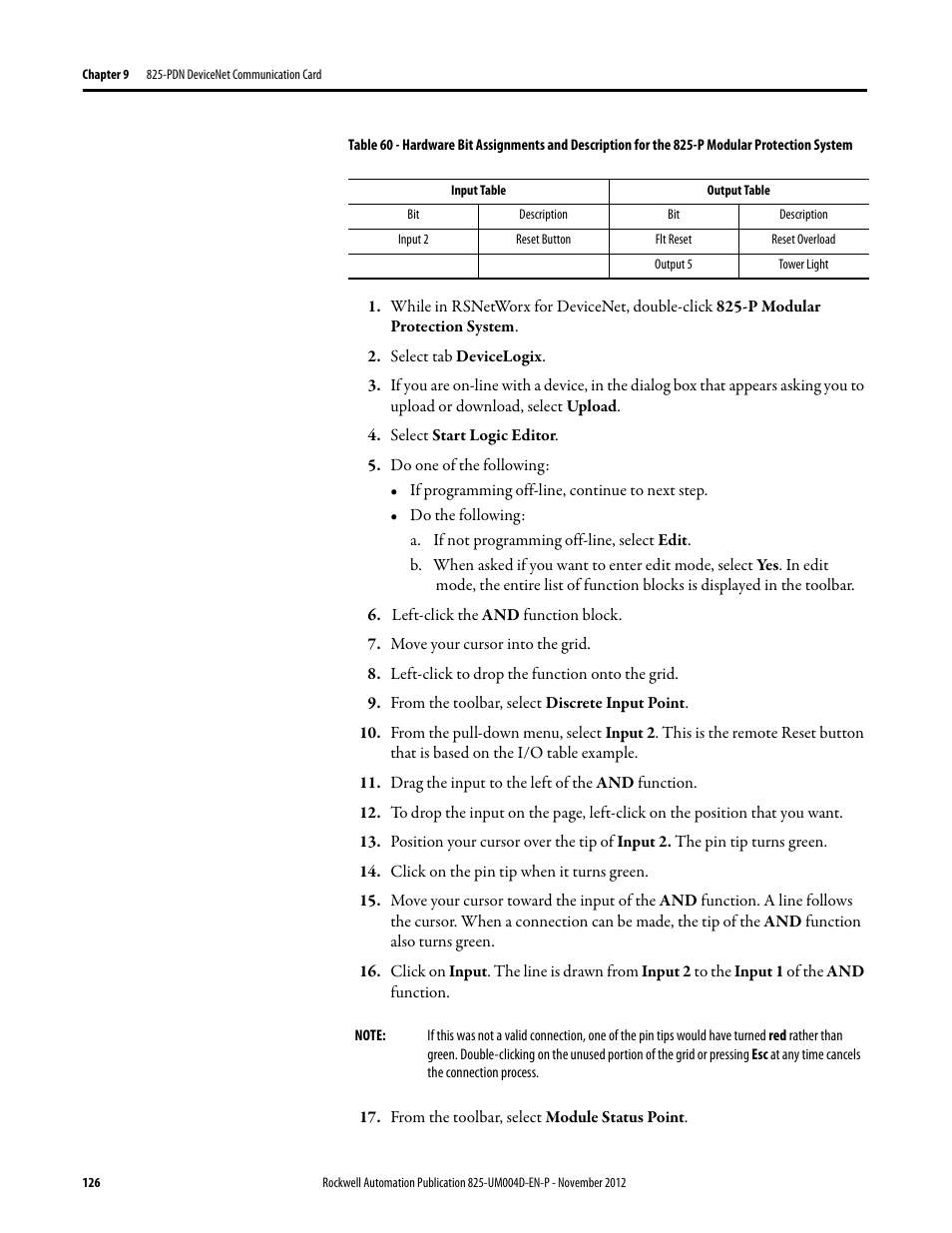

Page 126: A. if not programming off-line, select edit, Left-click the and function block, Move your cursor into the grid, Left-click to drop the function onto the grid, From the toolbar, select discrete input point, Drag the input to the left of the and function, Click on the pin tip when it turns green

Select tab devicelogix, Select start logic editor, Do one of the following | A. if not programming off-line, select edit, Left-click the and function block, Move your cursor into the grid, Left-click to drop the function onto the grid, From the toolbar, select discrete input point, Drag the input to the left of the and function, Click on the pin tip when it turns green | Rockwell Automation 825-P Modular Protection System for Motors User Manual User Manual | Page 126 / 266 Select tab devicelogix, Select start logic editor, Do one of the following | A. if not programming off-line, select edit, Left-click the and function block, Move your cursor into the grid, Left-click to drop the function onto the grid, From the toolbar, select discrete input point, Drag the input to the left of the and function, Click on the pin tip when it turns green | Rockwell Automation 825-P Modular Protection System for Motors User Manual User Manual | Page 126 / 266
