Commissioning
Commissioning examples
6
6.16
l
6.16−1 EDSVS9332P EN 5.0−07/2013
6.16 Commissioning examples
L1
L2
L3
PE
Z1
X7
X5
RFR
28 E1 E2 E3 E4 E5 A1 A2 A3 A4 59 W V U
L3 L2 L1
39
+UG -UG
93XX PE
PE
N
59 39 71 72 88 89
RS232
RS485
24V
+ -
Lenze
LECOM A/B
Lenze
Global Drive
Control
F1...F3
S1 S2
S3
S4
S5

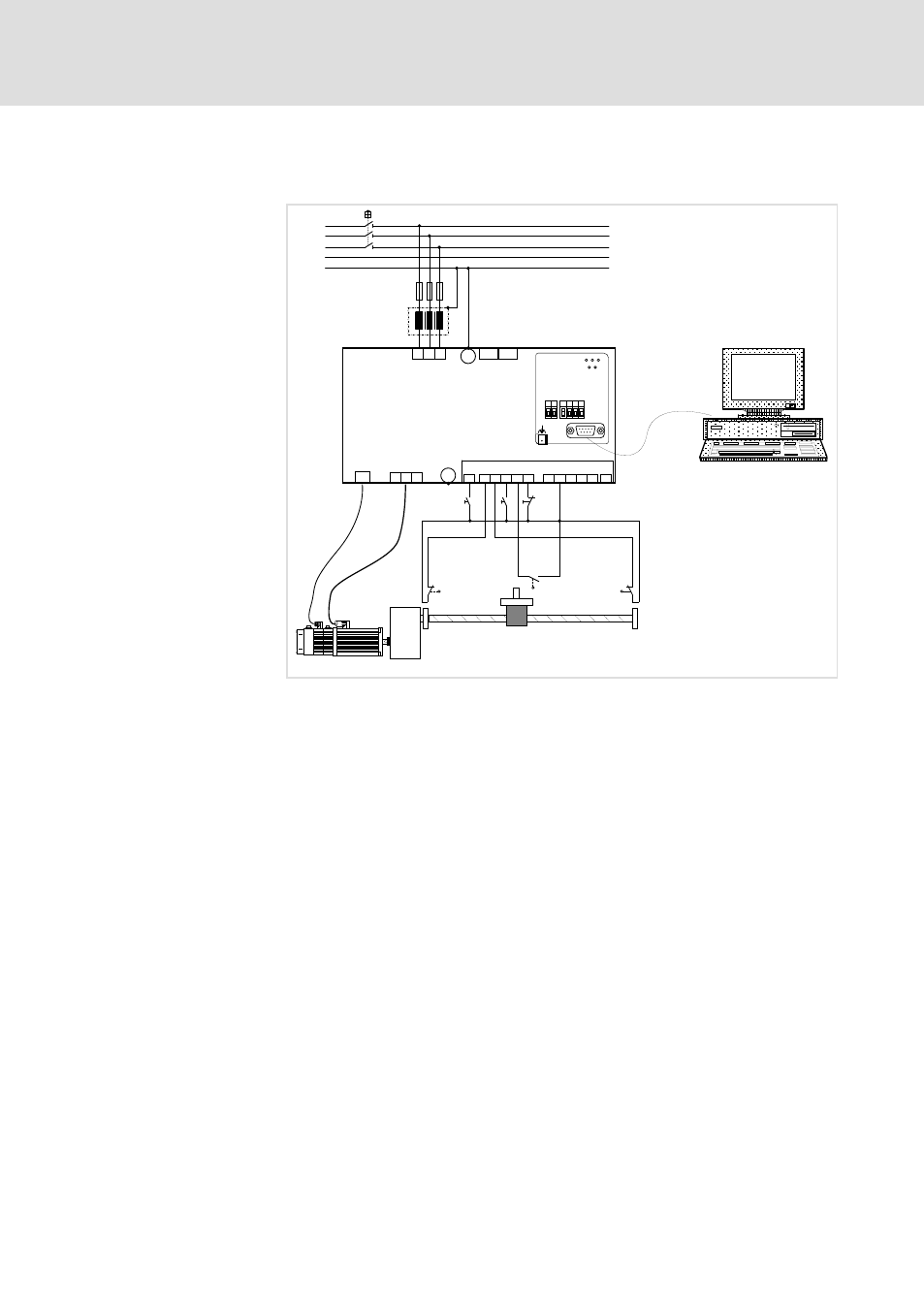

Fig. 6.16−1 Example of drive control with Lenze setting
S1 Limit switch for negative traversing direction (system protection)
S2 Limit switch for positive traversing direction (system protection)
S3 Start positioning program
S4 Home mark for reference run
Tip: Set X5/E4 = HIGH if no home mark is available.
S5 Changeover from positioning operation to manual operation
Example
