Commissioning
Basic settings
Motor selection list
6
6.5
6.5.5
l
6.5−8 EDSVS9332P EN 5.0−07/2013
Motor data Motor nameplate data
C0076 C0075 C0071 C0070 C0091 C0090 C0089 C0088 C0087 C0085 C0084 C0081 C0022 C0086 Field
T ni V pi T nn V pn cos j U r
[V]
f r
[Hz]
I r
[A]
n r
[rpm]
L s
[mH]
R s
[ W]
P r
[kW]
Imax
[A]
Type C86
1003 MDSKA−56−22 50 6.75 1.57 2.25 6.5 6000 4.50 202 280 0.72 3 50 1.3 1.5
1004 MDSKS071−33−39 112 5.10 0.95 7.2 34.5 780 3.40 39 325 1.00 3 20 2.5 1.5
1005 MDSKS071−33−41 112 2.25 0.45 16.3 68 820 1.50 41 330 1.00 2 20 2.5 1.5
1076 MDSKS071−33−90 112 5.85 1.60 3.67 17.7 1800 3.90 90 310 1.00 10 20 0.7 1.7
1077 MDSKA−71−22 51 2.18 0.33 35.7 131.8 725 1.45 30 360 0.78 10 70 1.5 2
1103 SDSGA056−22 50 1.20 0.24 29.3 123 2790 0.80 100 390 0.71 14 150 0.35 1.8
1104 SDSGA056−22 40 2.55 0.24 29.3 123 2790 1.70 100 230 0.71 14 150 0.35 1.8
1105 SDSGA063−22 50 1.80 0.40 29.3 123 2800 1.20 100 390 0.70 14 150 0.35 1.8
1106 SDSGA063−22 40 3.15 0.40 29.3 123 2800 2.10 100 230 0.70 14 150 0.35 1.8
1107 SDSGA063−32 50 2.55 0.60 29.3 123 2800 1.70 100 390 0.70 14 150 0.35 1.8
1108 SDSGA063−32 40 4.50 0.6 29.3 123 2800 3 100 230 0.70 14 150 0.35 1.8
1109 MDSKS056−23−280 114 8.00 1.10 6.72 8.34 5600 2.30 280 320 1.00 10 20 1.3 1.5
1110 MDSKS056−23−310 114 9.00 1.10 5.42 6.78 6200 2.30 310 320 1.00 10 20 1.3 1.5
1111 MDSKS056−33−300 114 10.00 1.75 3.31 4.62 6000 3.60 300 320 1.00 10 20 1.3 1.5
1112 MDSKS056−33−265 114 8.00 1.72 4.1 5.73 5300 3.60 265 320 1.00 10 20 1.3 1.5
1113 MDSKS071−13−265 114 23.00 3.20 0.54 2.56 5300 7.00 265 320 1.00 10 20 1.3 1.5
1116 MDSKS071−33−270 114 25.00 5.70 0.38 1.91 5400 12.50 270 320 1.00 10 20 1.3 1.5
The following table lists all asynchronous motors which can be selected
under C0086.
In the "Asynchronous motor reference list" you can find the asynchronous
motors for which the motor data must be entered manually. (
¶ 6.5−9)
0 1
9300VEC058

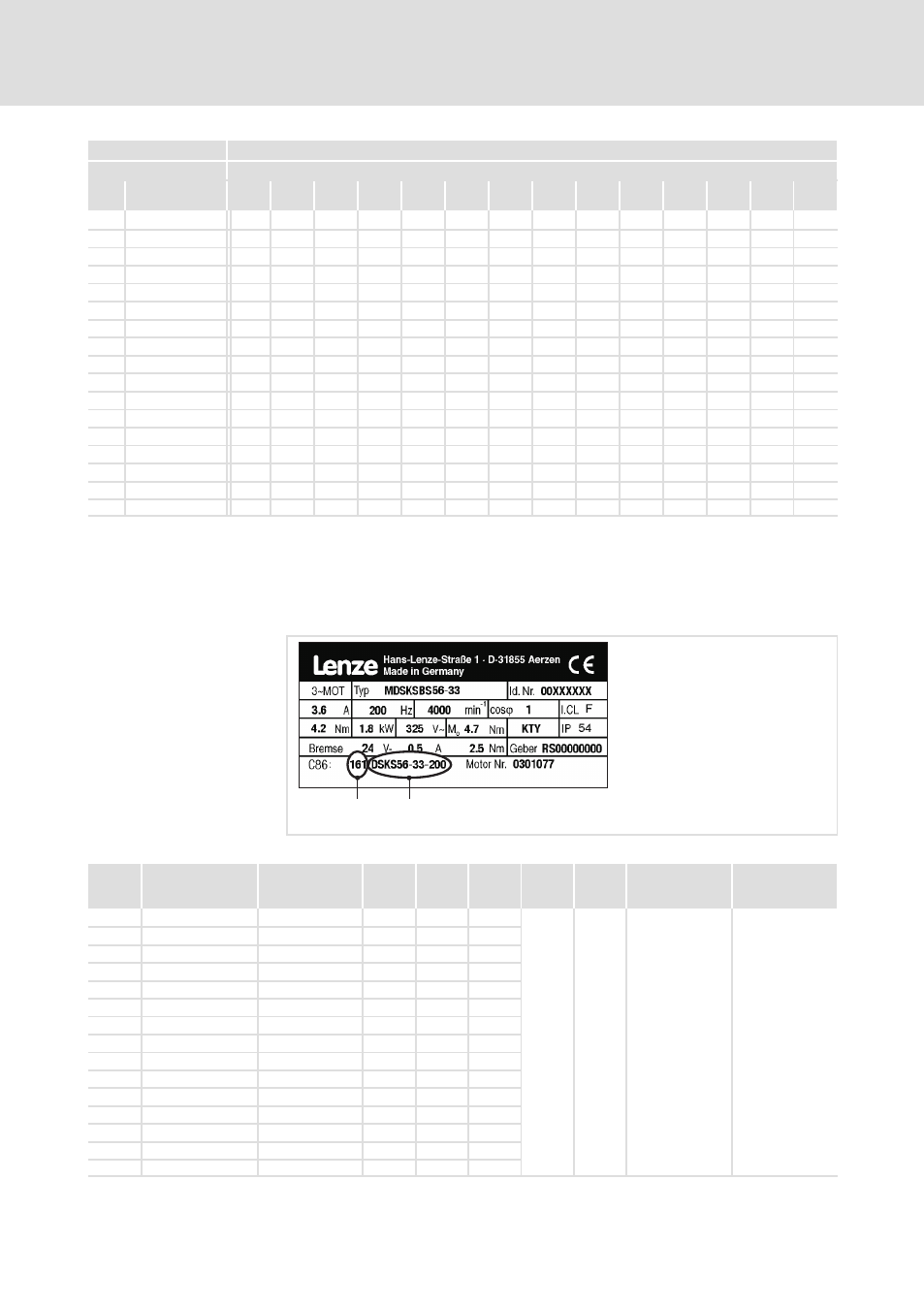

Fig. 6.5−8 Nameplate of a Lenze motor
0 1 Lenze type C0081
P
r
[kW]
C0087
n
r
[rpm]
C0088
I
r
[A]
C0089
f
r
[Hz]
C0090
U
r
[V]
Motor type Temperature sensor
210 DXRAXX071−12−50 DXRAXX071−12 0.25 1410 0.9
50 400
Asynchronous
inverter motor
(star connection)
Thermal contact
211 DXRAXX071−22−50 DXRAXX071−22 0.37 1398 1.2
212 DXRAXX080−12−50 DXRAXX080−12 0.55 1400 1.7
213 DXRAXX080−22−50 DXRAXX080−22 0.75 1410 2.3
214 DXRAXX090−12−50 DXRAXX090−12 1.10 1420 2.7
215 DXRAXX090−32−50 DXRAXX090−32 1.50 1415 3.6
216 DXRAXX100−22−50 DXRAXX100−22 2.20 1425 4.8
217 DXRAXX100−32−50 DXRAXX100−32 3.00 1415 6.6
218 DXRAXX112−12−50 DXRAXX112−12 4.00 1435 8.3
219 DXRAXX132−12−50 DXRAXX132−12 5.50 1450 11.0
220 DXRAXX132−22−50 DXRAXX132−22 7.50 1450 14.6
221 DXRAXX160−12−50 DXRAXX160−12 11.00 1460 21.0
222 DXRAXX160−22−50 DXRAXX160−22 15.00 1460 27.8
223 DXRAXX180−12−50 DXRAXX180−12 18.50 1470 32.8
224 DXRAXX180−22−50 DXRAXX180−22 22.00 1456 38.8
Three−phase asynchronous
motors
