Commissioning
Basic settings
Entry of motor data
6
6.5
6.5.4
l
6.5−3 EDSVS9332P EN 5.0−07/2013
6.5.4 Entry of motor data
1
2
3
0

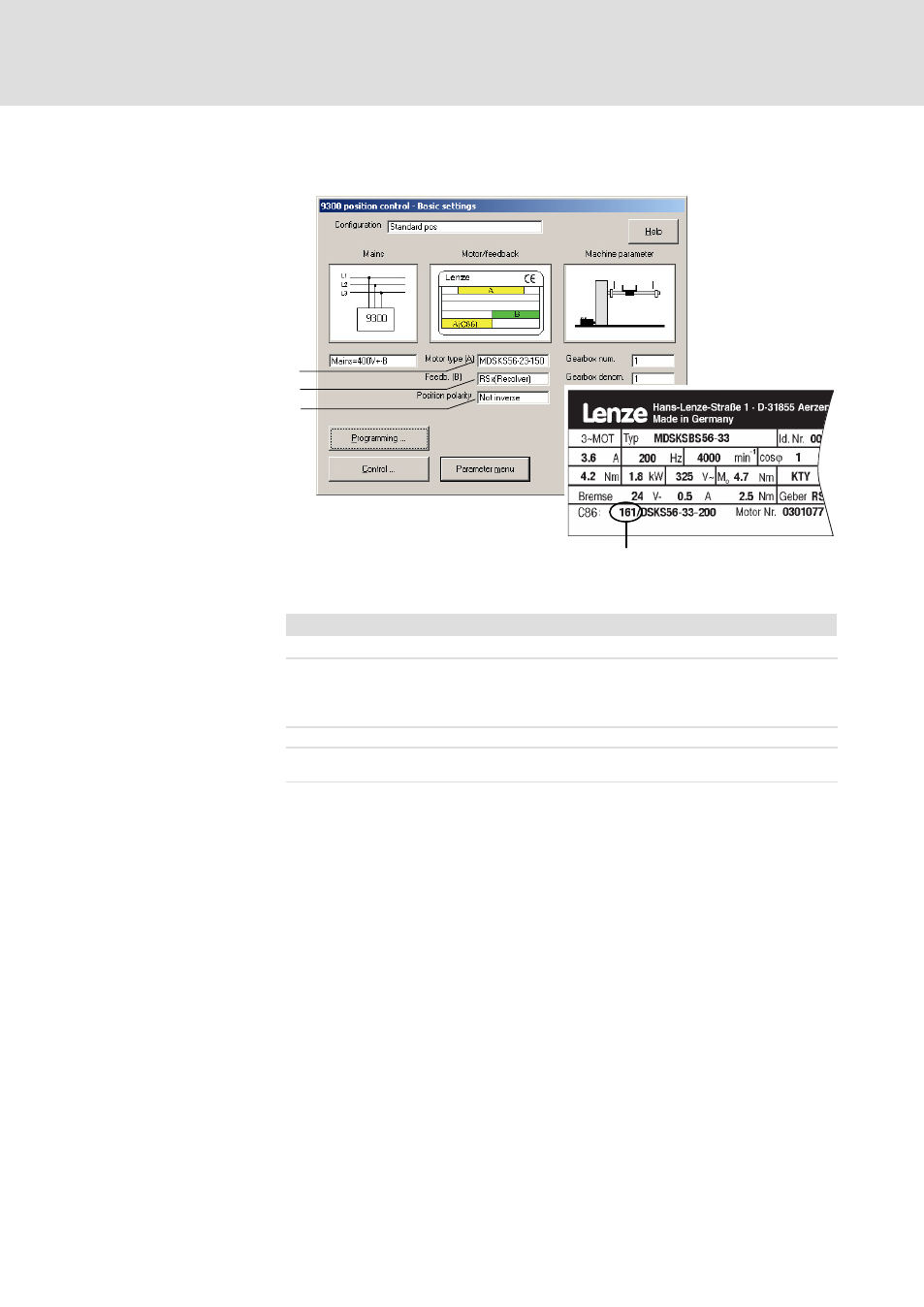

Fig. 6.5−4 "Basic settings" dialog box
Procedure
1. Open the "Basic settings" dialog box.
2. Click into field (1) and select the motor connected.
Just select the number 0 specified on the nameplate of the motor from the open field.
Note!
A list of the motors available can be found in the chapter "Motor selection list".
^ 6.5−6
3. Click into field (2) and select the feedback system used.
4. Click into field (3) and define the position polarity.
If "Inverted" is set, the travelling direction of the drive is inverted.
For Lenze motors:
