Travel profile parameters
Entering parameters
6
6.11
6.11.3
l
6.11−5 EDSVS9332P EN 5.0−07/2013
For entering the parameter data easily and quickly, the positioning program
is provided with editing tools.
1 1 2
3
8
7
6
5
4
0
1
2
4
3

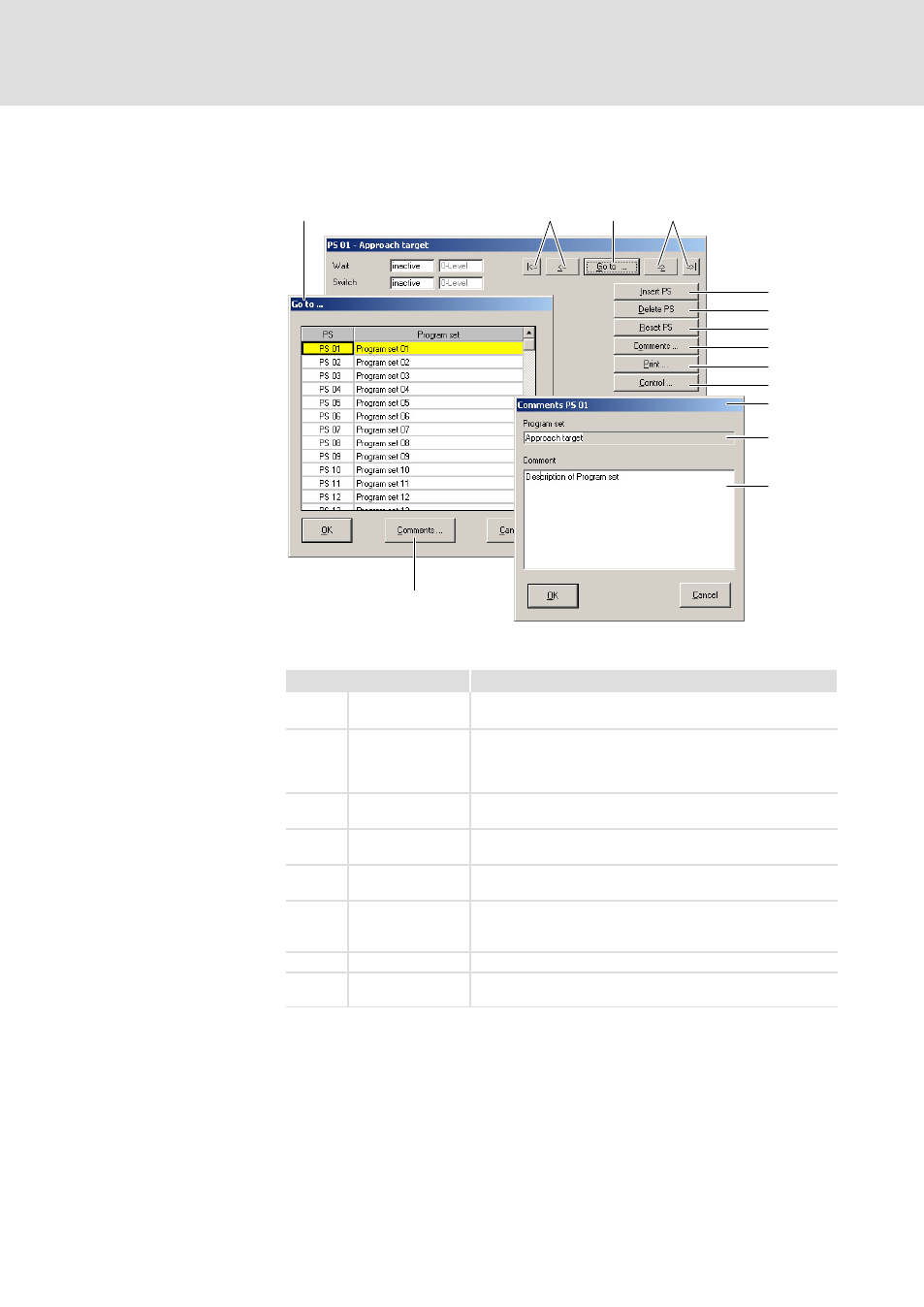

Fig. 6.11−5 "Positioning program" dialog box
Function Description
1 Browse PS Select the previous or next program set or skip to the first or
last program set.
2, 4 Select PS Click the "Go to ..." button to open dialog box 4. Select the PS
for processing in the dialog box. Open the "Documentation"
dialog box for the PS selected, if required via the
"Documentation..."
3 button (see function 6).
3 Insert PS Inserts a new PS at this position and shifts all following PS one
position to the back. The last PS is deleted.
4 Delete PS Deletes the current PS and shifts all following PS forwards by
one position.
5 Reset PS Resets all parameters of the current PS or of all PS to the
default setting.
6, 0, 3 Write comments on
the PS Documentation of the current PS. In dialog box 0, a name 1
can be assigned to the PS, and an explanatory text can be
added as a comment
2.
7 Print PS Provide current or all PS to a printer.
8 Select "Control"
dialog box Direct change to the "Control" dialog box, e.g. to test
modifications in manual operation.
^ 6.10−2)
Editing tools
