Wiring of the standard device
Wiring of the feedback system
SinCos encoder at X8
5
5.10
5.10.4
l
5.10−4 EDSVS9332P EN 5.0−07/2013
5.10.4 SinCos encoder at X8
Field Values
Connection at drive controller Connector: Pin, 9−pole, Sub−D
Connectable SinCos encoders l SinCos encoders with a rated voltage from 5 V... 8 V.
l SinCos encoder of the company Stegmann with Hiperface ®
interface, Stegmann type SCS/SCM (prolongs the
initialisation time of the controller to approx. 2 seconds)
Sine and cosine track voltage 1 V
ss
±0.2 V
Voltage RefSIN and RefCOS +2.5 V
Internal resistance R
i
221 W
Internal voltage source
(X8/4, X8/5) 5 V DC / max. 200 mA

SIN
COS
0.5 V
0.5V
RefCOS
RefSIN = 2.5 V
= 2.5 V
SIN
V
CC
GND
Z
+KTY
-KTY
1
2
3
4
5
6
7
8
9
COS
X8
l < 50 m
RefCOS
RefSIN
Z
KTY
9300STD330

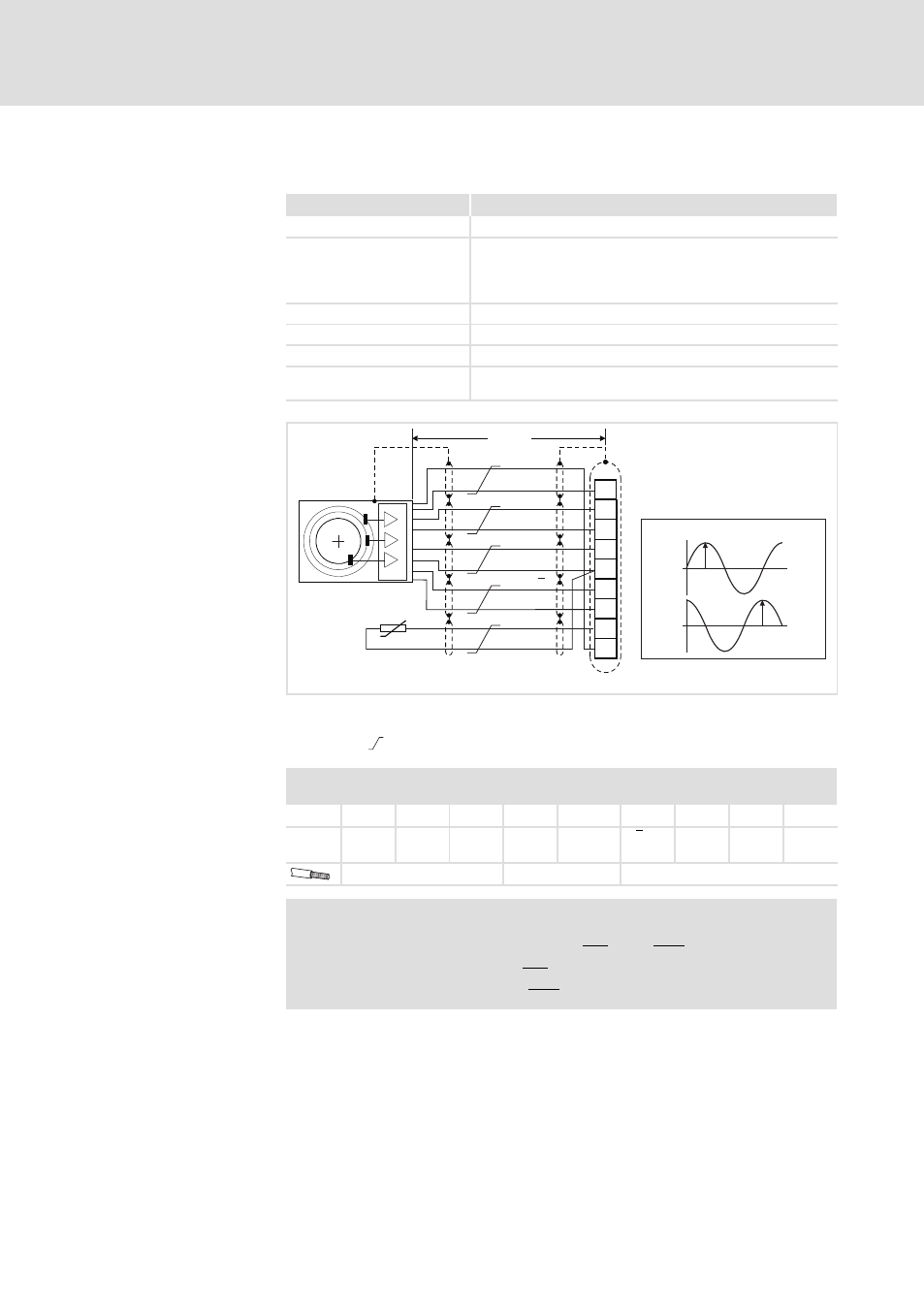

Fig. 5.10−3 SinCos encoder connection
 Signals for CW rotation
Cores twisted in pairs
X8 − SinCos encoder
Connector: Pin, 9−pole, Sub−D
Pin 1 2 3 4 5 6 7 8 9
Signal SIN RefCOS COS V
CC
GND
(−KTY)
Z or
−RS485
Z or
+RS485
+KTY RefSIN
0.14 mm 2 (AWG 26) 1 mm 2 (AWG 18) 0.14 mm 2 (AWG 26)
)
Note!
ƒ For encoders with tracks SIN, SIN, COS, COS:
– Assign RefSIN with SIN.
– Assign RefCOS with COS.
Technical data
Wiring
