Wiring of the standard device
Standard devices in the power range 0.37 ... 11 kW
Motor connection
5.4
5.4.6
l
5.4−10
EDSVS9332P EN 5.0−07/2013
PE
PE
U
U
V
V
W
W
T1
T1
T2
T2
U, V, W
T1, T2
0.5...0.6 Nm
4.4...5.3 lb-in
U, V, W
T1, T2
0.5...0.6 Nm
4.4...5.3 lb-in
2
2
3
3
1
1
0
0
9300std011

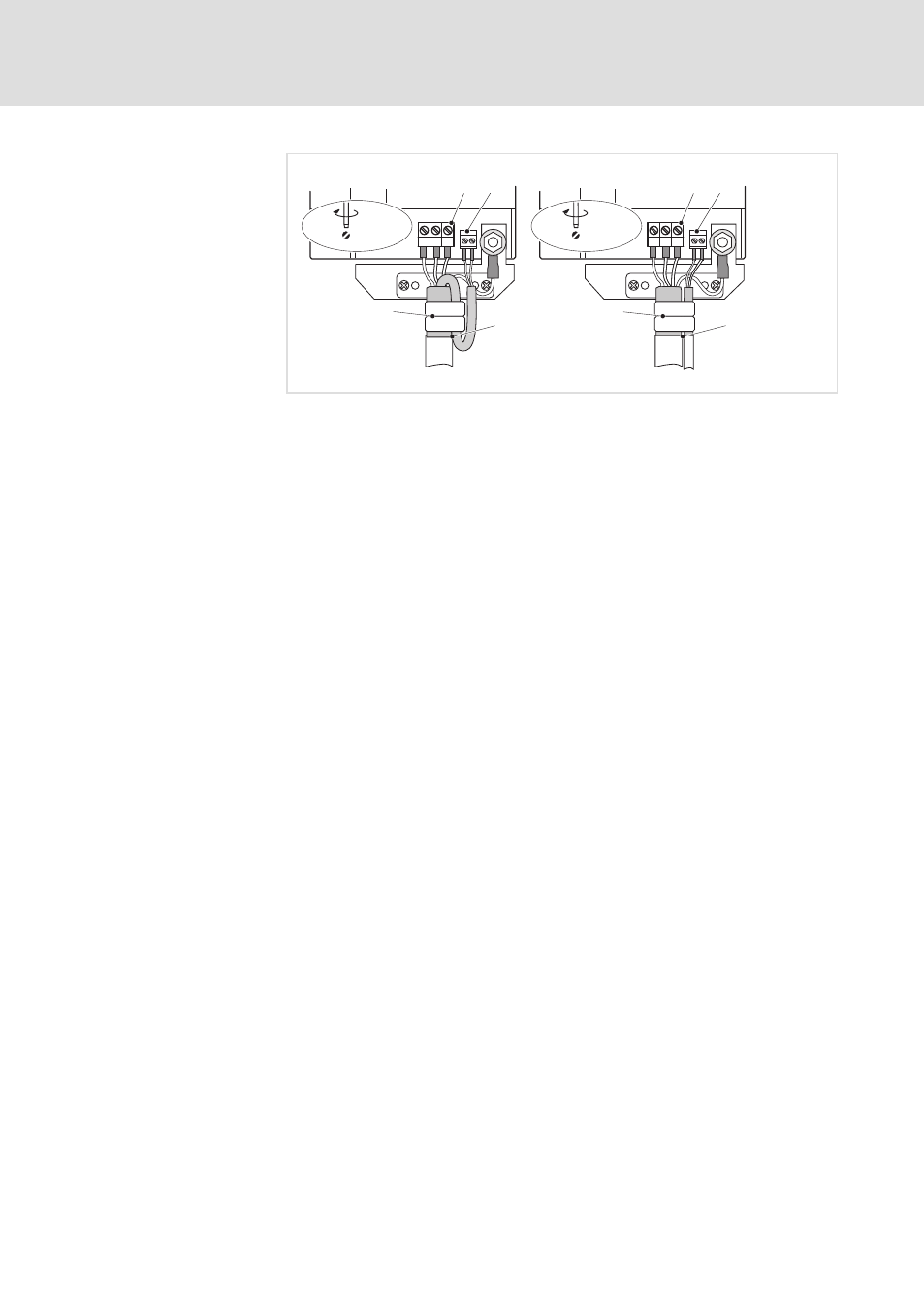

Fig. 5.4−6
Motor connection with PTC thermistor or thermal contact (NC contact)
0 Motor connection with Lenze system cable with integrated control
cable for the motor temperature monitoring
1 Shield sheet
Clamp entire shield and shield of the control cable for the motor
temperature monitoring with the straps. If required, fix by means of
cable tie.
0 Motor cable connection and separate control cable for the motor
temperature monitoring
1 Shield sheet
Clamp shield of the motor cable and shield of the cable for the motor
temperature monitoring with the straps. If required, fix by means of
cable tie.
2 U, V, W
Motor cable connection
Check the correct polarity. Observe maximum length of the motor cable. Use
wire end ferrules for flexible cables.
Max. connectable cable cross−section: 4 mm
2
, with pin−end connector
> 4 mm
2
3 T1, T2 for motor temperature monitoring
Cable connection for PTC thermistors or thermal contacts (NC contacts)
