11.29 Model 644E-42/944E-42 Rev. 6/04
Transfer Carriage
7. Close and lock the engine compartment cover.
8. Remove the Accident Prevention Tag on both the
ignition switch and steering wheel.
c. Transfer Carriage Bearing Replacement
1. Level the vehicle, place the travel select lever in the
(N) NEUTRAL DETENT position, engage the
parking brake.
2. Move the transfer carriage all the way forward.

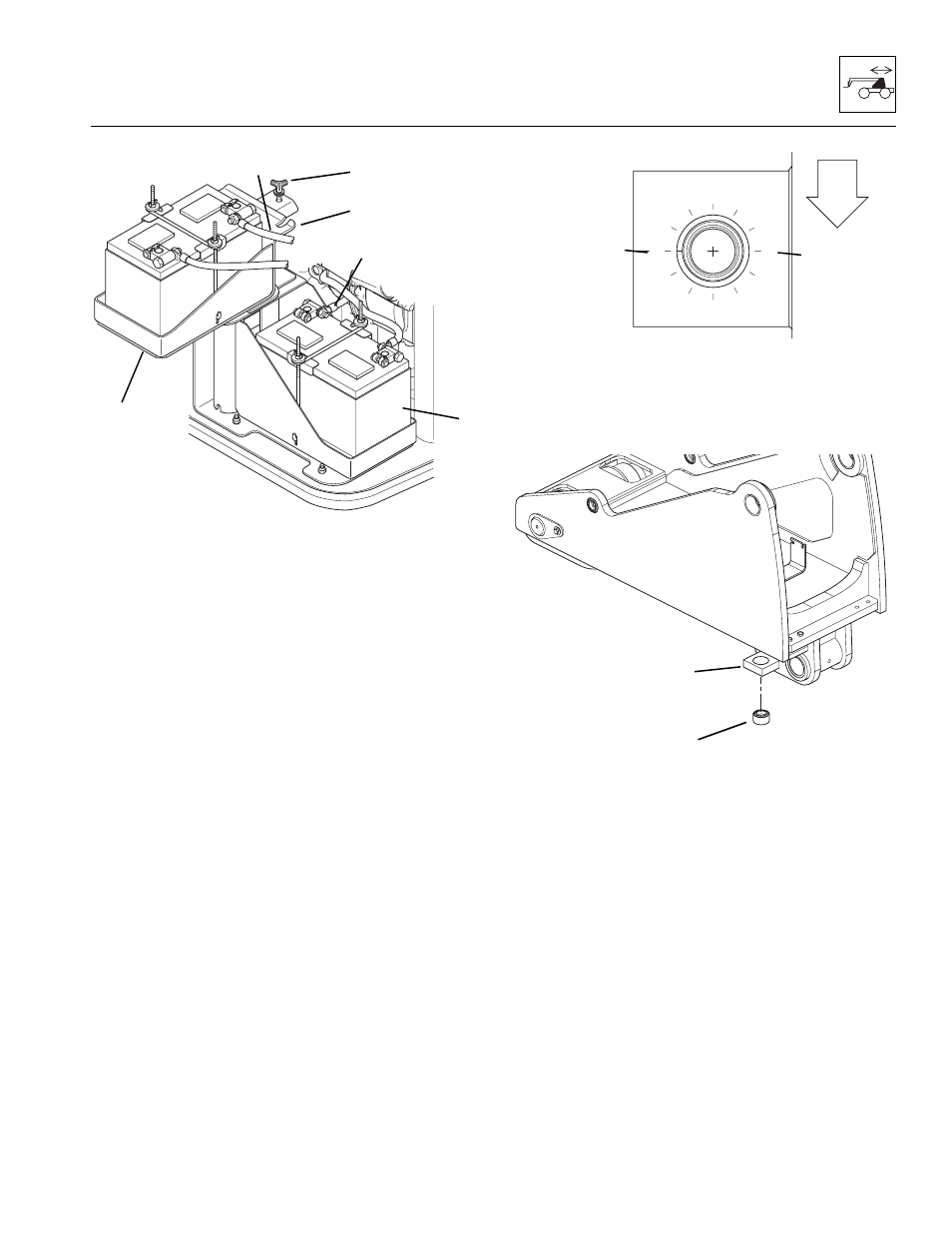

3. If the vehicle has dual batteries, disconnect both
negative battery cables (10 and 11) from both
batteries.
To access the lower battery (12), loosen the
knob (15) far enough so that the lip (14) on the upper
battery box clears the knob. Lift up the upper battery
box (13) and swing it out, so that the box clears the
hydraulic tank support bracket, to gain access to the
lower negative battery cable (10). Disconnect the
lower negative battery cable.
Note: When new transfer cylinder bearings (18) are
installed in the transfer carriage, the fracture in the
bearing race must be positioned perpendicular (16) to
the force of the load. The fracture in the bearing face
must be positioned at the 9 o’clock (16) or 3 o’clock (17)
position. The 12 o’clock and 6 o’clock positions are the
direction the transfer carriage moves forward and
reverse on the rails and is the force of the load.
4. From under the vehicle remove the transfer cylinder
bearing (18) from the transfer carriage mount (19).
5. Replace a new transfer cylinder bearing (18) into the
transfer carriage mount (19).
6. If the vehicle has dual batteries, connect both
negative battery cables (10 and 11) to both
batteries.
Connect the lower negative battery cable (10) to the
negative (-) terminal on the lower battery (12). Swing
the upper battery box (13) in and make sure that the
lip (14) on the upper battery box slides below the
knob (15). Secure in place with the knob (15).
MU0650
10
11
12
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
Front
MU5560
16
17
MU3400
18
19
