Lull 944E-42 Service Manual - Manual (Page 257)

8.5 Model 644E-42/944E-42 Rev. 6/04
Hydraulic System
8.1 HYDRAULIC COMPONENT
TERMINOLOGY
To understand the safety, operation, and service
information presented in this section, it is necessary that
the operator/mechanic be familiar with the name and
location of the hydraulic components of the vehicle. The

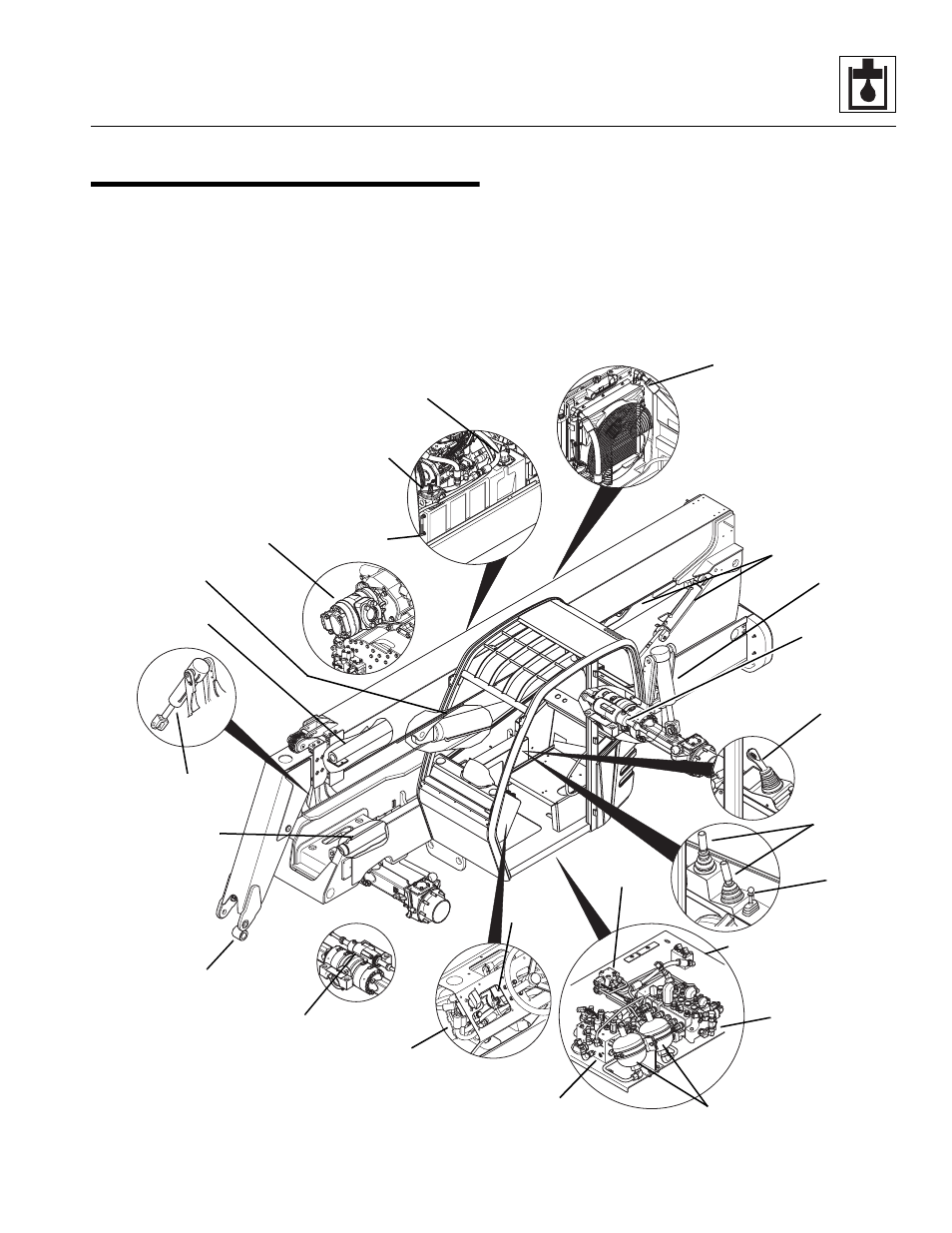

following illustration identifies the components that are
referred to throughout this section.
MU0331
Extend/Retract
Cylinder
Lift/Lower
Cylinder
Slave
Cylinders
Attachment
Tilt Cylinder
Stabilizer
Cylinder
Hydraulic
Filter
Fill
Cap
Steer Select
Valve
Hydraulic
Reservoir Gear
Pump
Frame Sway
Cylinder
Oil
Cooler
Steering
Cylinder
(Rear)
Dual
Joystick
Valves
Power
Steering
Valve
Steering
Cylinder
(Front)
Main
Control
Valve
Accumulator Charge/
Secondary Function
Valve
Accumulators
Transfer Carriage
Cylinder
Valve Plate
Assembly
Pilot Select
Valve
Single
Joystick
Valve
Frame
Sway
Valve
