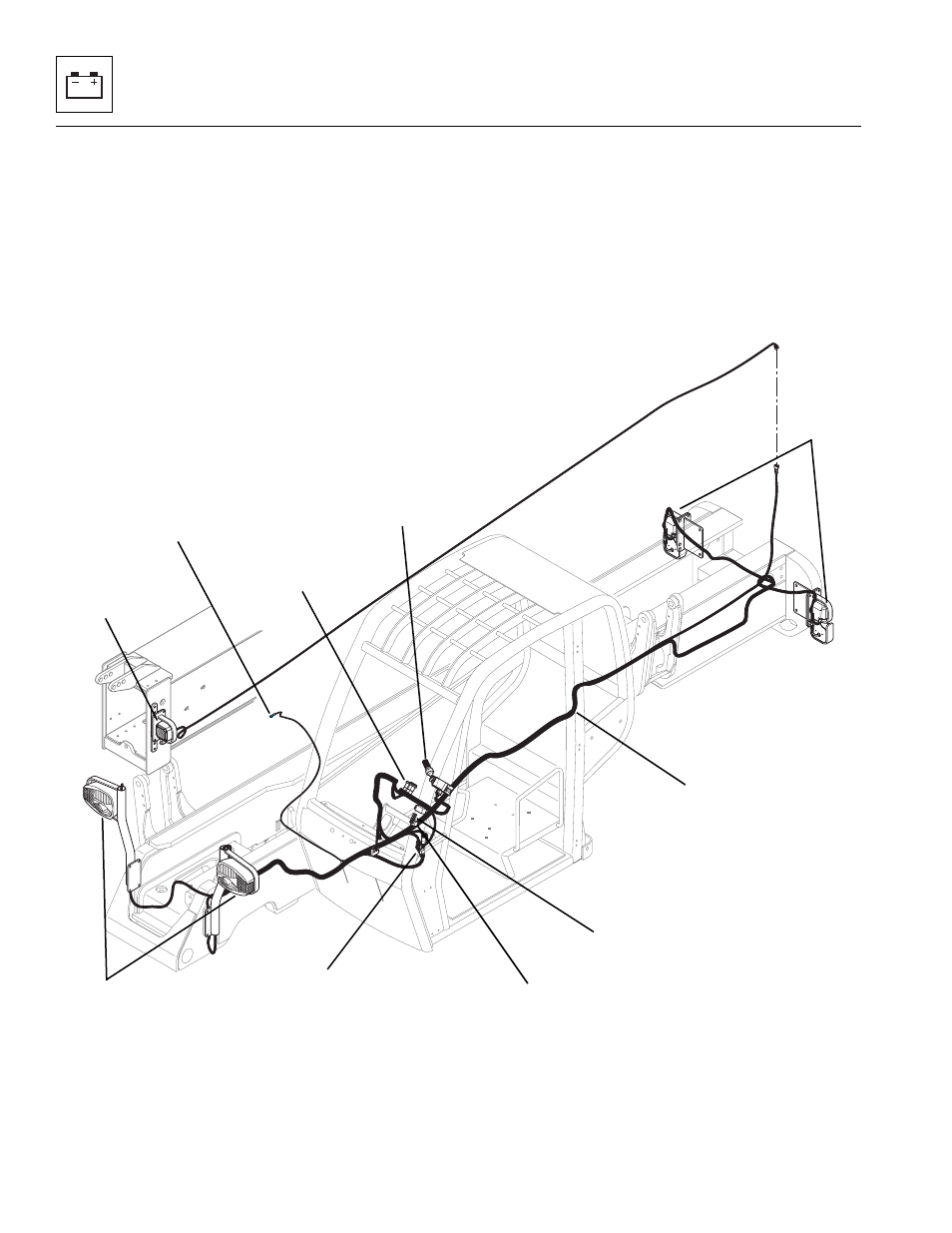

9.1.10 General Overview (Optional Roadlight Harness)
MU6010
Roadlight
Harness
Front
Headlights &
Turn Signals
Boom
Worklight
Rear
Worklights
Lighting
Fuses
Light Power
Relay
Brake
Switch
Worklight &
Hazard Light
Switches
Parking,
Headlight & Turn
Signal Control
Roadlight
Harness Engine
Ground
