Cab and Covers
4.6 Model 644E-42/944E-42 Rev. 6/04
c. Transmission Travel and Gear Select Lever
Removal
1. Park the vehicle on a firm, level surface. Level the
vehicle, ground the attachment, place the travel
select lever in the (N) NEUTRAL DETENT position,
engage the parking brake switch and shut the
engine OFF.
2. Unplug the wiring connector (1) on the underside of
the transmission travel and gear selector lever.
3. Remove the two screws (2) securing the
transmission travel and gear selector lever assembly
to the steering column.
4. Remove the transmission travel and gear selector
lever (3) and collar (4).
d. Transmission Travel and Gear Select Lever
Installation
1. Position the transmission travel and gear select
lever (3) onto the steering column, aligning the
pin (5) with the hole (6) in the steering column.
2. Attach travel and gear select lever with the collar (4)
and two hex socket-head screws (2). Tighten the
screws and nuts securely, but DO NOT overtighten.
Overtightening will cause the select lever to break.
3. Plug the wiring connector (1) into the receptacle (7)
on the underside of the transmission travel and gear
selector lever.
e. Turn Signal Select Lever (Optional) Removal
1. Park the vehicle on a firm, level surface. Level the
vehicle, ground the attachment, place the travel
select lever in the (N) NEUTRAL DETENT position,
engage the parking brake switch and shut the
engine OFF.
2. Remove the five screws (8) securing the left dash
panel (9) and unplug the turn signal electrical
connectors (10).
3. Remove the two screws (11) securing the
transmission travel and gear selector lever (12),
shims (13), and turn signal selector lever
assembly (14) to the steering column.

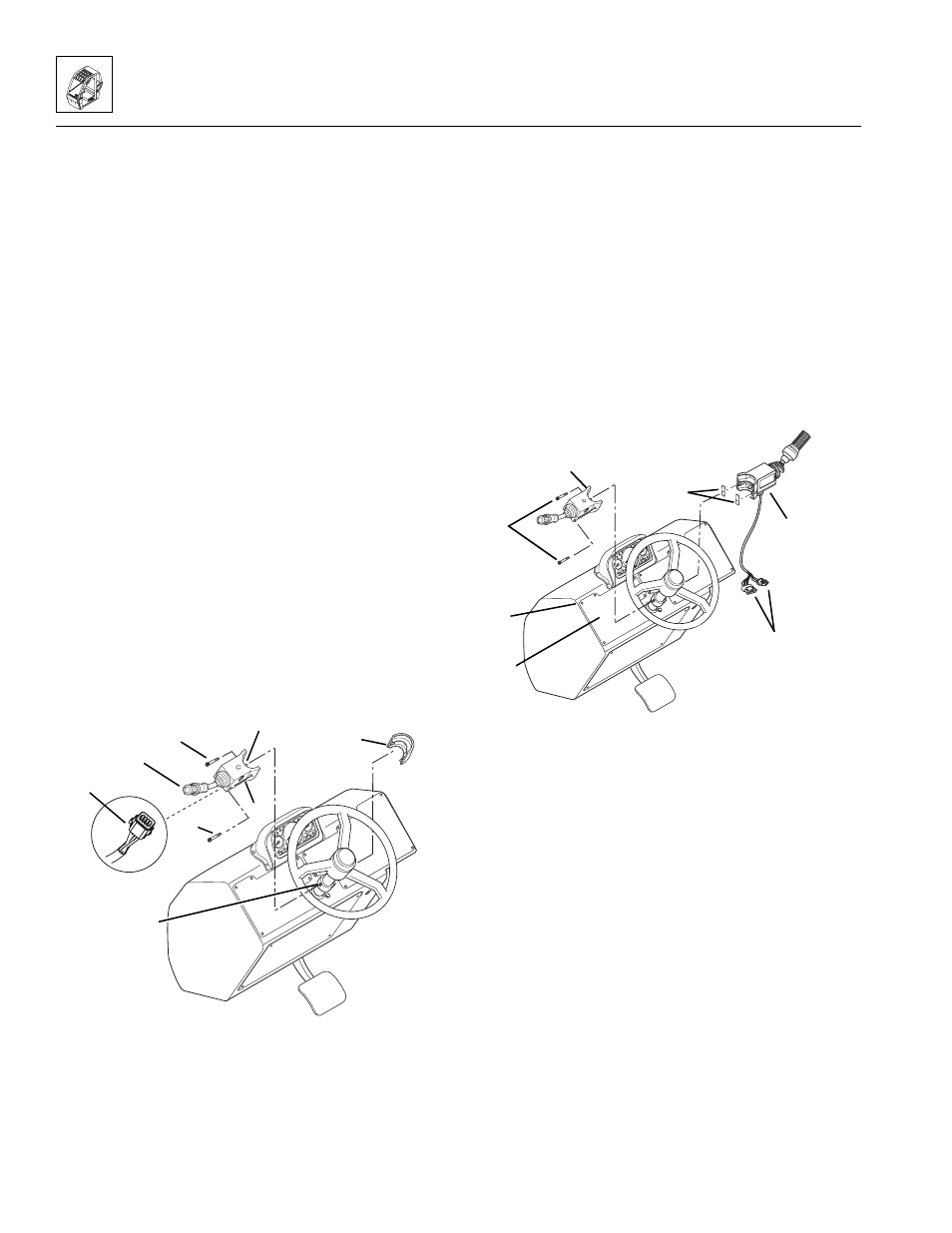

MU2030
4
5
6
2
1
2
7
3
8
9
10
14 11
~
12
13
