9.185 Model 644E-42/944E-42 Rev. 6/04
Electrical System

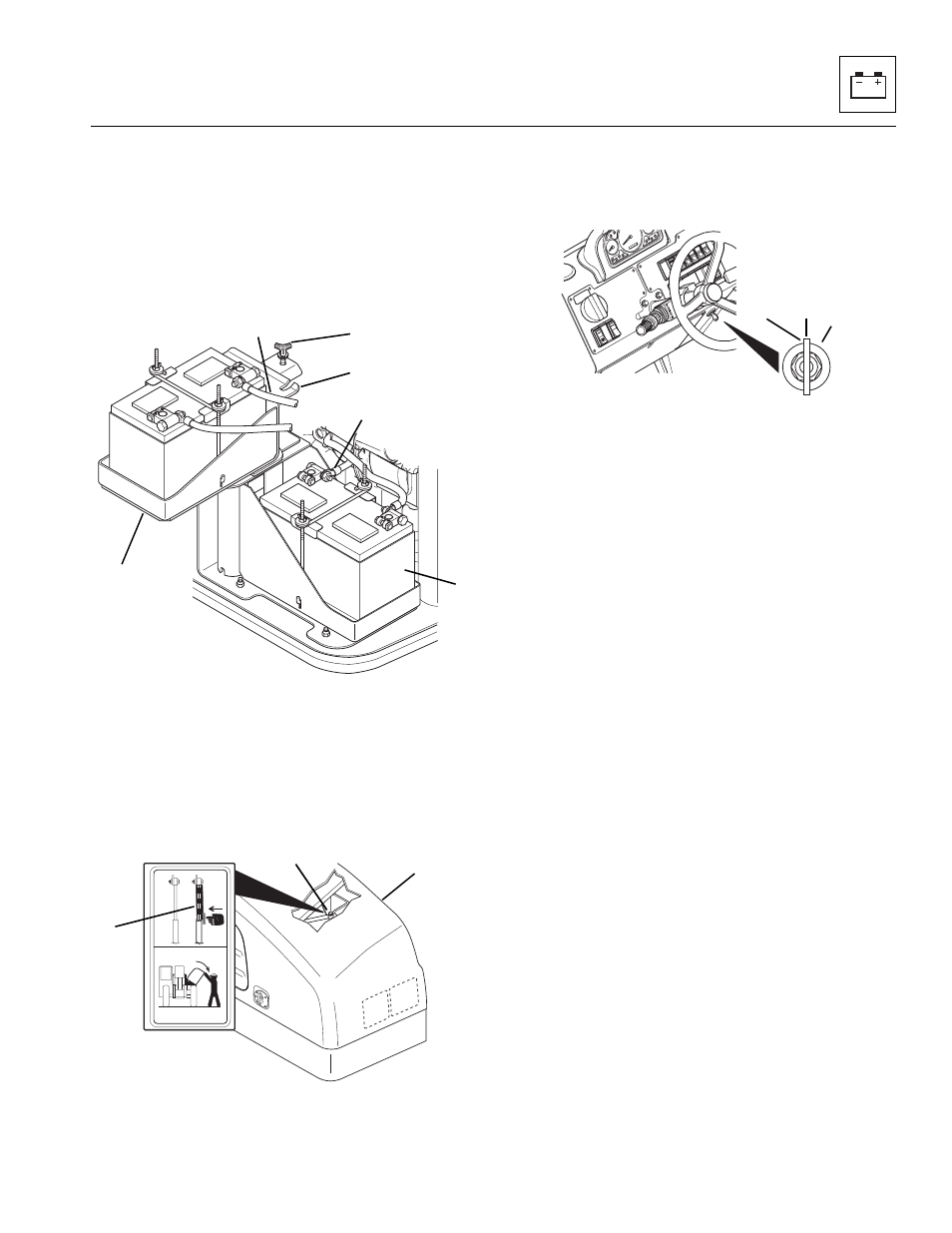

14. If the vehicle has dual batteries, connect both
negative battery cables (15 and 16) to both
batteries.
Connect the lower negative battery cable (15) to the
negative (-) terminal on the lower battery (17). Swing
the upper battery box (18) in and make sure that the
lip (19) on the upper battery box slides below the
knob (20). Secure in place with the knob.
15. Lower and lock engine cover. To release and lower
the engine cover (21) from the fully raised position,
lift up slightly on the cover and push the upper part
of the right gas shock (22) (orange tab) to the left.
Line up the upper part of the shock lock tube with the
lower part of the gas shock and pull the cover down
to the closed position.
Front Dash Panel Test
Check the following as the ignition switch (23) is turned to
the RUN position (24):
1. All lights must illuminate for a minimum of 3
seconds.
2. An audible alarm must sound for a minimum of
3 seconds.
3. Low brake pressure, alternator and engine oil
pressure lights must stay illuminated after three
seconds.
Note: If the park brake switch is engaged, the park
brake indicator light will also stay illuminated.
4. Turn the ignition switch (23) to the OFF (25) position.
