9.13.6 Windshield Washer Switch

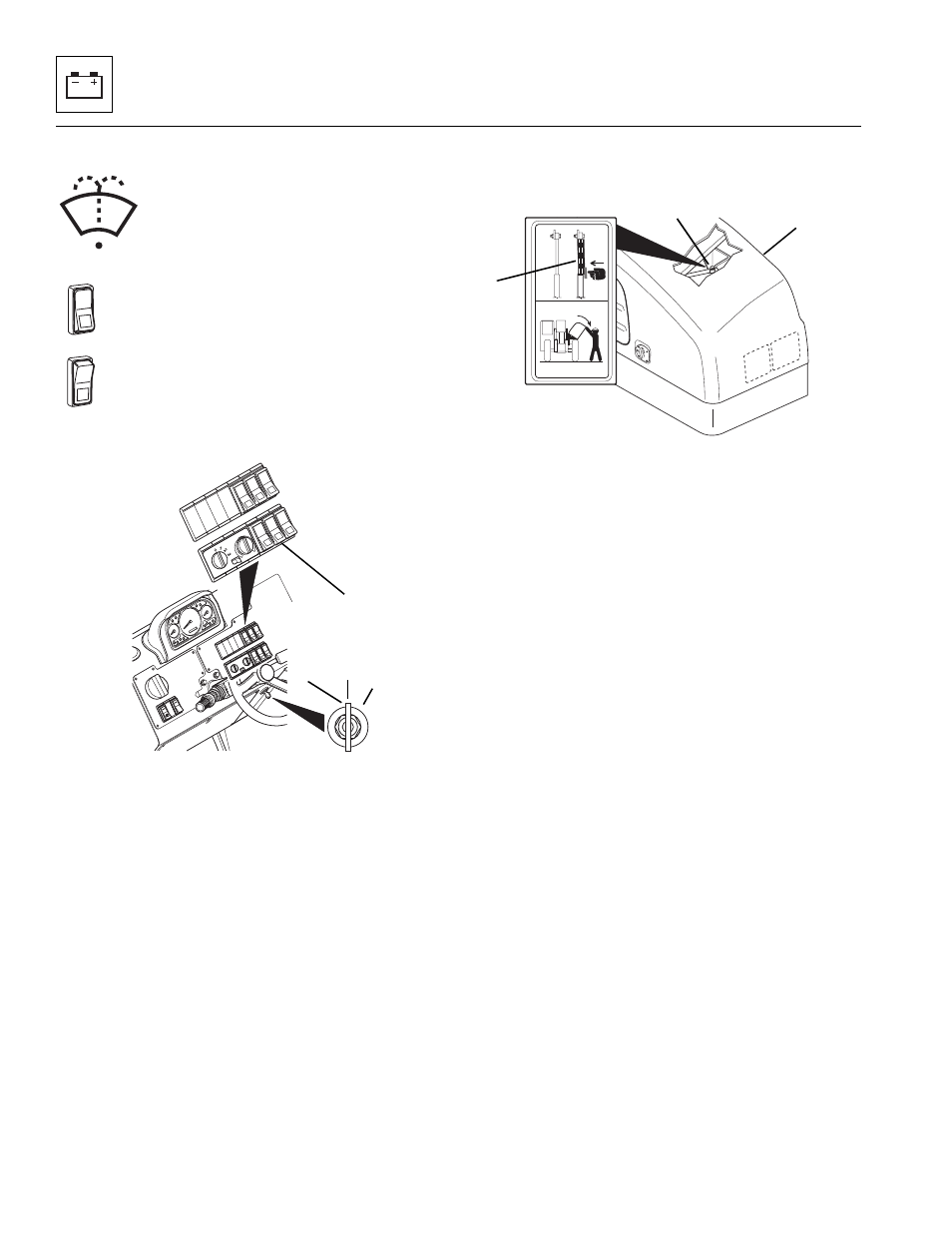

This rocker switch (1) is spring loaded to
return to the OFF position when released.
The switch is located in the lower bank of
switches on the right side of the dash.
•Release the switch to deactivate the
washer control.
•Press and hold the BOTTOM of the rocker
switch in to activate the windshield
washer. The rocker switch is spring
loaded and will return to the OFF position
when released.
a. Removal
1. Unlock and open the engine cover (5).
2. If the vehicle has dual batteries, disconnect both
negative battery cables (7 and 8) from both
batteries.
To access the lower battery (9), loosen the knob (10)
far enough so that the lip (11) on the upper battery
box clears the knob. Lift up the upper battery box (12)
and swing it out, so that the box clears the hydraulic
tank support bracket, to gain access to the lower
negative battery cable (7). Disconnect the lower
negative battery cable.
