9.23 Model 644E-42/944E-42 Rev. 6/04
Electrical System

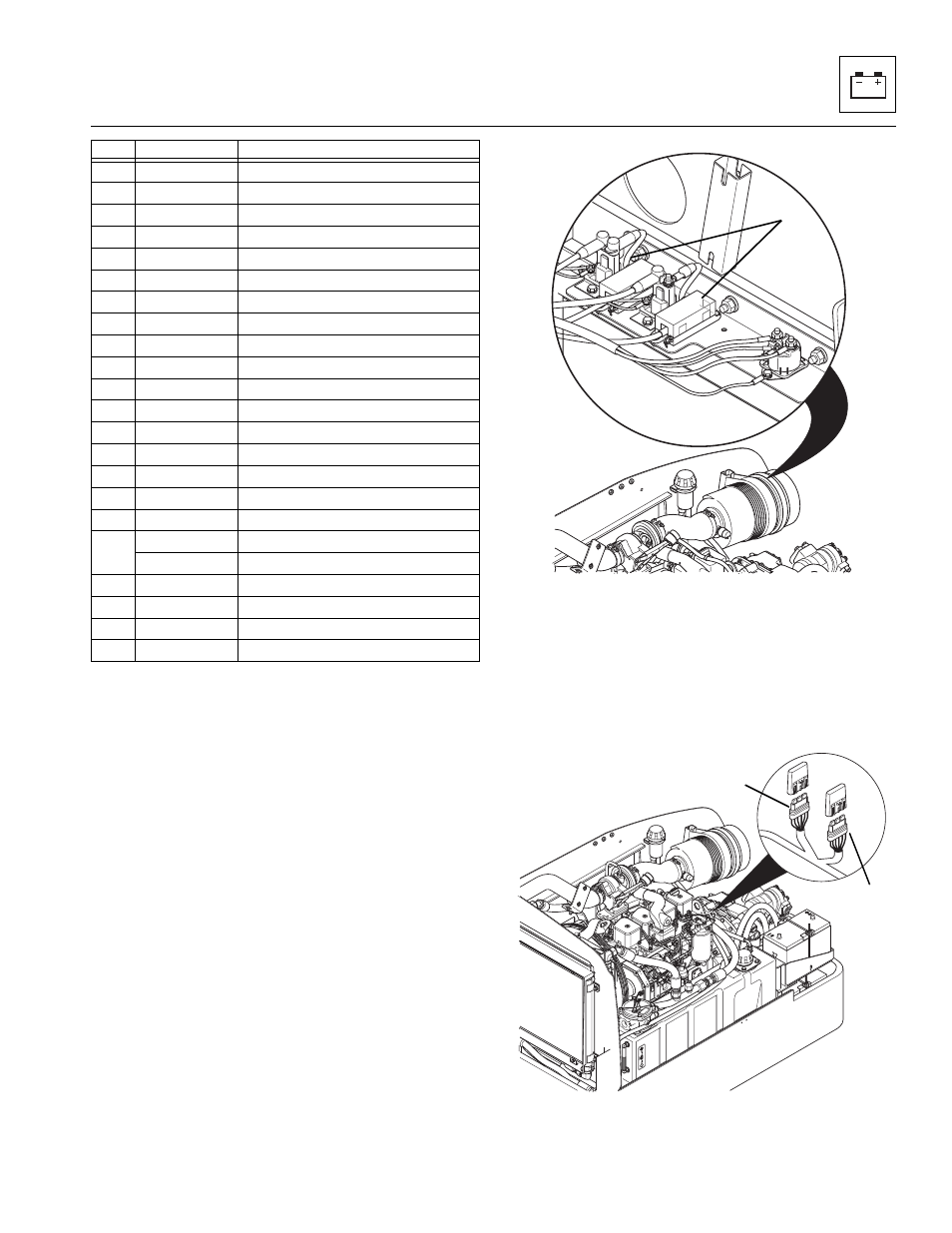

d. 944E-42 Engine Compartment Fuse Locations
Cold Start Grid Heater Fuses
The two 125 amp fuses (5) that protect the cold start grid
heater are located under the engine hood and are
mounted on the lip of the engine panel.
ECM Fuses
The two fuse holders (6) that protect the ECM diagnostic
system are located under the engine hood and are tie
wrapped to the wire harness on the top of the engine bell
housing. One holder contains three 7.5 amp fuses and
the other holder contains three 10 amp fuses.
7 10 Amp Stability Circuit
8 10 Amp Dash
9 – Open
10 5 Amp Auxiliary Hydraulic
11 – Open
12 15 Amp Outriggers (Option, Some Models)
13 – Open
14 3 Amp ECM Indicator Light (944E-42 Only)
15 40 Amp Closed Cab Main (Option)
16 10 Amp Front wiper (Option)
17 25 Amp Heater Fan (Option)
18 7.5 amp Skylight Wiper (Option)
19 7.5 Amp Rear Wiper (Option)
20 10 Amp Beacon/Strobe (Option)
21 7.5 Amp Brake Lights (Option)
22 20 Amp Headlights (Option)
23 15 Amp Turn Signals (Option)
24
20 Amp Roadlight (Option)
30 Amp Worklight (Option)
25 40 Amp Lights Main (Option)
26 25 Amp Condenser Fan (Option)
27 – Open
28 – Open
No. Amp Circuit Protected
MU5420
5
410 830 2
OU1320
6
6
