Note: ALWAYS use new o-rings when servicing the
vehicle.
10. Uncap and install new o-rings into the steering and
brake line fittings (1). Lubricate the o-rings with clean
hydraulic oil.
11. Connect the steering and brake lines at their tube
connections on the chassis. Torque to 12-22 lb-ft
(17-31 Nm)
12. If reinstalling an axle previously removed from the
vehicle, position the driveshaft yoke on the axle
according to the alignment marks made earlier. If
installing a new axle, note the position of the
driveshaft yoke on the transmission. Align the
driveshaft yoke on the axle in the same plane as the
yoke on the transmission.
13. Install the wheel and tire assemblies. (Refer to
Section 5.5.4, “Installing Wheel and Tire Assembly
Onto Vehicle.”)
14. Carefully remove the jack, hoist or overhead crane
and sling supporting the axle.
15. Carefully raise the vehicle using a suitable jack or
hoist. Remove the supports from beneath the frame
and lower the vehicle to the ground.
16. Remove the blocks from the front and rear of both
tires on the other axle.
17. Check wheel end and hydraulic reservoir oil levels.

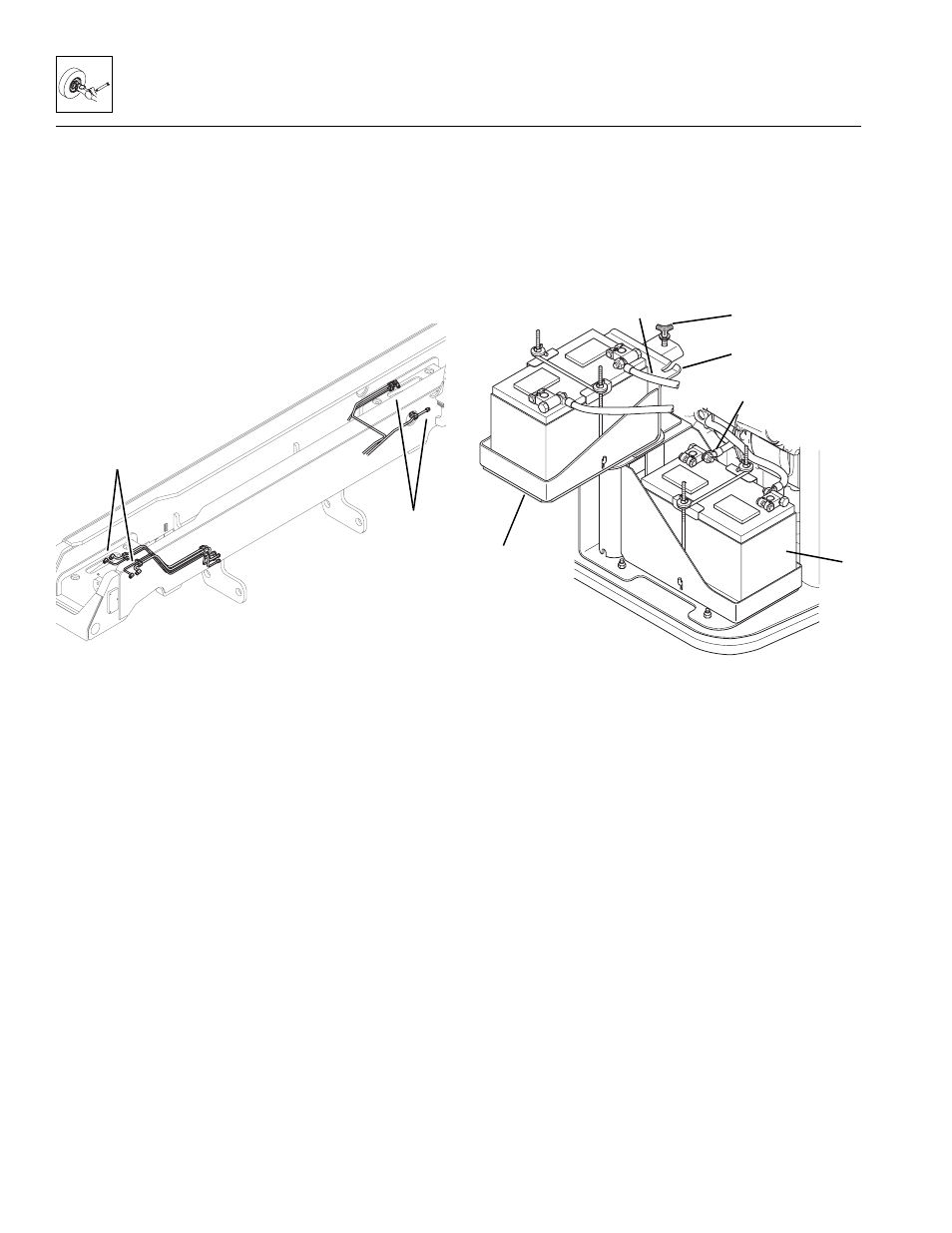

18. If the vehicle has dual batteries, connect both
negative battery cables (2 and 3) to both batteries.
Connect the lower negative battery cable (2) to the
negative (-) terminal on the lower battery (4). Swing
the upper battery box (5) in and make sure that the
lip (6) on the upper battery box slides below the
knob (7). Secure in place with the knob (7).
