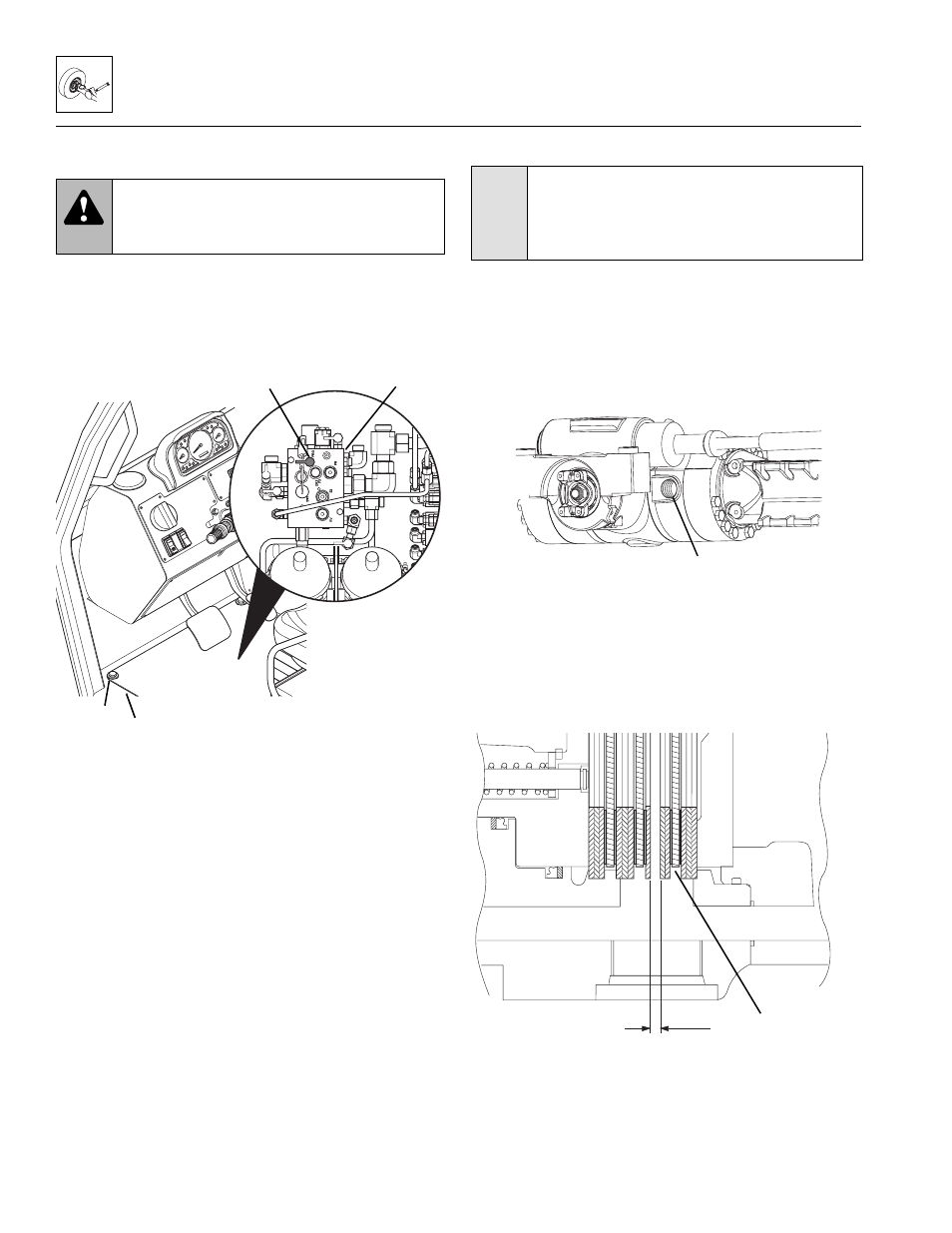

b. Rear Axle
1. Block all four wheels to help prevent the vehicle
from moving after the parking brake is disabled.
2. Remove the four capscrews (1) securing the valve
plate cover (2) to the cab floor. Remove the cover.
3. Attach a remote portable hydraulic pressurizing unit
to the parking brake gauge port (3) on the secondary
function manifold (4) mounted on the valve plate.
Note: DO NOT Turn the key switch to the ON. DO NOT
Release the parking brake switch. Oil pressure will be
lost and Parking Brake will be engaged.
4. Pressurize the parking brake with the pressurizing
unit. Close the needle valve on the pressurizing unit.
5. Working through the level plug hole (5), carefully use
a screwdriver to spread the brake discs apart.
IMPORTANT: DO NOT damage the surfaces of the
brake discs when spreading the brake discs.
6. Using a feeler gauge, check the gap (6) between the
brake discs (7). If the gap is greater than:
644E ....................................0.143" (3,65 mm)
944E ....................................0.143" (3,65 mm)
Replace the brake discs if the gap is greater than
listed above.
